Nylon Wheel Diameter × Wheel Width 75 x 45mm

Picture may differ from original product

1109 Medium Duty/Low Profile Business Machine Caster Series

Nylon Wheel Diameter × Wheel Width 75 x 45mm

TW-4110903004002

Wheel Diameter75mm　3＂

Load Capacity (Dynamic)300kgs　661lbs

Overall Height107mm　4-1/4＂

Wheel BearingWheels With Ball Bearings

Casters with Side Brakes and With locking system. Top Plate Riveted and Stamping.
Zine-Plated, Mounting Type - Top Plate.
Reinforced Polypropylene and Wheel Tread.
Bearings—Ball Bearings.
Wheel tread: Thermoplastic
Wheel Center: Thermoplastic

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

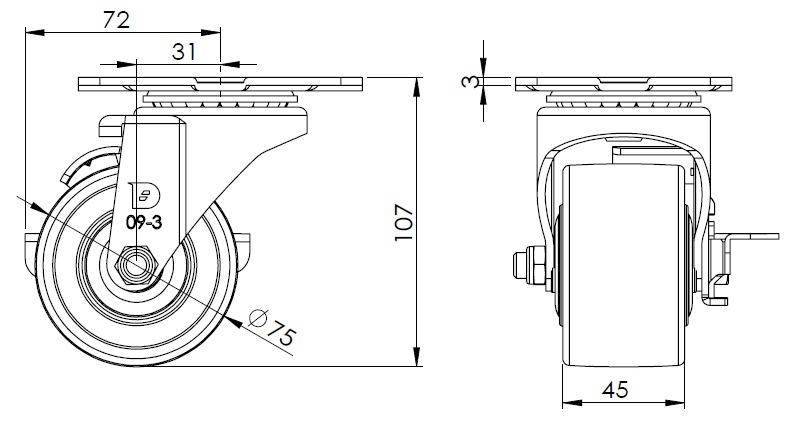

Wheel Diameter: 75mm3＂
Wheel Width: 45mm1-13/16＂
Wheel Bearing: Wheels With Ball Bearings

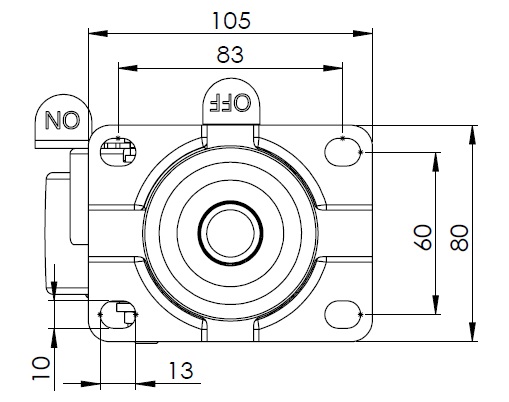

Plate Size: 105 x 80mm4-3/16＂ x 3-3/16＂
Bolt Hole Spacing: 83 x 60mm2-1/4＂x 2-3/8＂
Plate Hole: 13 x 10mm9/16＂ x 3/8＂
Offset: 31mm1-1/4＂
Swivel Interference: 144mm5-3/4＂
Overall Height: 107mm4-1/4＂
Swivel Radius: 72mm2-7/8＂
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 300kgs661lbs
Load Capacity (Static): 450kgs992lbs
Temperature: -20°C to +80°C-4°F to +176°F
Fork Type: Swivel Caster With Side Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.85kgs1.9lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 2

Floor Surface PreservationMax. 5 pointsScore: 2
