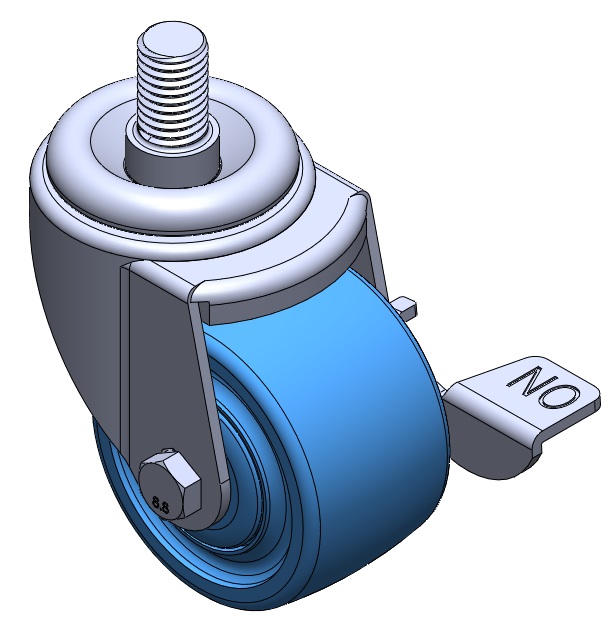

Picture may differ from original product
1109 Medium Duty/Low Profile Business Machine Caster Series
King Kong Wheel Diameter × Wheel Width 75 x 45mm
TW-4110903004021
Wheel Diameter75mm 3＂
Load Capacity (Dynamic)400kgs 882lbs
Overall Height103mm 4-1/16＂ x .
Wheel BearingWheel With Annual Ball Bearing
- Casters with Side Brakes and With locking system. Cylindrical Stem Riveted Pressed Fork with 5/8-11 threads.
- Zine-Plated, Mounting Type - Threaded Stem.
- Reinforced Polypropylene Wheel Center and Wheel Tread.
- Bearings—Ball Bearings.
- Wheel surface: Thermoplastic
- Wheel Center: thermoplastic
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

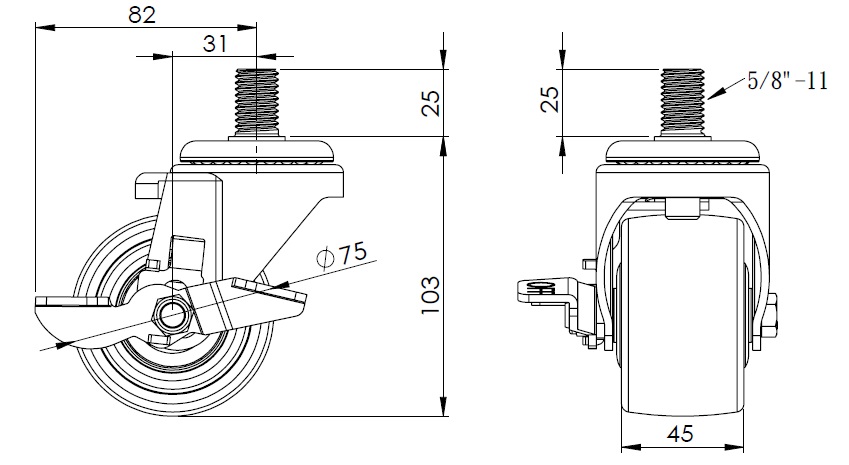

Product Data Sheet
- Wheel Diameter
- 75mm3＂
- Wheel Width
- 45mm1-13/16＂
- Wheel Bearing
- Wheel With Annual Ball Bearing

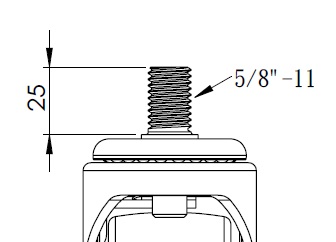

- Threaded Stem
- 5/8＂-11牙5/8＂-11牙
- Threaded Length
- 25mm1＂
- Offset
- 31mm1-1/4＂
- Swivel Interference
- 164mm6-1/2＂
- Overall Height
- 103mm4-1/16＂ x .
- Swivel Radius
- 82mm3-5/16＂
- Hardness Of Tread
- 75±5° Shore D
- Load Capacity (Dynamic)
- 400kgs882lbs
- Load Capacity (Static)
- 600kgs1323lbs
- Temperature
- -20°C to +80°C-4°F to +176°F
- Fork Type
- Swivel Caster With Side Brake
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.80kgs1.8lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
