1109 Medium Duty/Low Profile Business Machine Caster Series
Phenolic wheel Wheel Diameter × Wheel Width 75 x 45mm
TW-4110903004023
Wheel Diameter75mm 3＂
Load Capacity (Dynamic)225kgs 496lbs
Overall Height103mm 4-1/16＂ x .
Wheel BearingWheel With Plain Bearing
- Casters with Side Brakes and With locking system. Threaded Stem Riveted Pressed Fork – 5/8-11 threads.
- Zine-Plated, Mounting Type - Threaded Stem.
- Phenolic Wheel.
- Bearing – Plain Bearing
- Tread: Compressed synthetic resin impregnated with fabric
- Wheel Center: Compressed synthetic resin impregnated with fabric
Product descriptions are for reference only. The actual product shall prevail.

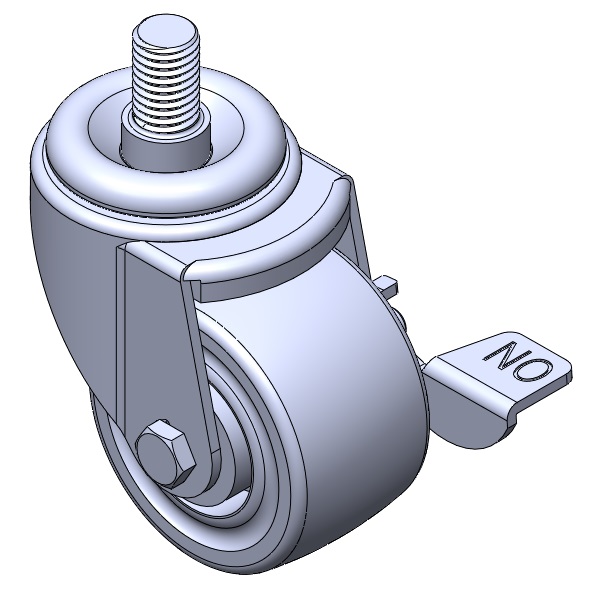

3D drawings are for members only. Please log in to download.

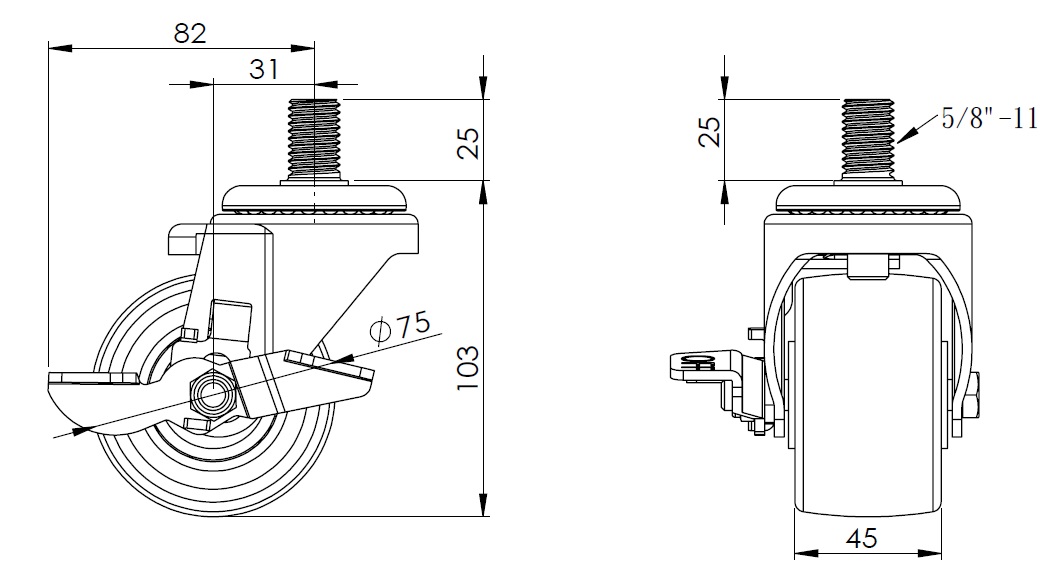

Product Data Sheet
- Wheel Diameter
- 75mm3＂
- Wheel Width
- 45mm1-13/16＂
- Wheel Bearing
- Wheel With Plain Bearing

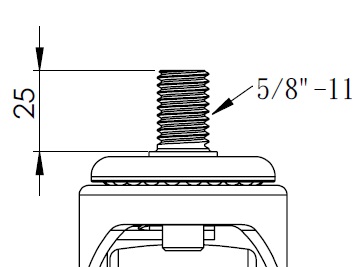

- Threaded Stem
- 5/8＂-11牙5/8＂-11牙
- Threaded Length
- 25mm1＂
- Offset
- 31mm1-1/4＂
- Swivel Interference
- 164mm6-1/2＂
- Overall Height
- 103mm4-1/16＂ x .
- Swivel Radius
- 82mm3-5/16＂
- Hardness Of Tread
- 80±5° Shore D
- Load Capacity (Dynamic)
- 225kgs496lbs
- Load Capacity (Static)
- 337.5kgs744lbs
- Temperature
- -20°C to +150°C-4°F to +302°F
- Fork Type
- Swivel Caster With Side Brake
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.85kgs1.9lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
