MRC (black) Wheel Diameter × Wheel Width 50 × 25 mm

Picture may differ from original product

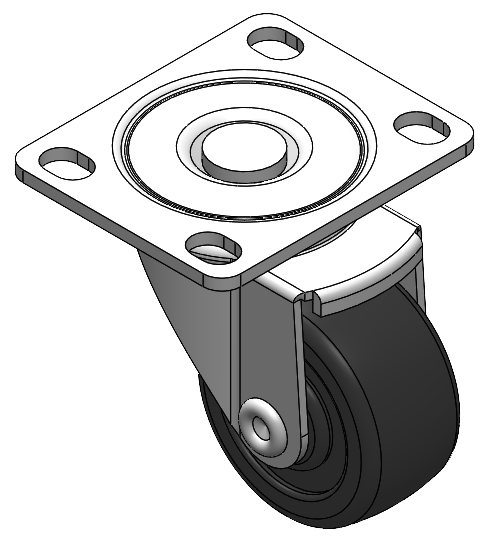

1109 Medium Duty/Low Profile Business Machine Caster Series

MRC (black) Wheel Diameter × Wheel Width 50 × 25 mm

YJ-11090200054013

Wheel Diameter50mm　2＂

Load Capacity (Dynamic)70kgs　154lbs

Overall Height70mm　2-13/16＂

Wheel BearingWheels With Ball Bearings

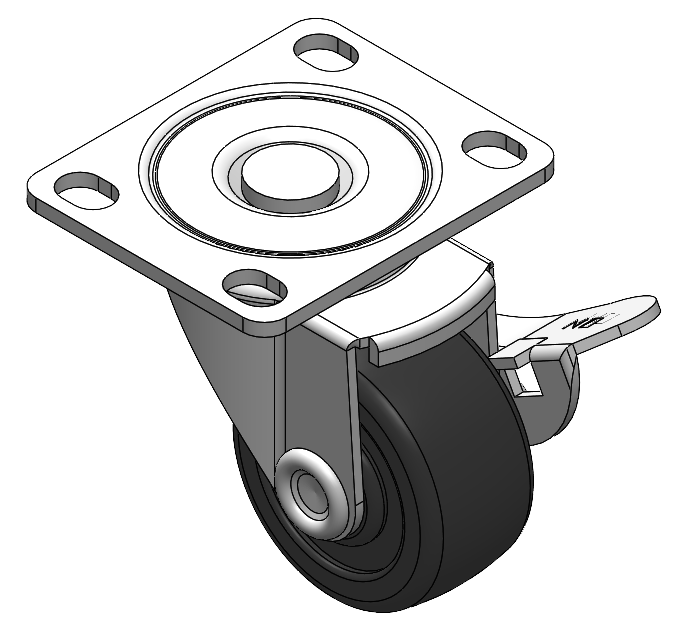

Side Brake Locking system Top Plate Riveted and Stamping - High-Quality
Hole
Zine-Plated, Mounting Type - Top Plate
Reinforced Polypropylene and tread
Black, Bearing - Ball Bearing.
Wheel Tread: Thermoplastic (PA6)
Wheel Center: thermoplastic (PA6)

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

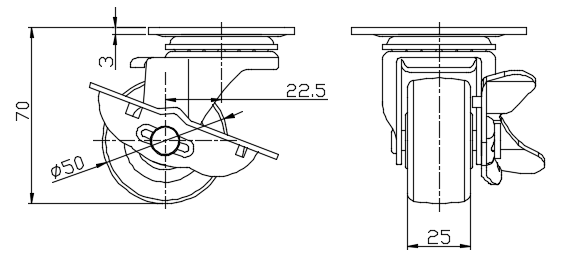

Wheel Diameter: 50mm2＂
Wheel Width: 25mm1＂
Wheel Bearing: Wheels With Ball Bearings

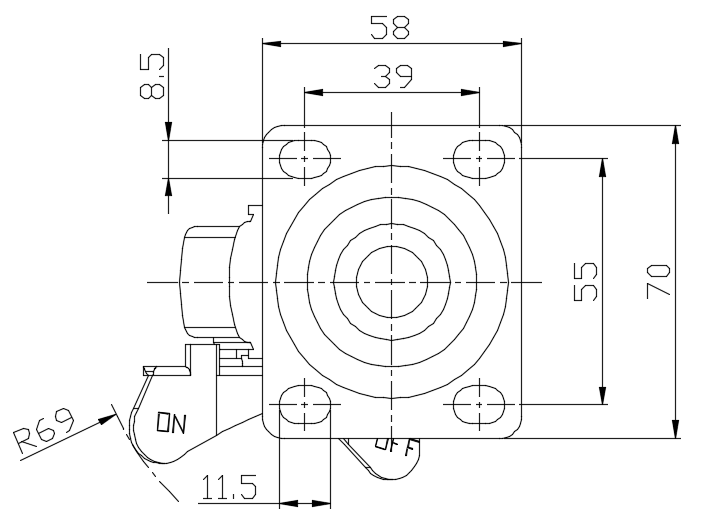

Plate Size: 70 x 58mm2-13/16＂ x 2-5/16＂
Bolt Hole Spacing: 55 x 39mm
Plate Hole: 11.5 x 8.5mm1/2＂ x 3/8＂
Offset: 22.5mm15/16＂
Swivel Interference: 138mm5-1/2＂
Overall Height: 70mm2-13/16＂
Swivel Radius: 69mm2-3/4＂
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 70kgs154lbs
Load Capacity (Static): 105kgs231lbs
Temperature: -20°C to +80°C-4°F to +176°F
Fork Type: Swivel Caster With Side Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.25kgs0.6lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 2

Floor Surface PreservationMax. 5 pointsScore: 2
