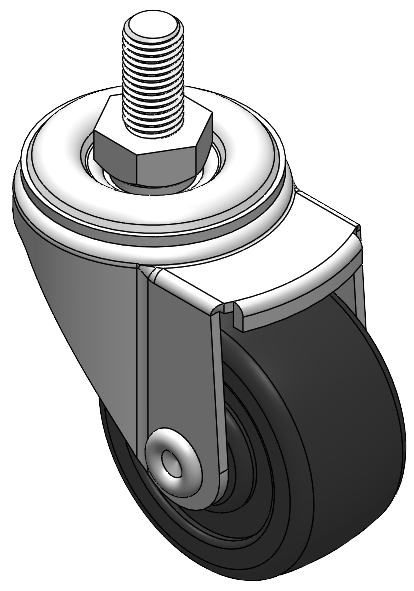

1109 Medium Duty/Low Profile Business Machine Caster Series
MRC (black) Wheel Diameter × Wheel Width 50 × 25 mm
YJ-11090210055023
Wheel Diameter50mm 2＂
Load Capacity (Dynamic)70kgs 154lbs
Overall Height72mm 2-7/8＂
Wheel BearingWheel With Plain Bearing
- Swivel Caster with Riveted Stamping Fork - 3/8" - 16 UNC
- Zine-Plated, Mounting Type - Threaded Stem
- Reinforced Polypropylene core and Wheel Tread
- Black, Ball Bearings.
- Wheel surface: Thermoplastic (PA6)
- Wheel Center: Thermoplastic (PA6)
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

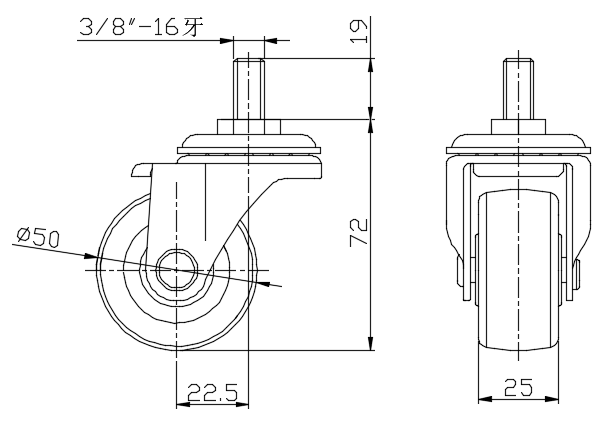

Product Data Sheet
- Wheel Diameter
- 50mm2＂
- Wheel Width
- 25mm1＂
- Wheel Bearing
- Wheel With Plain Bearing
- Threaded Stem
- 3/8＂-16牙3/8＂-16牙
- Threaded Length
- 19mm3/4＂
- Offset
- 22.5mm15/16＂
- Swivel Interference
- 94mm3-3/4＂
- Overall Height
- 72mm2-7/8＂

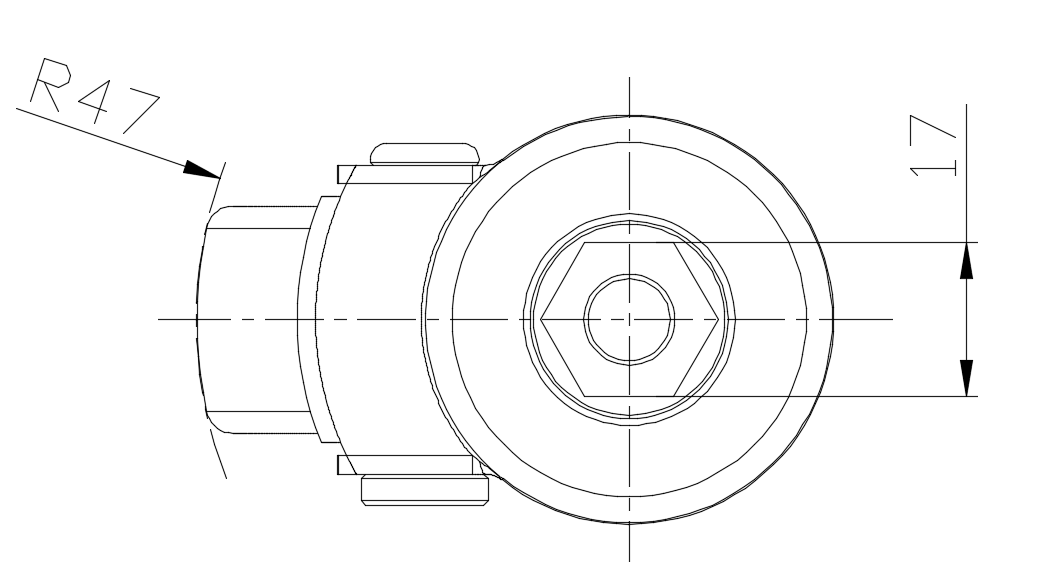

- Swivel Radius
- 47mm1-7/8＂
- Hardness Of Tread
- 75±5° Shore D
- Load Capacity (Dynamic)
- 70kgs154lbs
- Load Capacity (Static)
- 105kgs231lbs
- Temperature
- -20°C to +80°C-4°F to +176°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.24kgs0.5lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
