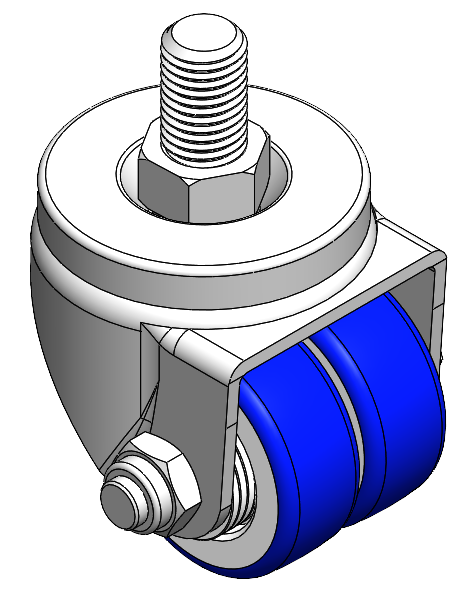

1109 Medium Duty/Low Profile Business Machine Caster Series
ZQPU (Milled Blue) Wheel Diameter × Wheel Width 50× 20（41.5） mm
YJ-11090200805013
Wheel Diameter50mm 2＂
Load Capacity (Dynamic)300kgs 661lbs
Overall Height77mm 3-1/16＂
Wheel BearingWheels With Ball Bearings
- Swivel Caster, thread-Riveted Stamping Fork—M16-P2
- Zine-Plated, Mounting Type - Threaded Stem
- Cast Iron Wheel Center, High Quality Polyurethane tread
- Blue color, Bearing—Ball Bearing.
- Wheel Tread: high quality polyurethane
- Wheel Center: cast iron core
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

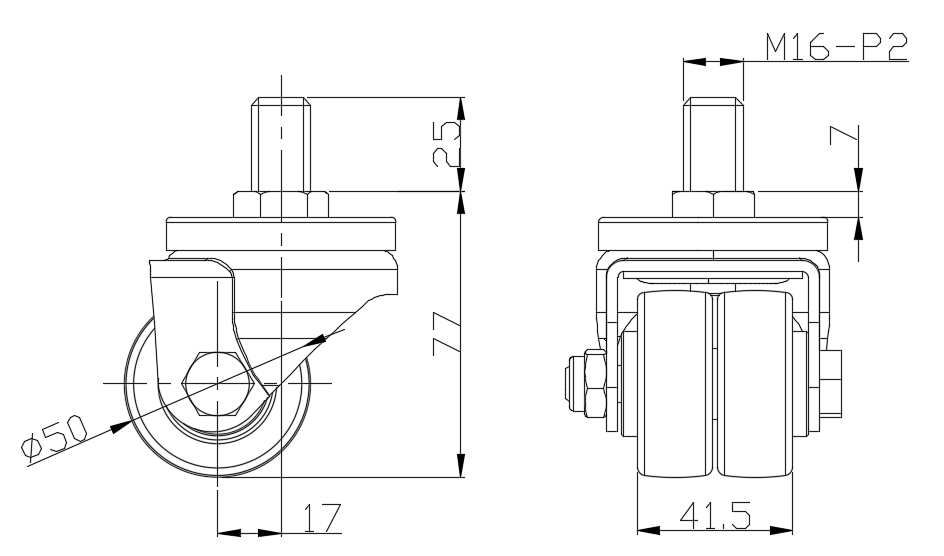

Product Data Sheet
- Wheel Diameter
- 50mm2＂
- Wheel Width
- 41.5mm1-11/16
- Wheel Bearing
- Wheels With Ball Bearings
- Threaded Stem
- M16-P2M16-P2
- Threaded Length
- 25mm1＂
- Offset
- 17mm11/16＂
- Swivel Interference
- 92mm3-11/16＂
- Overall Height
- 77mm3-1/16＂

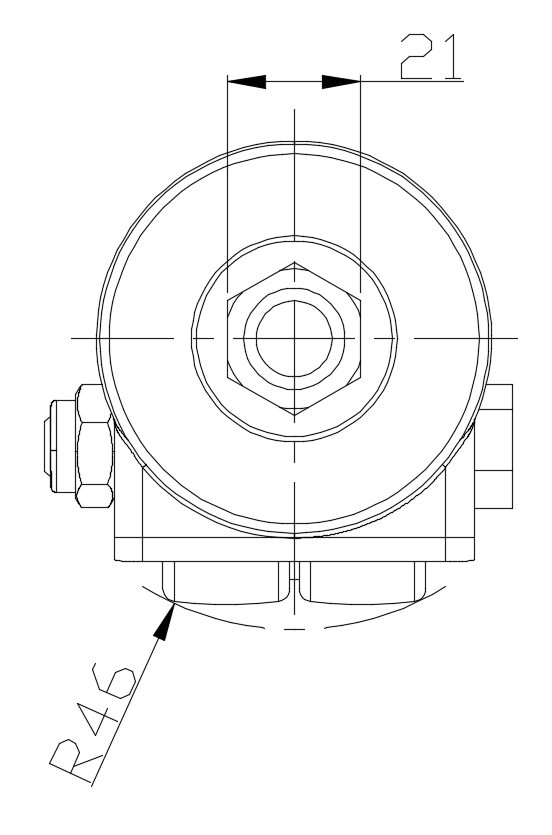

- Swivel Radius
- 46mm1-7/8＂
- Hardness Of Tread
- 87±5° Shore A
- Load Capacity (Dynamic)
- 300kgs661lbs
- Load Capacity (Static)
- 450kgs992lbs
- Temperature
- -20°C to +70°C-4°F to +158°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.7kgs1.5lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
