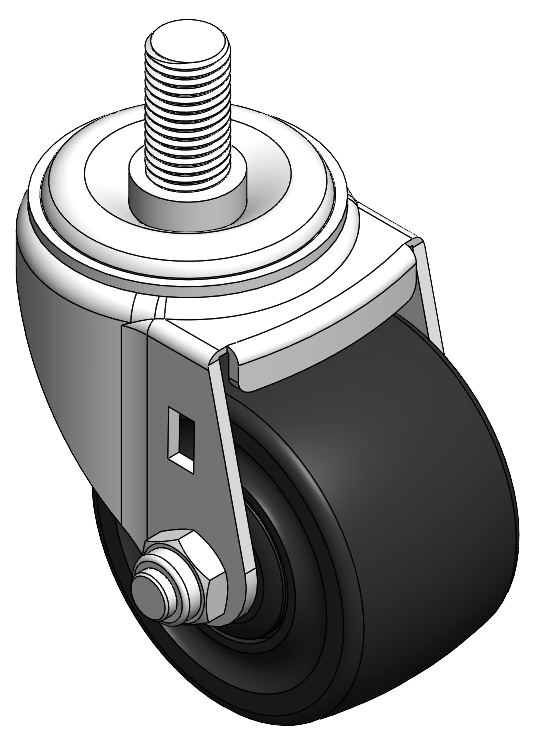

Picture may differ from original product
1109 Medium Duty/Low Profile Business Machine Caster Series
MRC (black) Wheel Diameter × Wheel Width 64 x 45mm
YJ-11090250055043
Wheel Diameter64mm 2-9/16
Load Capacity (Dynamic)250kgs 551lbs
Overall Height87.5mm 3-1/2＂
Wheel BearingWheels With Ball Bearings
- Swivel Caster, thread-Riveted Stamping Fork—M12-P1.75
- Zine-Plated, Mounting Type - Threaded Stem
- Thermoplastic core and tread
- Bearing—Ball Bearing.
- Wheel surface: Thermoplastic (PA6)
- Wheel Center: thermoplastic (PA6)
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

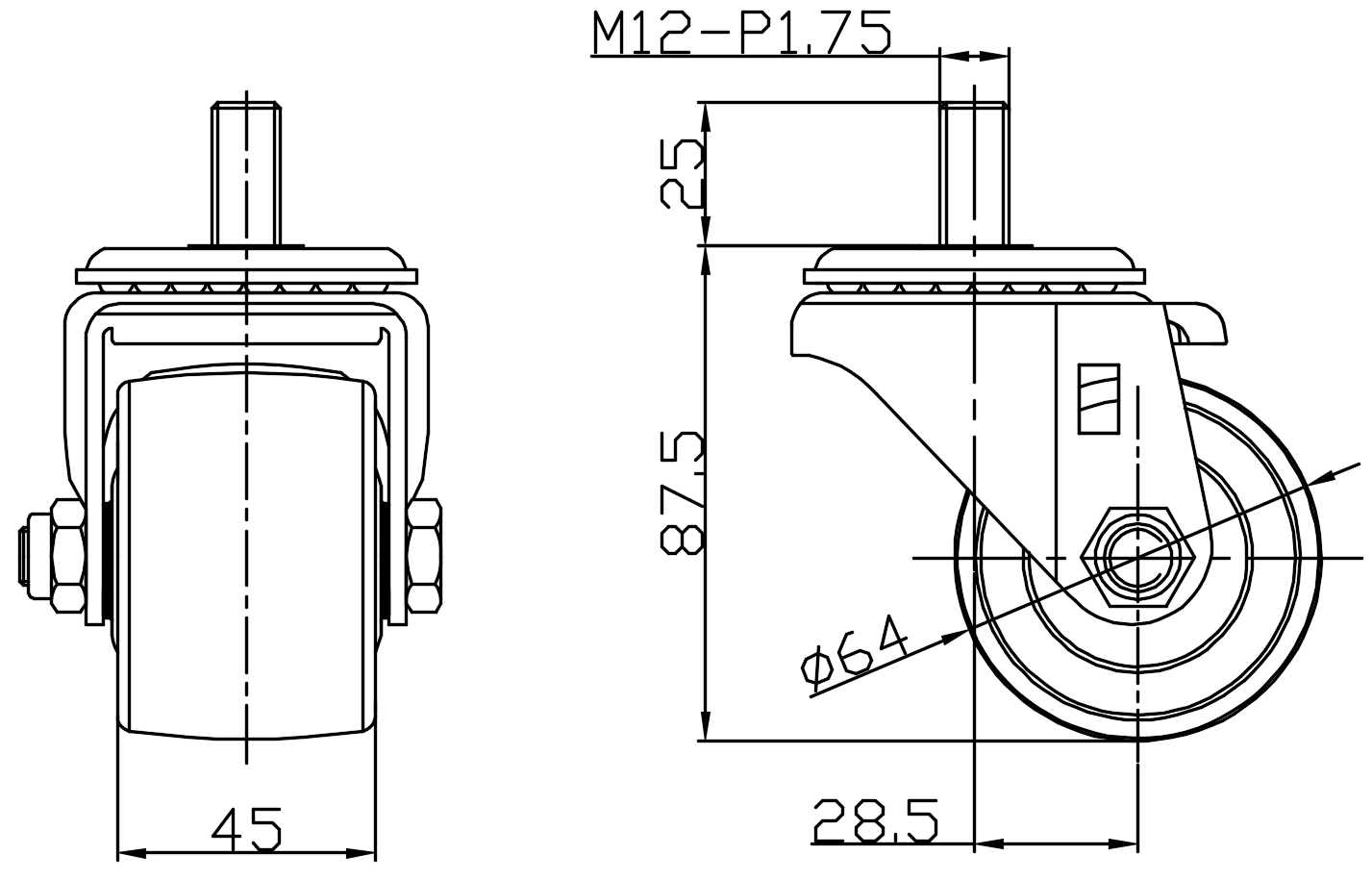

Product Data Sheet
- Wheel Diameter
- 64mm2-9/16
- Wheel Width
- 45mm1-13/16＂
- Wheel Bearing
- Wheels With Ball Bearings
- Threaded Stem
- M12-P1.75M12-P1.75
- Threaded Length
- 25mm1＂
- Offset
- 28.5mm1-1/8＂
- Swivel Interference
- 126mm5＂
- Overall Height
- 87.5mm3-1/2＂

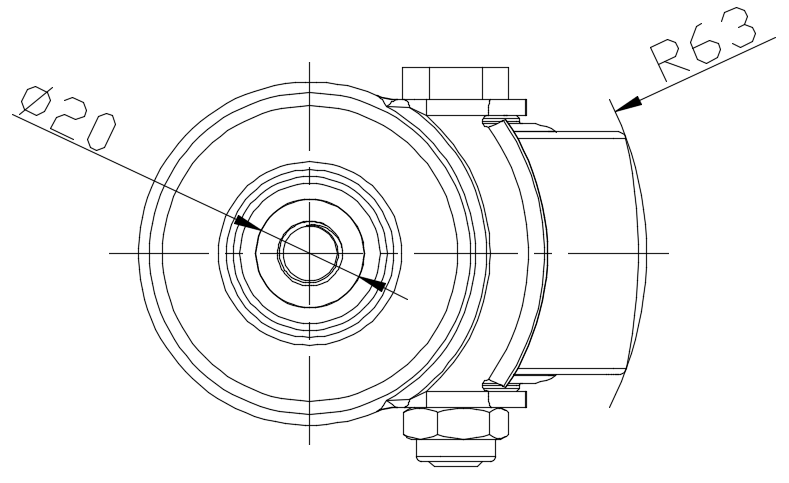

- Swivel Radius
- 63mm2-1/2＂
- Hardness Of Tread
- 75±5° Shore D
- Load Capacity (Dynamic)
- 250kgs551lbs
- Load Capacity (Static)
- 375kgs827lbs
- Temperature
- -20°C to +80°C-4°F to +176°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.63kgs1.4lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
