QPU (brown round) Wheel Diameter × Wheel Width 62.5 x 45mm

Picture may differ from original product

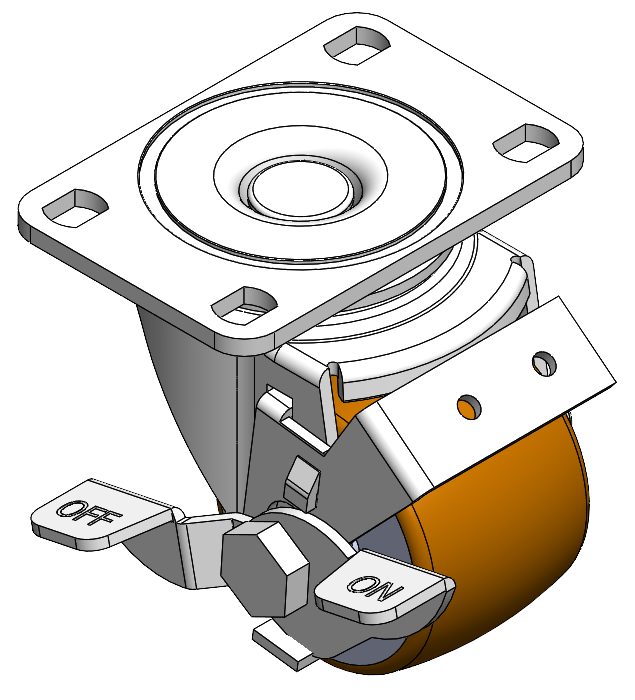

1109 Medium Duty/Low Profile Business Machine Caster Series

QPU (brown round) Wheel Diameter × Wheel Width 62.5 x 45mm

YJ-11090250534023

Wheel Diameter62.5mm　2-1/2＂

Load Capacity (Dynamic)400kgs　882lbs

Overall Height90mm　3-9/16＂

Wheel BearingWheels With Ball Bearings

Side Brake Locking system Top Plate Riveted and Stamping with 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate.
Cast Iron Wheel Center, High Quality Polyurethane tread.
Brown color, Bearing—Ball Bearing.
Wheel surface: high quality polyurethane
Wheel Center: iron core

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

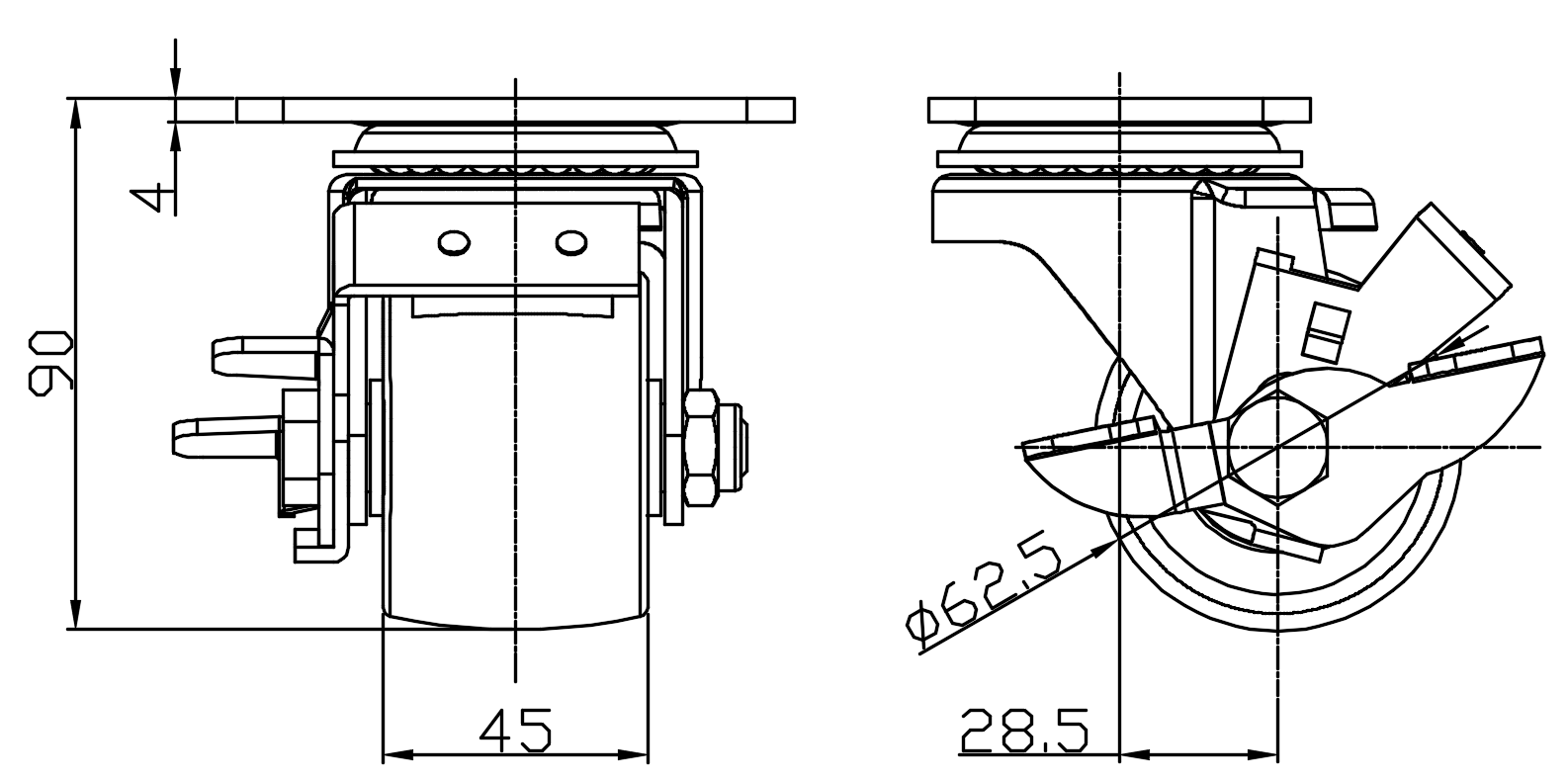

Product Data Sheet

Wheel Diameter: 62.5mm2-1/2＂
Wheel Width: 45mm1-13/16＂
Wheel Bearing: Wheels With Ball Bearings

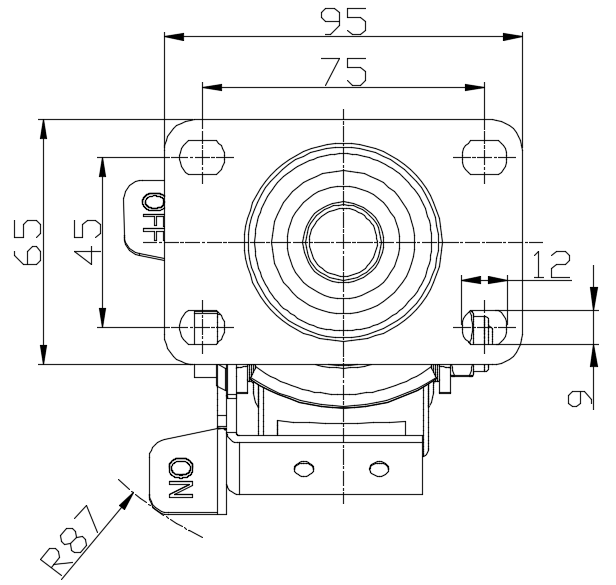

Plate Size: 95 x 65mm3-13/16＂ x 2-9/16＂
Bolt Hole Spacing: 75 x 45mm3＂x 1-13/16＂
Plate Hole: 12 x 9mm1/2＂ x 23/64＂
Offset: 28.5mm1-1/8＂
Swivel Interference: 174mm7＂
Overall Height: 90mm3-9/16＂
Swivel Radius: 87mm3-1/2＂
Hardness Of Tread: 92±5° Shore A
Load Capacity (Dynamic): 400kgs882lbs
Load Capacity (Static): 600kgs1323lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster With Side Brake
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 1.16kgs2.6lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
