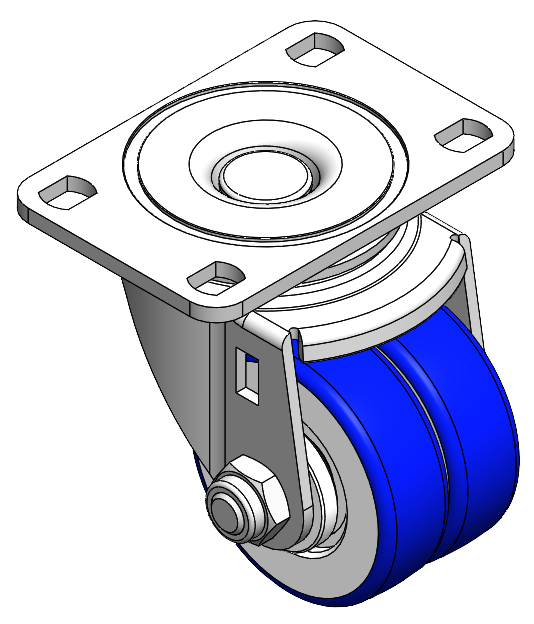

Picture may differ from original product
1109 Medium Duty/Low Profile Business Machine Caster Series
ZQPU (Milled Blue) Wheel Diameter × Wheel Width 62.5× 20（41.5） mm
YJ-11090250802013
Wheel Diameter62.5mm 2-1/2＂
Load Capacity (Dynamic)400kgs 882lbs
Overall Height90mm 3-9/16＂
Wheel BearingWheels With Ball Bearings
- Swivel Caster with Riveted Fork and Stamping Fork—75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing
- Zine-Plated, Fork-mount Mounting Type
- Aluminum Wheel Center, High Quality Polyurethane tread
- Blue color, Bearing—Ball Bearing.
- Wheel surface: high quality polyurethane
- Wheel Center: Aluminum core
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

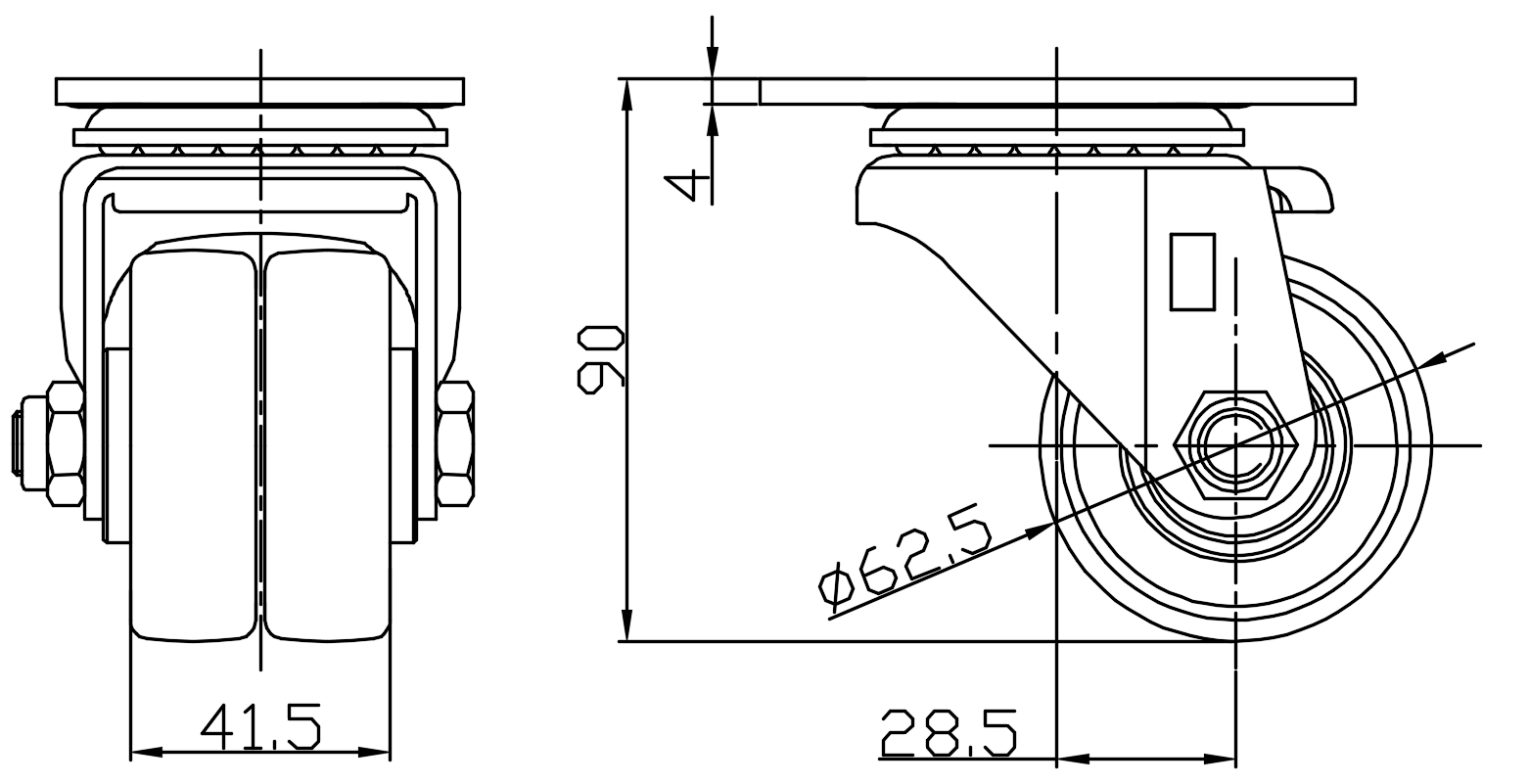

Product Data Sheet
- Wheel Diameter
- 62.5mm2-1/2＂
- Wheel Width
- 41.5mm1-11/16
- Wheel Bearing
- Wheels With Ball Bearings

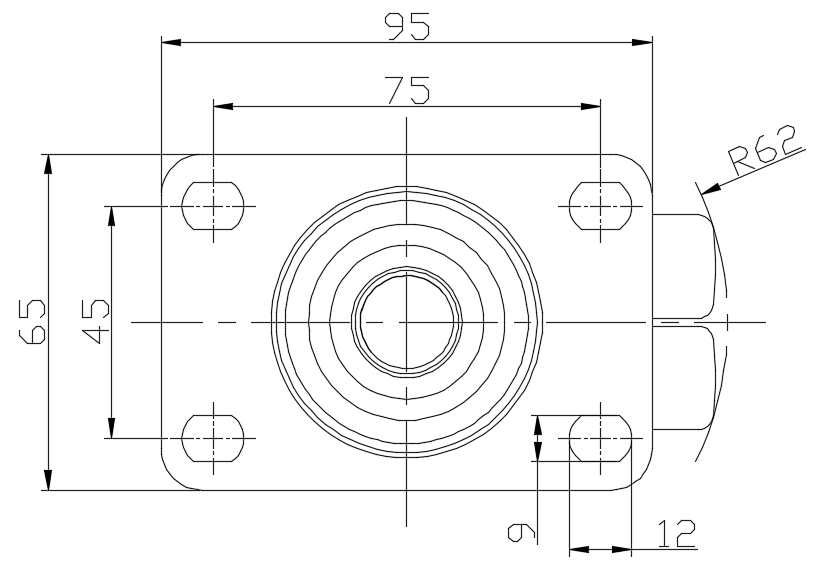

- Plate Size
- 95 x 65mm3-13/16＂ x 2-9/16＂
- Bolt Hole Spacing
- 75 x 45mm3＂x 1-13/16＂
- Plate Hole
- 12 x 9mm1/2＂ x 23/64＂
- Offset
- 28.5mm1-1/8＂
- Swivel Interference
- 124mm5＂
- Overall Height
- 90mm3-9/16＂
- Swivel Radius
- 62mm2-1/2＂
- Hardness Of Tread
- 87±5° Shore A
- Load Capacity (Dynamic)
- 400kgs882lbs
- Load Capacity (Static)
- 600kgs1323lbs
- Temperature
- -20°C to +70°C-4°F to +158°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 1.2kgs2.6lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
