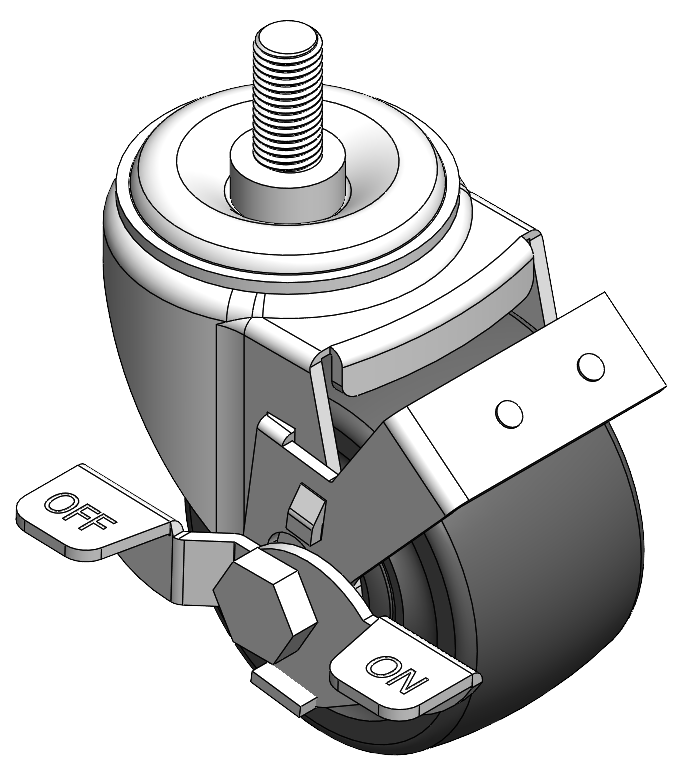

Picture may differ from original product
1109 Medium Duty/Low Profile Business Machine Caster Series
MRC (black) Wheel Diameter × Wheel Width 75 x 45 mm
YJ-11090300056943
Wheel Diameter75mm 3＂
Load Capacity (Dynamic)300kgs 661lbs
Overall Height98.5mm 3-15/16＂
Wheel BearingWheels With Ball Bearings
- Side Brake Locking system Thread-Riveted Stamping Fork—M12-P1.75.
- Zine-Plated, Mounting Type - Threaded Stem.
- Reinforced Polypropylene and tread.
- Black. Bearing—Ball Bearing.
- Wheel surface: Thermoplastic (PA6)
- Wheel Center: Thermoplastic (PA6)
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

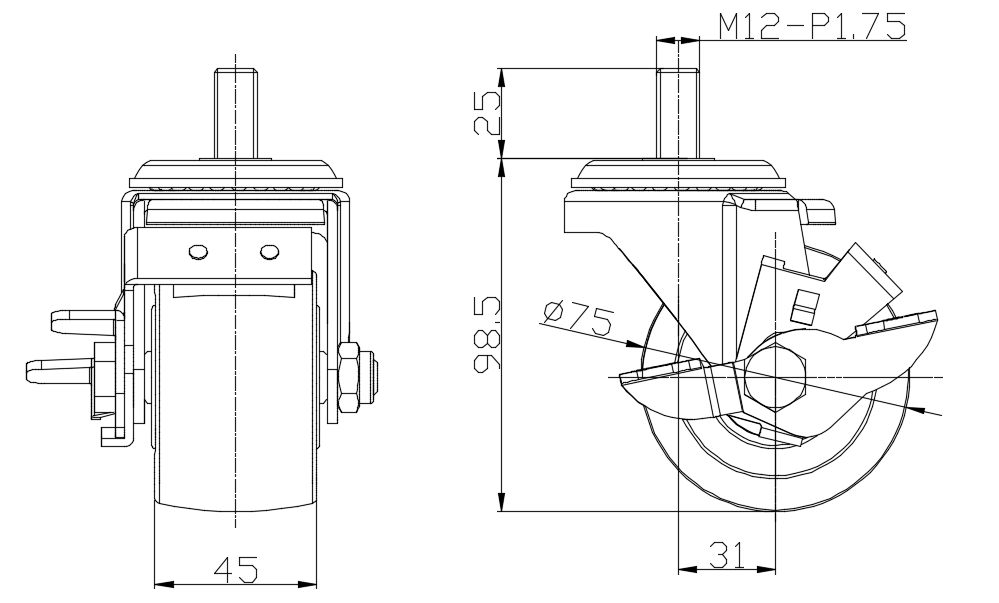

Product Data Sheet
- Wheel Diameter
- 75mm3＂
- Wheel Width
- 45mm1-13/16＂
- Wheel Bearing
- Wheels With Ball Bearings
- Threaded Stem
- M12-P1.75M12-P1.75
- Threaded Length
- 25mm1＂
- Offset
- 31mm1-1/4＂
- Swivel Interference
- 174mm7＂
- Overall Height
- 98.5mm3-15/16＂

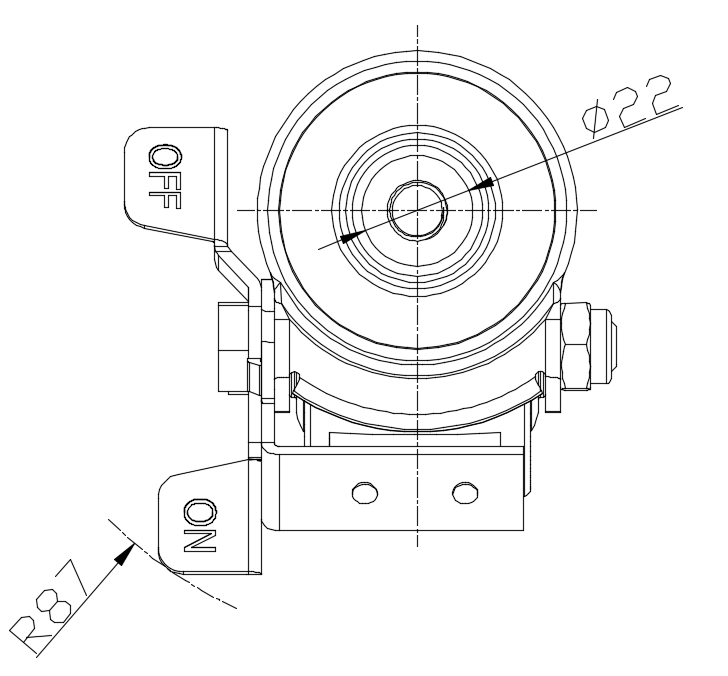

- Swivel Radius
- 87mm3-1/2＂
- Hardness Of Tread
- 75±5° Shore D
- Load Capacity (Dynamic)
- 300kgs661lbs
- Load Capacity (Static)
- 450kgs992lbs
- Temperature
- -20°C to +80°C-4°F to +176°F
- Fork Type
- Swivel Caster With Side Brake
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.83kgs1.8lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
