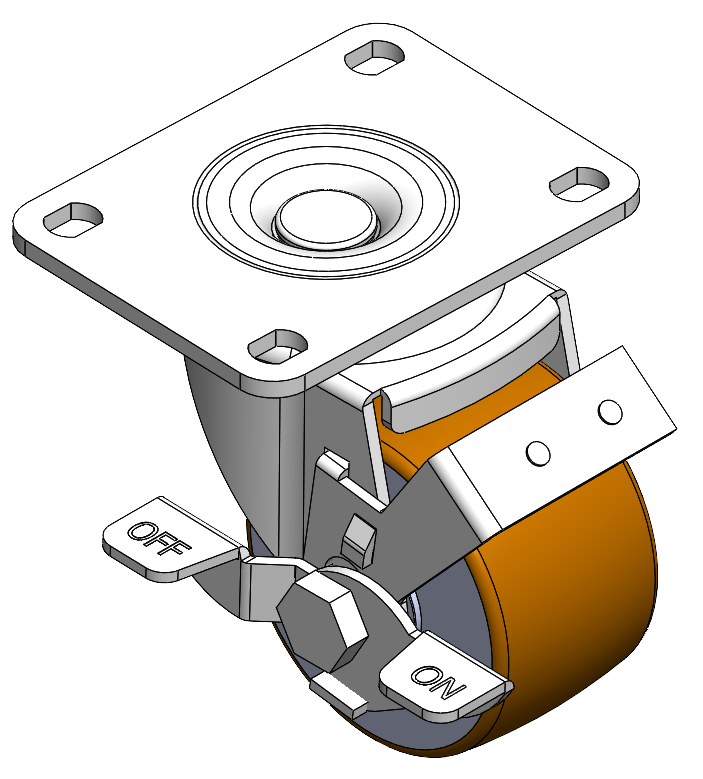

Picture may differ from original product
1109 Medium Duty/Low Profile Business Machine Caster Series
QPU (brown round) Wheel Diameter × Wheel Width 75 × 45mm
YJ-11090300534013
Wheel Diameter75mm 3＂
Load Capacity (Dynamic)450kgs 992lbs
Overall Height102mm 4-1/16＂
Wheel BearingWheels With Ball Bearings
- Side Brake Locking system High-quality, Riveted Stamping Fork.
- Hole
- Zine-Plated, Mounting Type - Top Plate.
- Cast Iron Wheel Center, High Quality Polyurethane tread.
- Brown color, Bearing—Ball Bearing.
- Wheel surface: high quality polyurethane
- Wheel Center: cast iron core
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

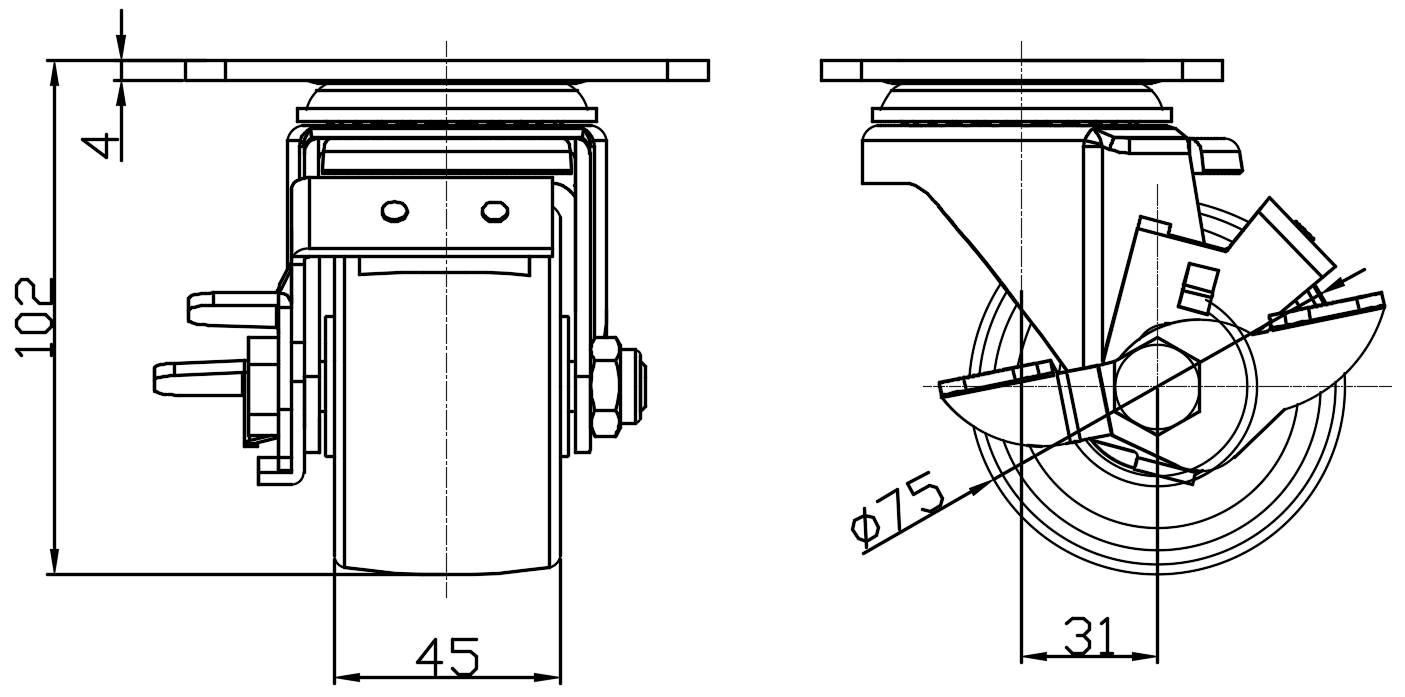

Product Data Sheet
- Wheel Diameter
- 75mm3＂
- Wheel Width
- 45mm1-13/16＂
- Wheel Bearing
- Wheels With Ball Bearings

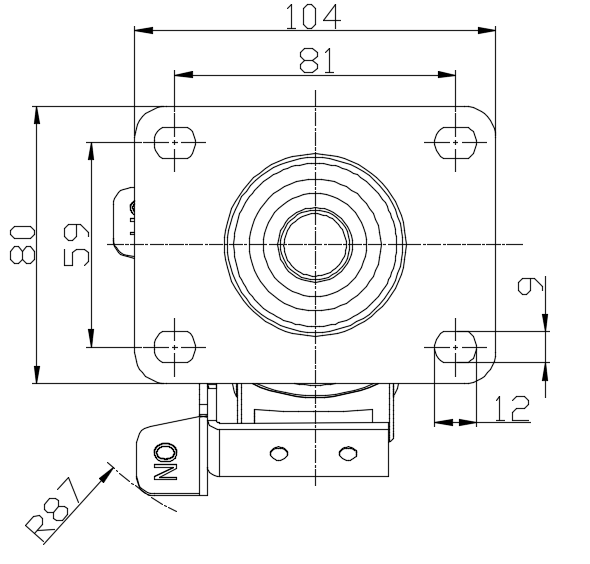

- Plate Size
- 104 x 80mm4-1/8＂ x 3-3/16＂
- Bolt Hole Spacing
- 81 x 59mm2-1/4＂ x 2-3/8＂
- Plate Hole
- 12 x 9mm1/2＂ x 23/64＂
- Offset
- 31mm1-1/4＂
- Swivel Interference
- 174mm7＂
- Overall Height
- 102mm4-1/16＂
- Swivel Radius
- 87mm3-1/2＂
- Hardness Of Tread
- 92±5° Shore A
- Load Capacity (Dynamic)
- 450kgs992lbs
- Load Capacity (Static)
- 675kgs1488lbs
- Temperature
- -20°C to +70°C-4°F to +158°F
- Fork Type
- Swivel Caster With Side Brake
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 1.49kgs3.3lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
