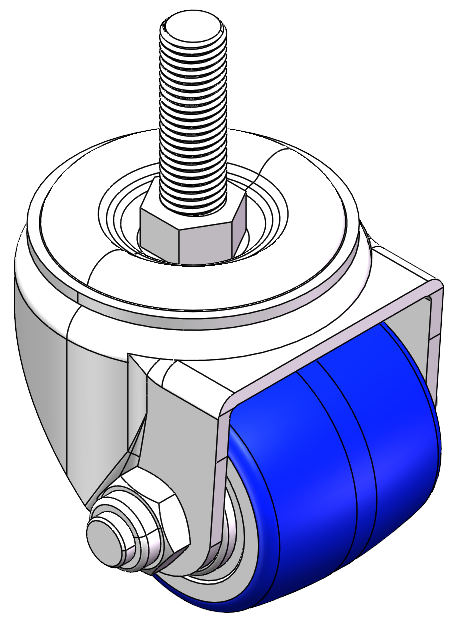

1109 Medium Duty/Low Profile Business Machine Caster Series
QPU (blue round) Wheel Diameter × Wheel Width 50 × 45mm
YJ-11090200535013
Wheel Diameter50mm 2＂
Load Capacity (Dynamic)100kgs 220lbs
Overall Height70mm 2-13/16＂
Wheel BearingWheels With Ball Bearings
- Portable Casters, Threaded Stem Stamping Fork—3/8-16UNC
- Zine-Plated surface, Mounting Type - Threaded Stem device
- Cast Iron wheel center, High Quality Polyurethane Wheel Tread
- Blue, Bearing—Ball Bearings.
- Wheel surface: High-quality polyurethane
- Wheel Center: iron core
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.
Product Data Sheet

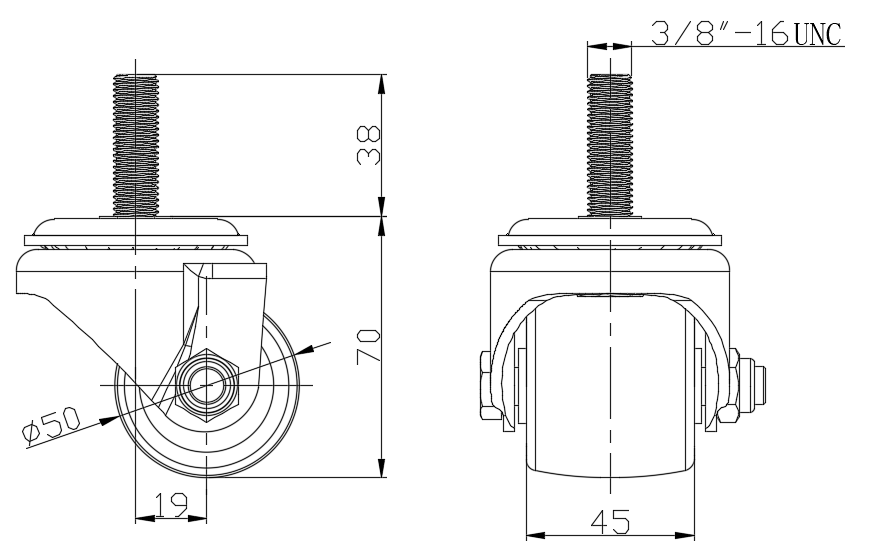

- Wheel Diameter
- 50mm2＂
- Wheel Width
- 45mm1-13/16＂
- Wheel Bearing
- Wheels With Ball Bearings
- Threaded Stem
- 3/8＂-16UNC3/8＂-16UNC
- Threaded Length
- 38mm1-1/2＂

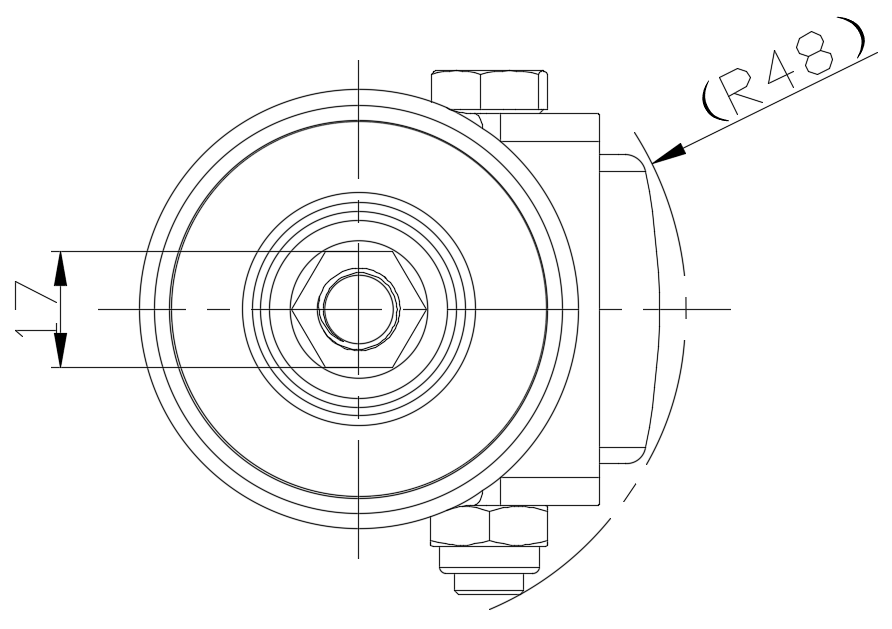

- Offset
- 17mm11/16＂
- Swivel Interference
- 96mm3-7/8＂
- Overall Height
- 70mm2-13/16＂
- Swivel Radius
- 48mm1-15/16＂
- Hardness Of Tread
- 87±5° Shore A
- Load Capacity (Dynamic)
- 100kgs220lbs
- Load Capacity (Static)
- 150kgs331lbs
- Temperature
- -20°C to +70°C-4°F to +158°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.84kgs1.9lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
