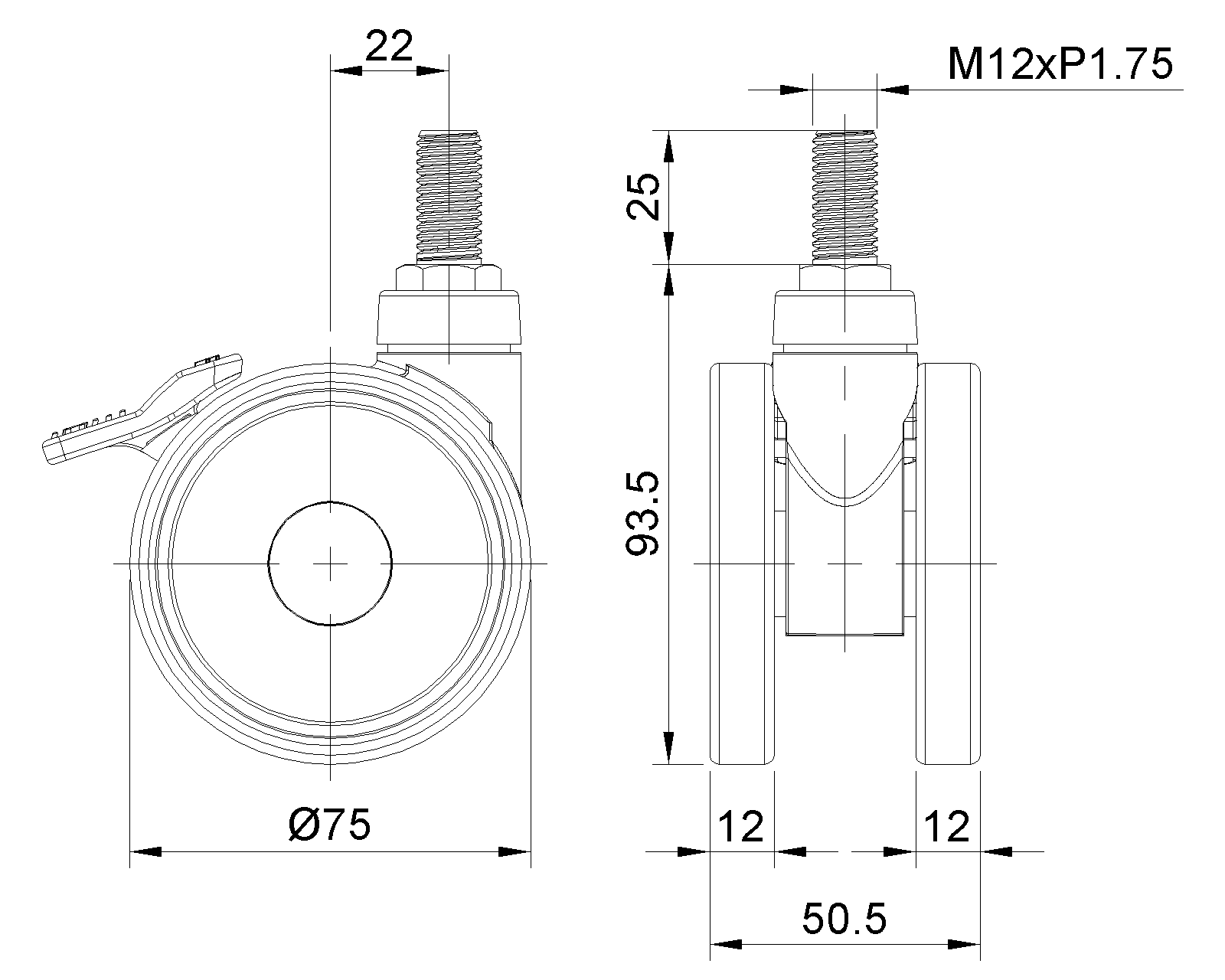

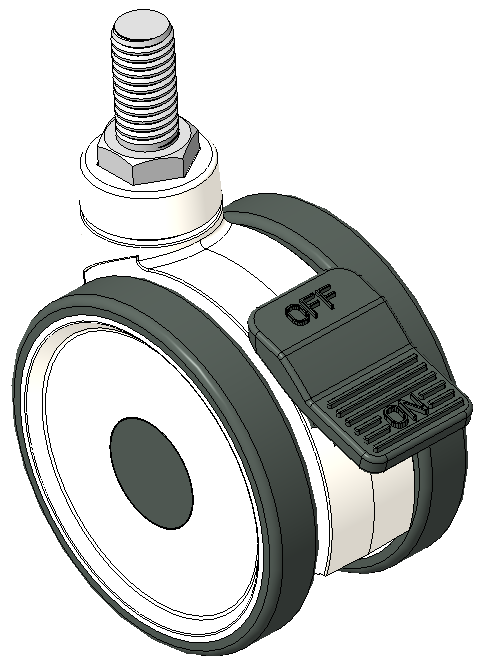

PPR Wheel Insert (White Dark Gray) Wheel Diameter×Wheel Width 75×12（50.5）mm

KS-11100302266013

Wheel Diameter75mm　3＂

Load Capacity (Dynamic)30kgs　66lbs

Overall Height93.5mm　3-11/16＂

Wheel BearingWheel With Plain Bearing

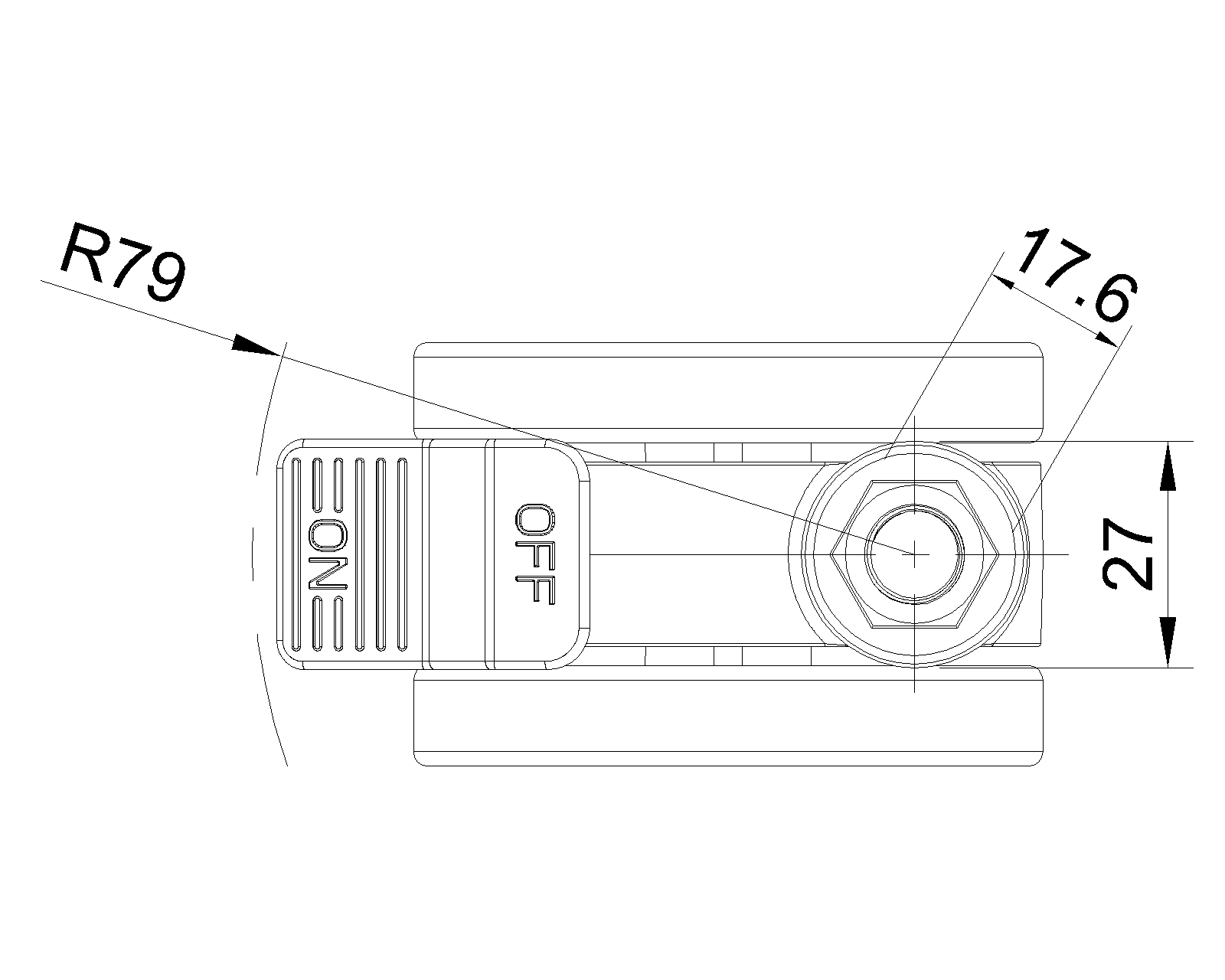

Total-lock caster，Threaded stem M12x25
White bracket made of reinforced polypropylene，Threaded stem mounting
Rust-resistant，Corrosion-resistant，Attractive appearance，Economical，Smooth swiveling
Impact-resistant polypropylene wheel core，Thermoplastic elastomer（TPR）Tread
Dark gray，Wheel—Sleeve type
Tread：Thermoplastic rubber elastomer(TPR)
Wheel core：Made of high-quality impact-resistant polypropylene

Product descriptions are for reference only. The actual product shall prevail.

3D drawings are for members only. Please log in to download.

Product Data Sheet

* For any deviation between metric and imperial spec, please refer to the metric spec.

Rolling SmoothnessMax. 5 pointsScore: 4

Quiet OperationMax. 5 pointsScore: 4

Floor Surface PreservationMax. 5 pointsScore: 5
