    Product Data Sheet
1110-3 Series — Medi Series
　　TPR wheel (white dark gray) Wheel Diameter x Wheel Width 75 x 12mm
　　EAN
　　　　　 KS-11100302264013
　　　　　 　　　

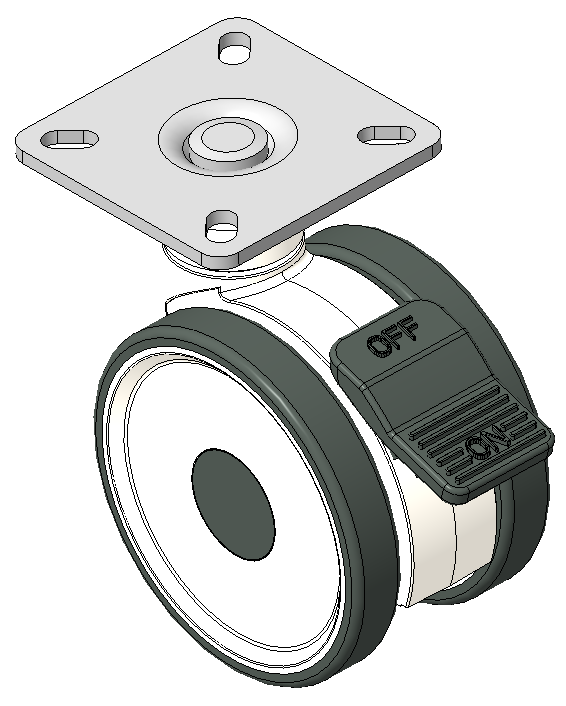

Total Brake Caster, 42.5 x 42.5 mm beveled hole Fork, white Fork with reinforced Polypropylene Rustproof, Corrosion resistant, and flexible, suitable for low- and medium-sized trolleys High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread Dark gray, Bearing: Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

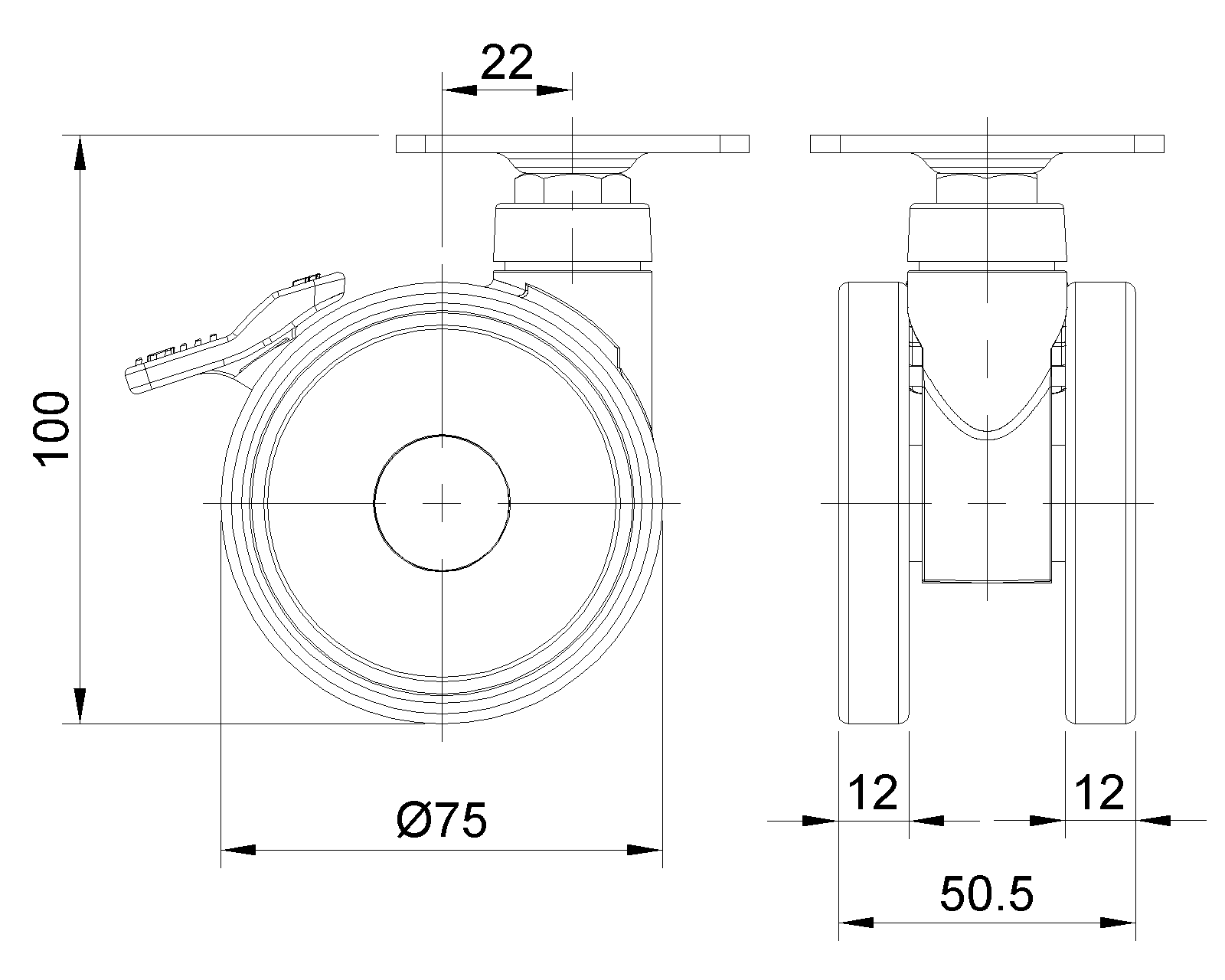

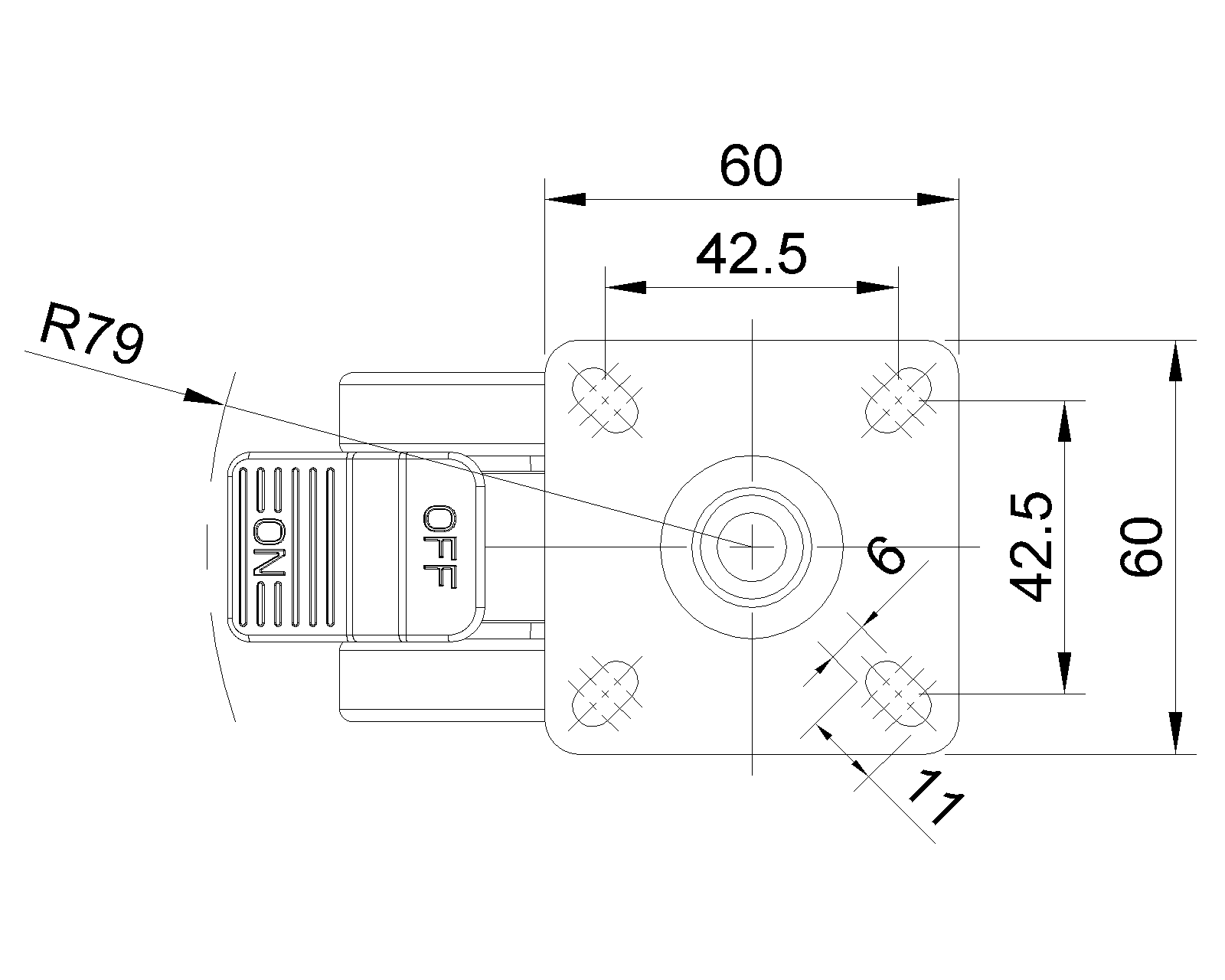

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 50.5mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 60 x 60mm　
　　Bolt Hole Spacing 42.5x42.5mm　
　　Plate Hole 11 x 6mm　
　　Offset 22mm　
　　Swivel Interference 158mm　
　　Overall Height 100mm　
　　Swivel Radius 79mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 30kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 45kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.31kgs　
　　Standard ISO22883
　　
　　
