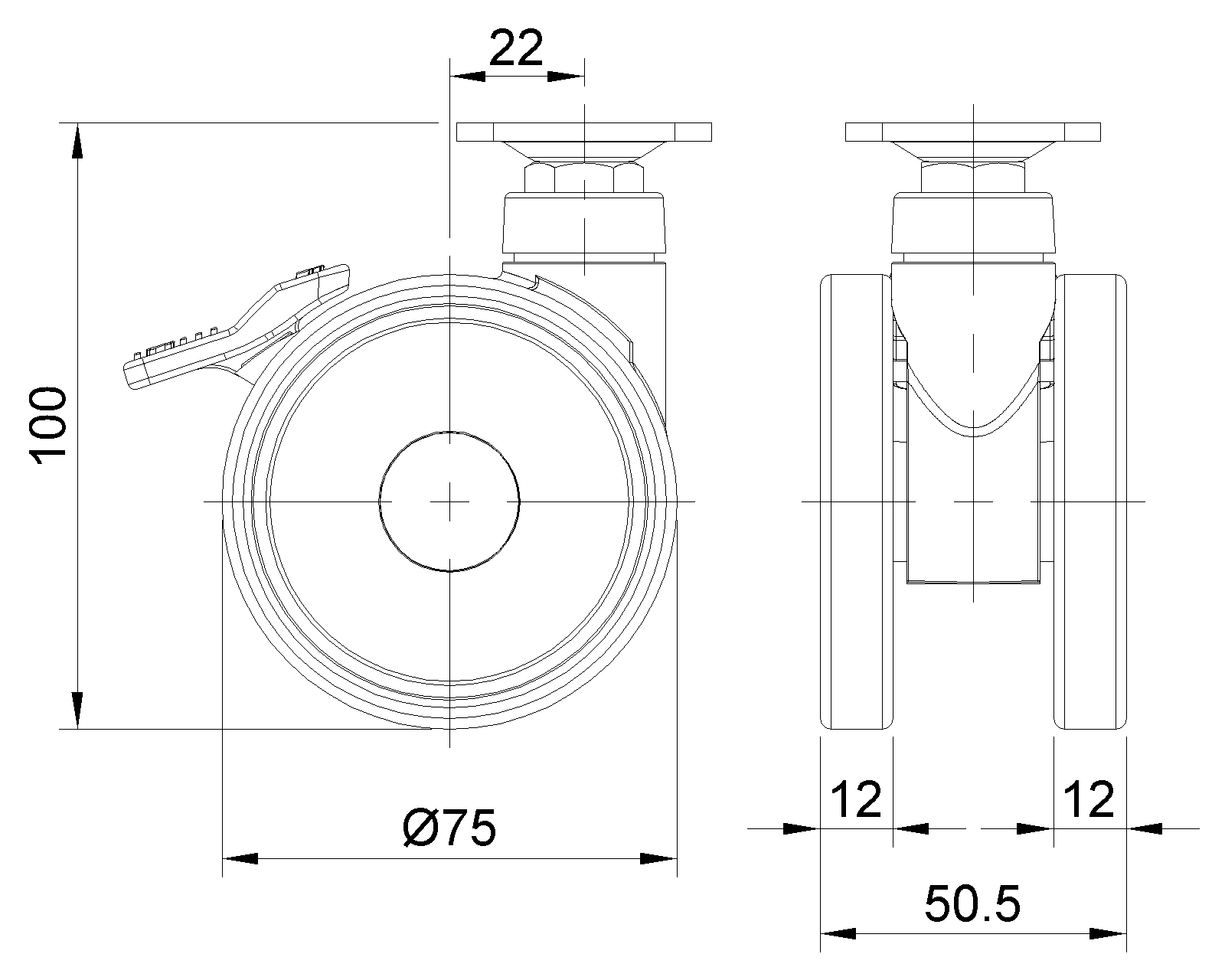

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
50.5mm
Wheel Bearing
Wheel With Plain Bearing

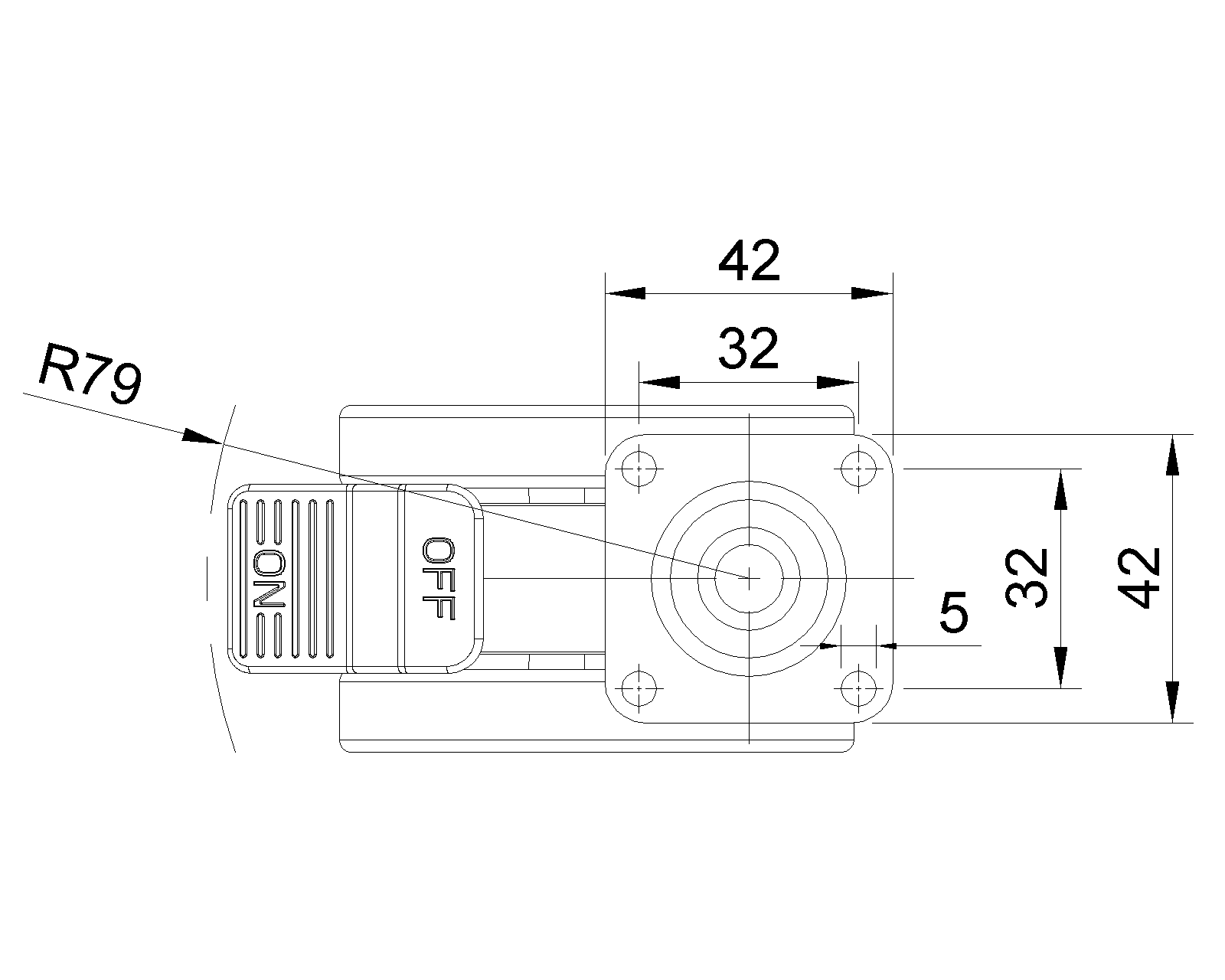

Plate Size
42 x 42mm
Bolt Hole Spacing
32 x 32mm
Plate Hole
5mm
Offset
22mm
Swivel Interference
158mm
Overall Height
100mm
Swivel Radius
79mm
Hardness Of Tread
82±5° Shore A
Load Capacity (Dynamic)
30kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
45kgs
Temperature
-20°C to +60°C

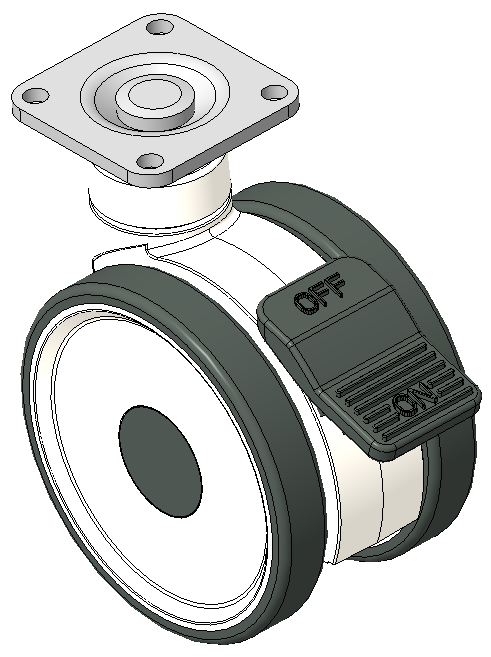

Fork Type
Swivel Caster With Total Brake
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.27kgs
Standard
ISO22881
