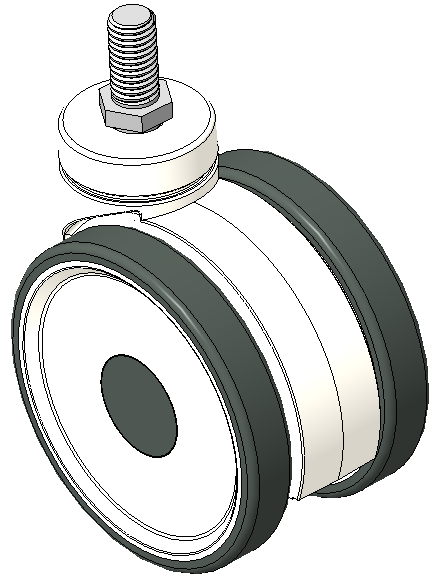

Active double ball Casters, Threaded Stem M10x20
White legs made of reinforced Polypropylene, Threaded Stem installation
Rust-proof, Corrosion resistant, Attractive appearance, Economical, and rotates smoothly
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Plain Bearings
Wheel Center: Made of high-quality impact-resistant polypropylene

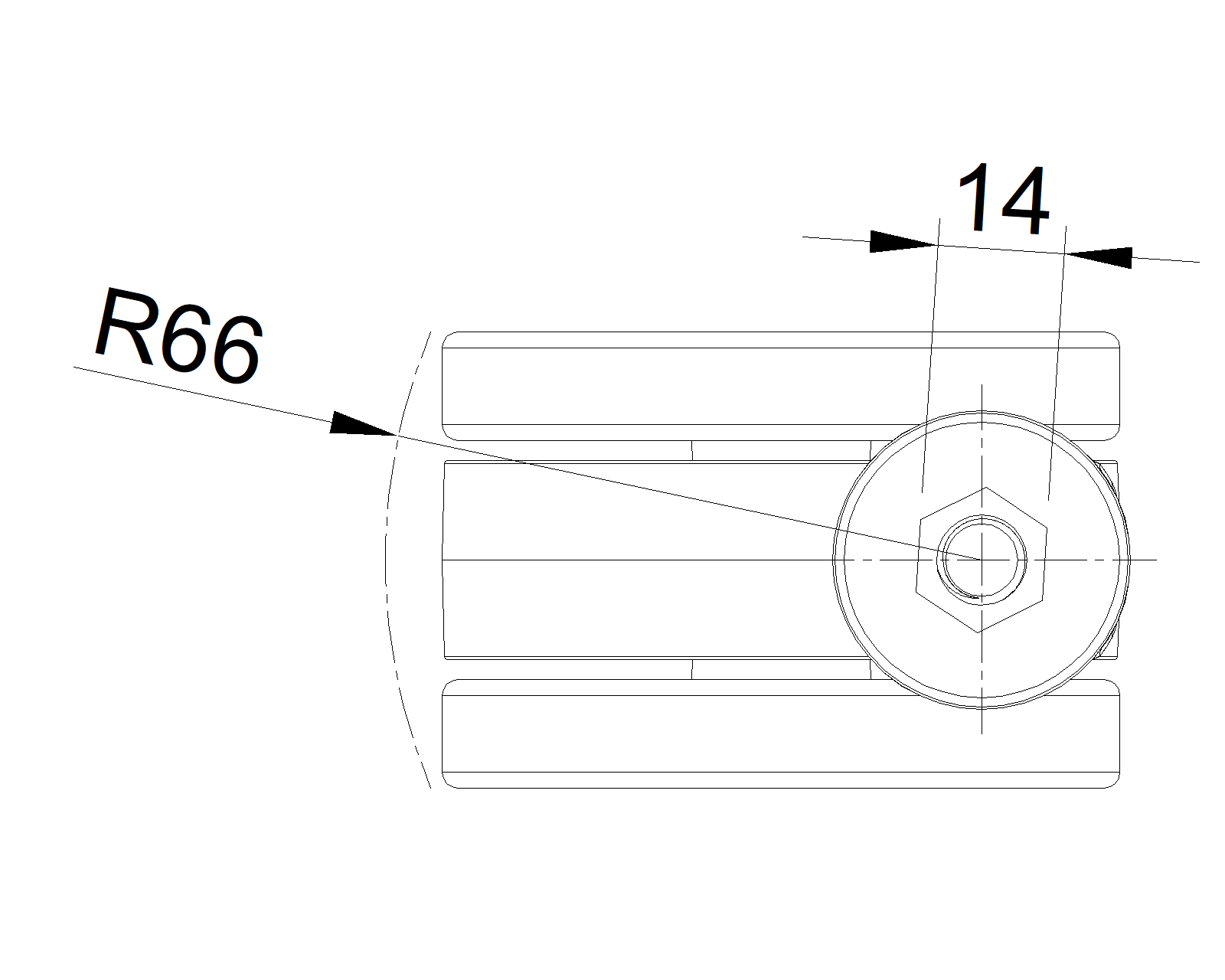

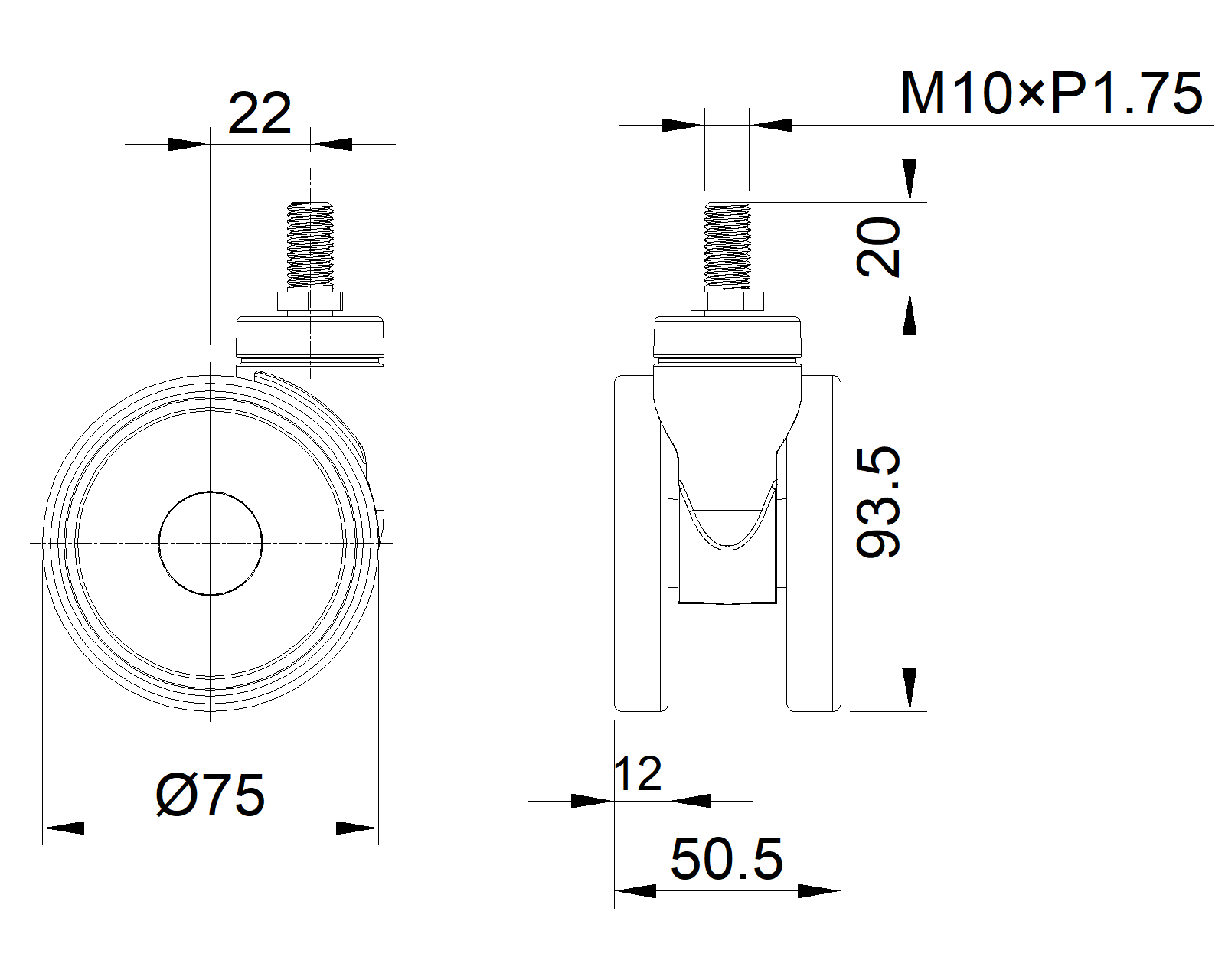

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
50.5mm
Wheel Bearing
Wheel With Plain Bearing
Threaded Stem
M10
Threaded Length
20mm
Offset
22mm
Swivel Interference
132mm
Overall Height
119mm
Swivel Radius
66mm
Hardness Of Tread
82±5° Shore A
Load Capacity (Dynamic)
30kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
45kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.16kgs
Standard
ISO22883
