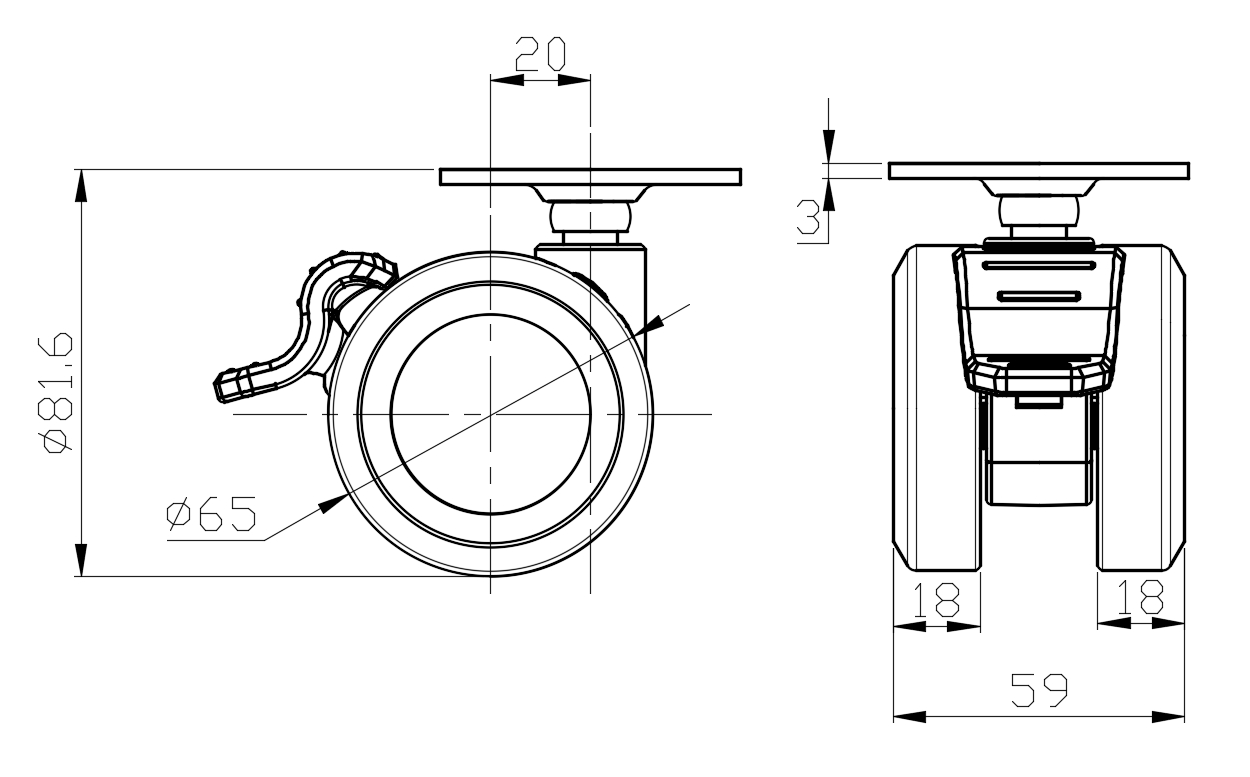

- Wheel Diameter
- 65mm2-9/16
- Wheel Width
- 59mm2-3/8
- Wheel Bearing
- Wheel With Plain Bearing

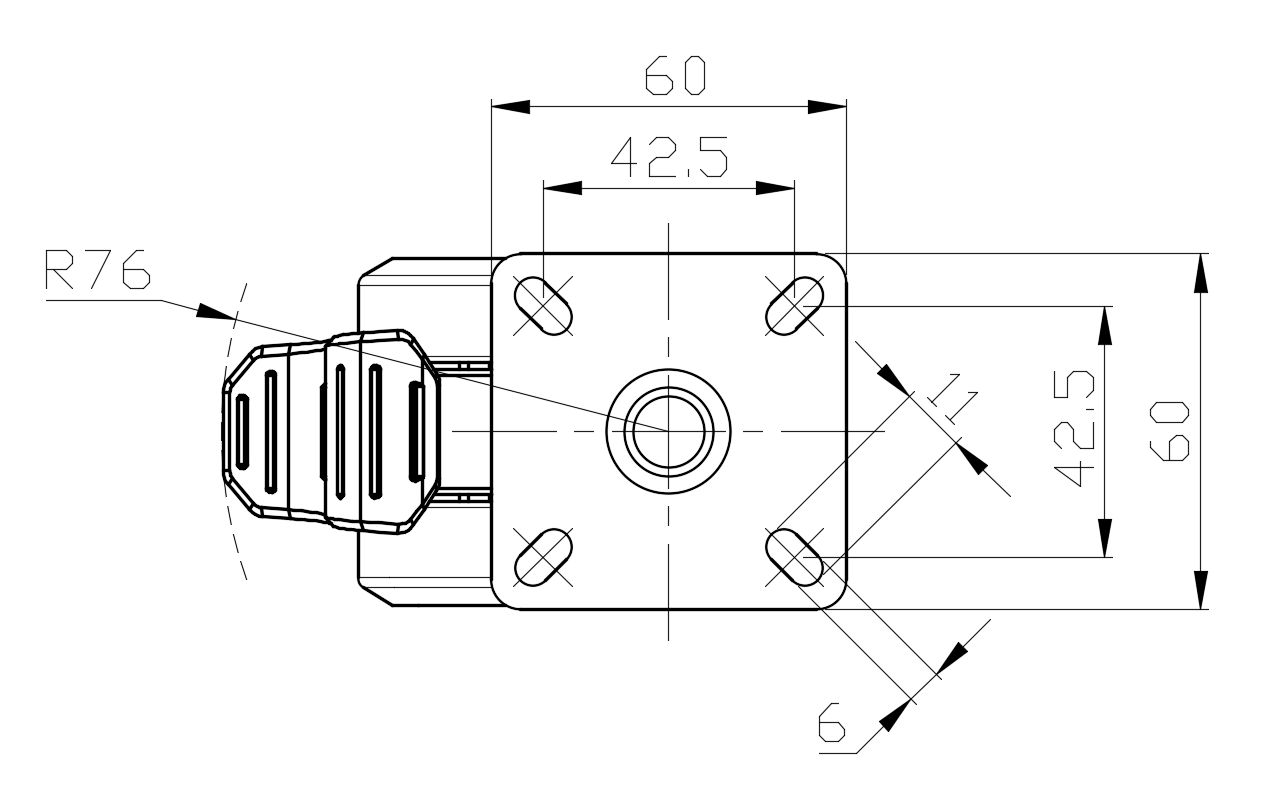

- Plate Size
- 60 x 60mm2-7/16＂ x 2-7/16＂
- Bolt Hole Spacing
- 42.5 x 42.5mm1-11/16“x1-11/16”
- Plate Hole
- 11 x 6mm3/8＂ x 1/4＂
- Offset
- 20mm13/16＂
- Swivel Interference
- 152mm6＂
- Overall Height
- 81.6mm3-1/4＂
- Swivel Radius
- 76mm2-3/8＂
- Hardness Of Tread
- 95±5° Shore A
- Load Capacity (Dynamic)
- 45kgs99lbs
- Load Capacity (Static)
- 67.5kgs149lbs
- Temperature
- -20°C to +60°C-4°F to +140°F
- Fork Type
- Swivel Caster With Wheel Brake
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.27kgs0.6lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
