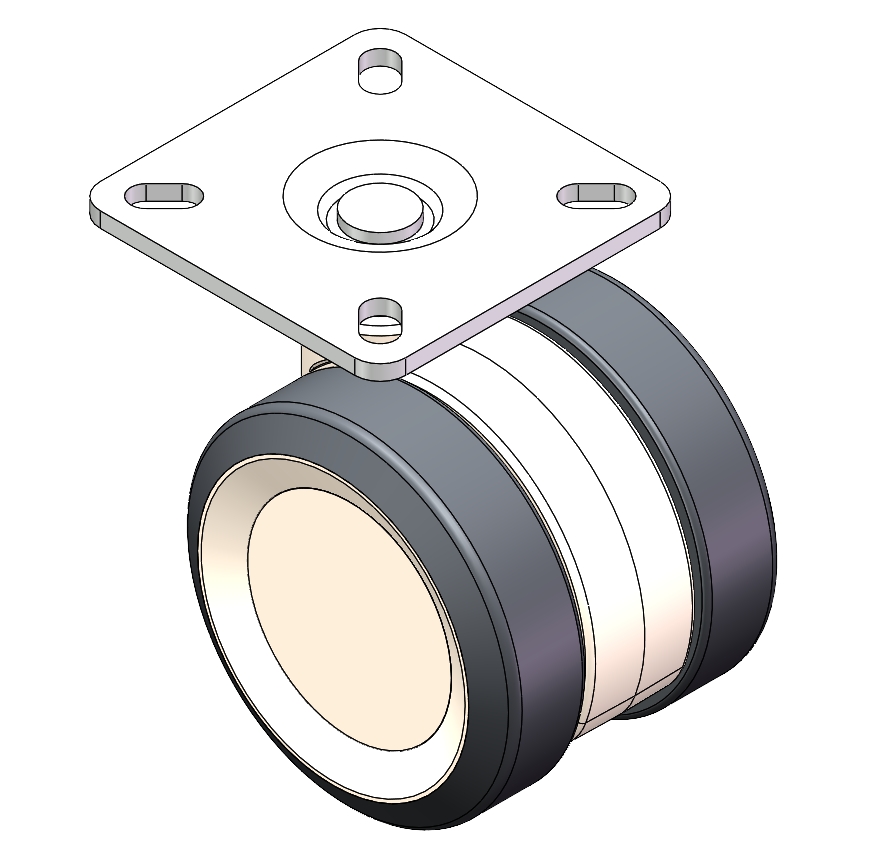

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series (All Plastic)
Yoyo Wheel (light dark gray) Wheel Diameter x Wheel Width 65 x 18mm
YJ-11100250242023
Wheel Diameter65mm 2-9/16
Load Capacity (Dynamic)45kgs 99lbs
Overall Height81.6mm 3-1/4＂
Wheel BearingWheel With Plain Bearing
- Swivel Caster with injection-molded Fork Riveted to Top Plate.
- reinforced Polypropylene Fork, Top Plate (3T) Mounting Type system
- Polypropylene (PP) core, polyvinyl chloride (PVC) tread
- White-dark gray, wheel - Plain Bearing.
- Wheel Tread: PVC polyvinyl chloride
- Wheel Center: PP polypropylene
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.
Product Data Sheet
- Wheel Diameter
- 65mm2-9/16
- Wheel Width
- 59mm2-3/8
- Wheel Bearing
- Wheel With Plain Bearing
- Plate Size
- 60 x 60mm2-7/16＂ x 2-7/16＂
- Bolt Hole Spacing
- 42.5 x 42.5mm1-11/16“x1-11/16”
- Plate Hole
- 11 x 6mm3/8＂ x 1/4＂
- Offset
- 20mm13/16＂
- Swivel Interference
- 118mm4-11/16＂
- Overall Height
- 81.6mm3-1/4＂
- Swivel Radius
- 59mm2-3/8＂
- Hardness Of Tread
- 95±5° Shore A
- Load Capacity (Dynamic)
- 45kgs99lbs
- Load Capacity (Static)
- 67.5kgs149lbs
- Temperature
- -20°C to +60°C-4°F to +140°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.25kgs0.6lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
