1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series (All Plastic)
Yoyo Wheel (black dark gray) Wheel Diameter x Wheel Width 100 x 22mm
YJ-11100400242013
Wheel Diameter100mm 4＂
Load Capacity (Dynamic)100kgs 220lbs
Overall Height115mm 7-1/2＂
Wheel BearingWheels With Ball Bearings
- Swivel Caster with injection-molded Fork Riveted to Forkplate.
- reinforced Polypropylene Fork, Top Platetype (3T) Mounting Type system
- Polypropylene (PP) Wheel Center, polyvinyl chloride (PVC) tread
- Dark gray, Bearing—Ball Bearing.
- Wheel Tread: PVC polyvinyl chloride
- Wheel Center: PP polypropylene
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

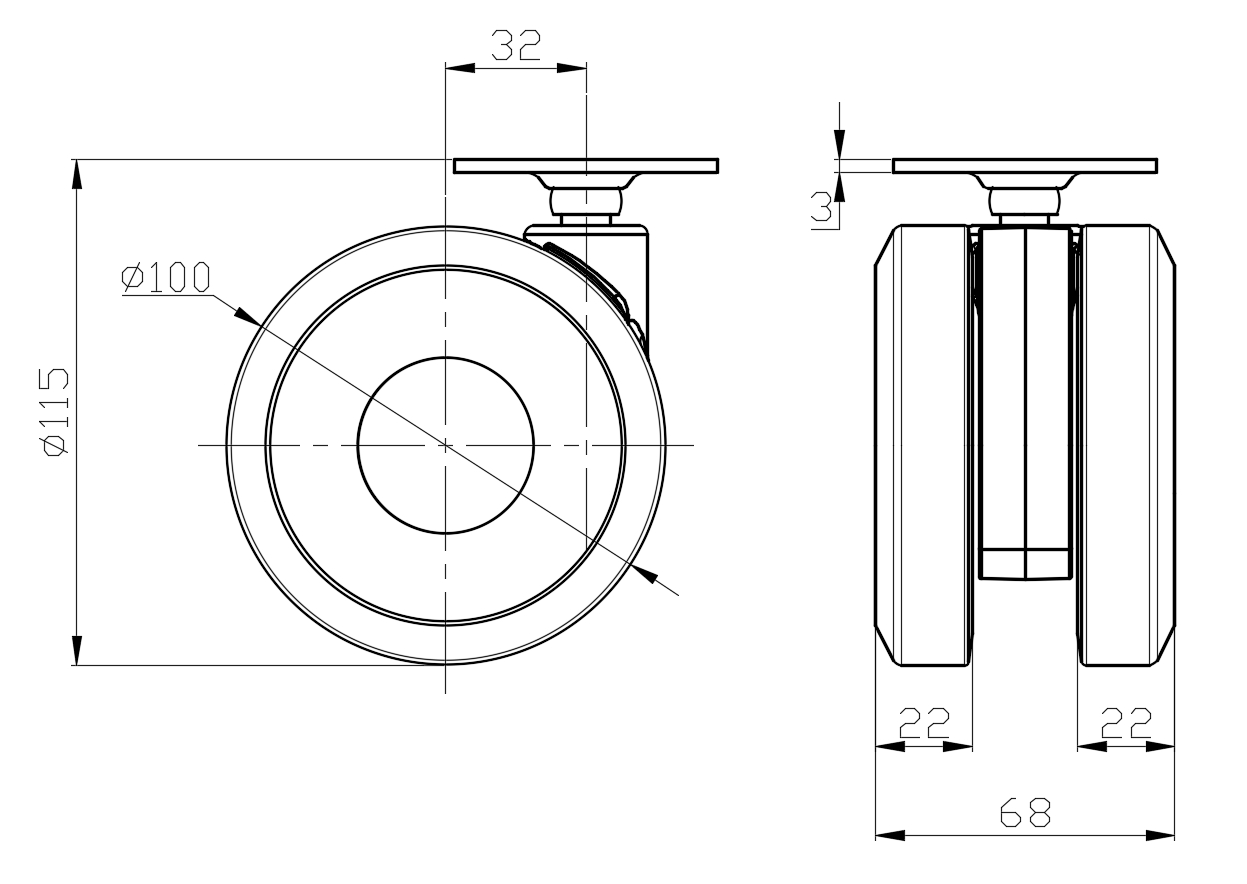

Product Data Sheet
- Wheel Diameter
- 100mm4＂
- Wheel Width
- 68mm2-3/4＂
- Wheel Bearing
- Wheels With Ball Bearings

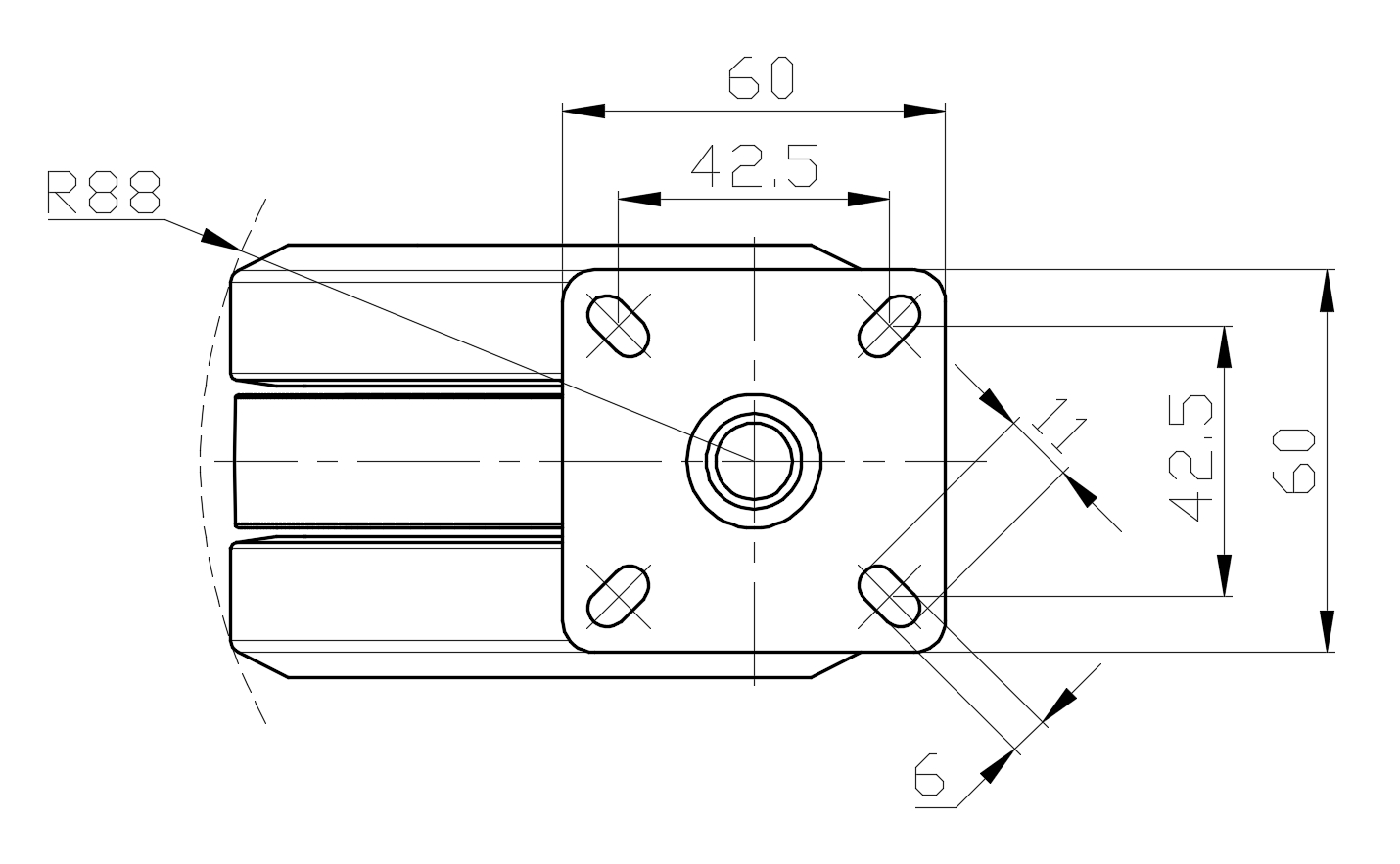

- Plate Size
- 60 x 60mm2-7/16＂ x 2-7/16＂
- Bolt Hole Spacing
- 42.5 x 42.5mm1-11/16“x1-11/16”
- Plate Hole
- 11 x 6mm3/8＂ x 1/4＂
- Offset
- 32mm1-5/16＂
- Swivel Interference
- 176mm7＂
- Overall Height
- 115mm7-1/2＂
- Swivel Radius
- 88mm3-1/2＂
- Hardness Of Tread
- 95±5° Shore A
- Load Capacity (Dynamic)
- 100kgs220lbs
- Load Capacity (Static)
- 150kgs331lbs
- Temperature
- -20°C to +60°C-4°F to +140°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.54kgs1.2lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
