    Product Data Sheet

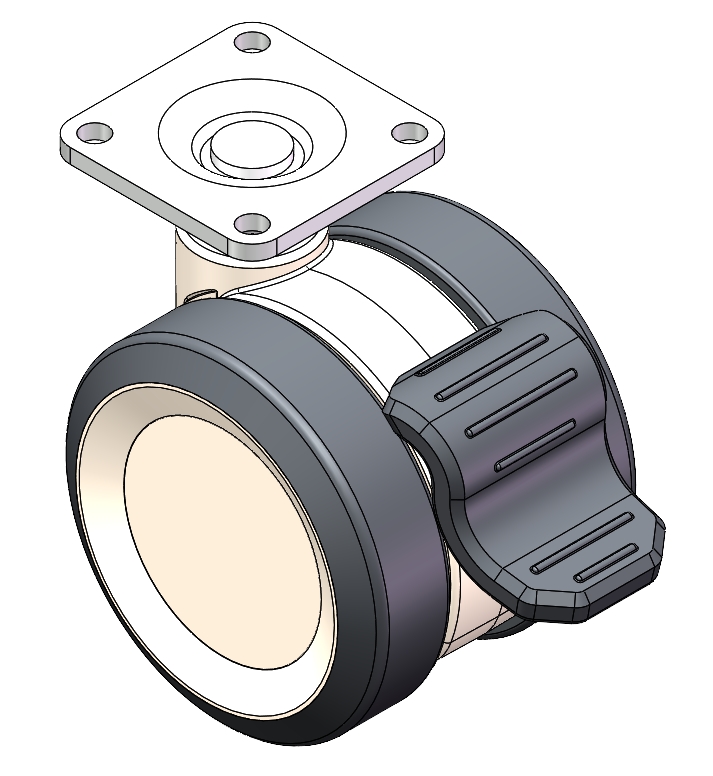

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)
　　Yoyo Wheel (light dark gray) Wheel Diameter x Wheel Width 65 x 18mm
　　EAN
　　　　　 　　　
　　YJ-11100250244083 　　　
Single Brake locking system and a Fork-Riveted, injection-molded Fork. reinforced Polypropylene Fork with Fork-mount (3T) Mounting Type system Polypropylene (PP) Wheel Center, polyvinyl chloride (PVC) tread White-dark gray, wheel - Plain Bearing.
　　Wheel Tread: PVC polyvinyl chloride
　　Wheel Center: PP polypropylene

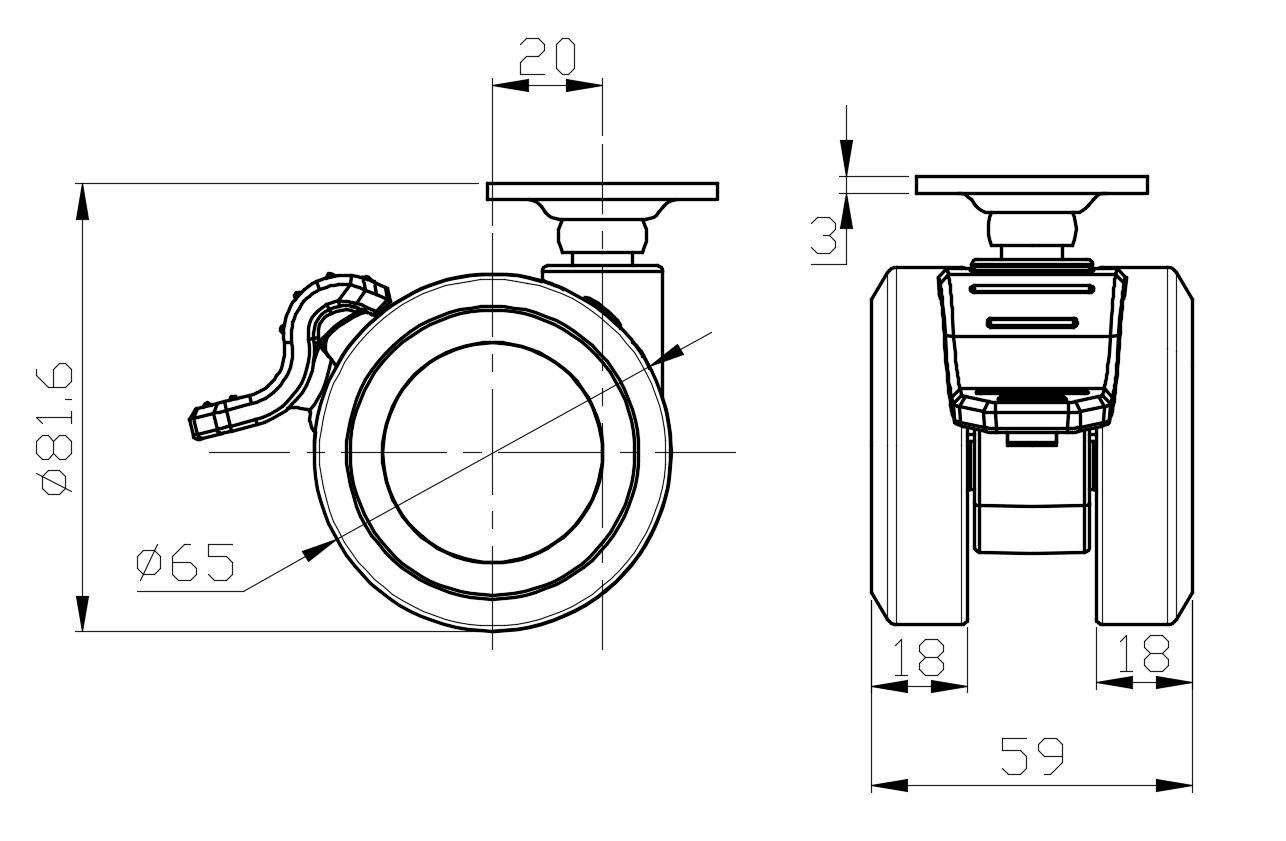

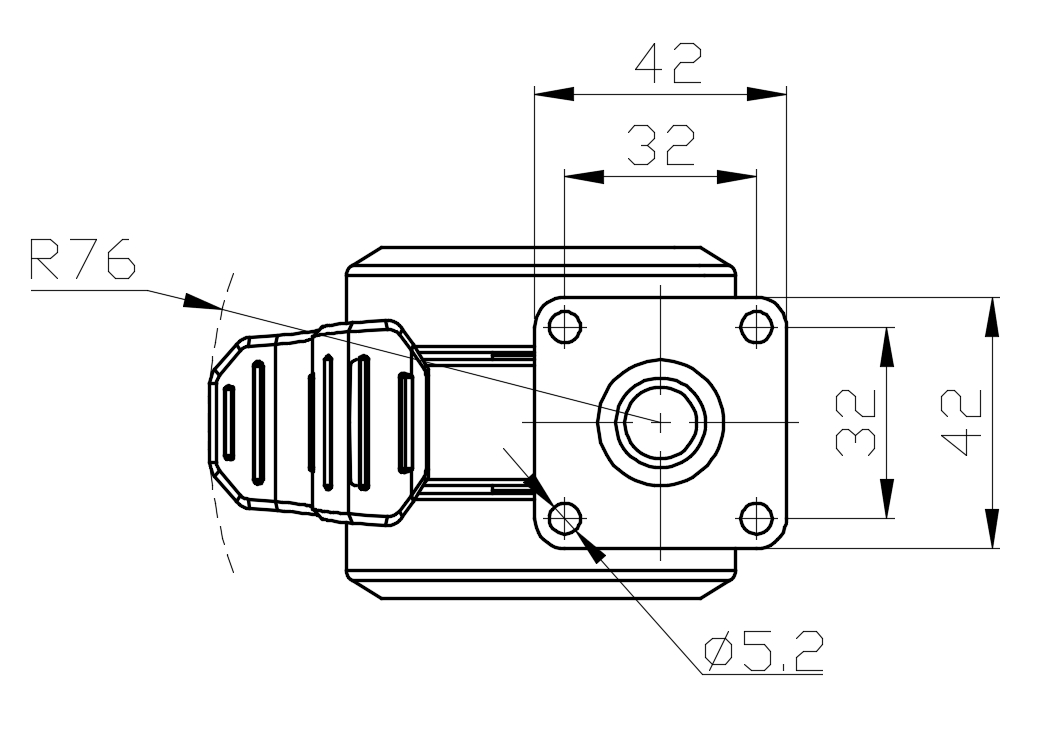

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 65mm　

　　Wheel Width 59mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 42 x 42mm　
　　Bolt Hole Spacing 32 x 32mm　
　　Plate Hole 5.2mm　
　　Offset 20mm　
　　Swivel Interference 152mm　
　　Overall Height 81.6mm　
　　Swivel Radius 76mm　
　　Hardness Of Tread 95±5° Shore A　
　　Load Capacity (Dynamic) 45kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 67.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster With Wheel Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.24kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

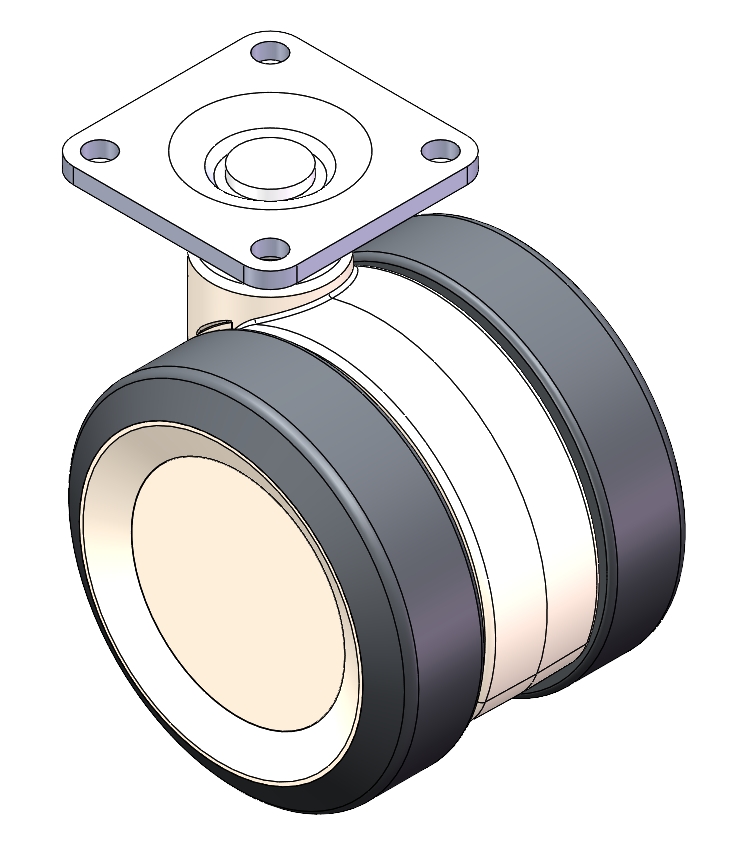

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)
