Product Data Sheet
1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series (All Plastic)
  Yoyo Wheel (light dark gray) Wheel Diameter x Wheel Width 72.8 x 20mm
  EAN

  YJ-11100300242083

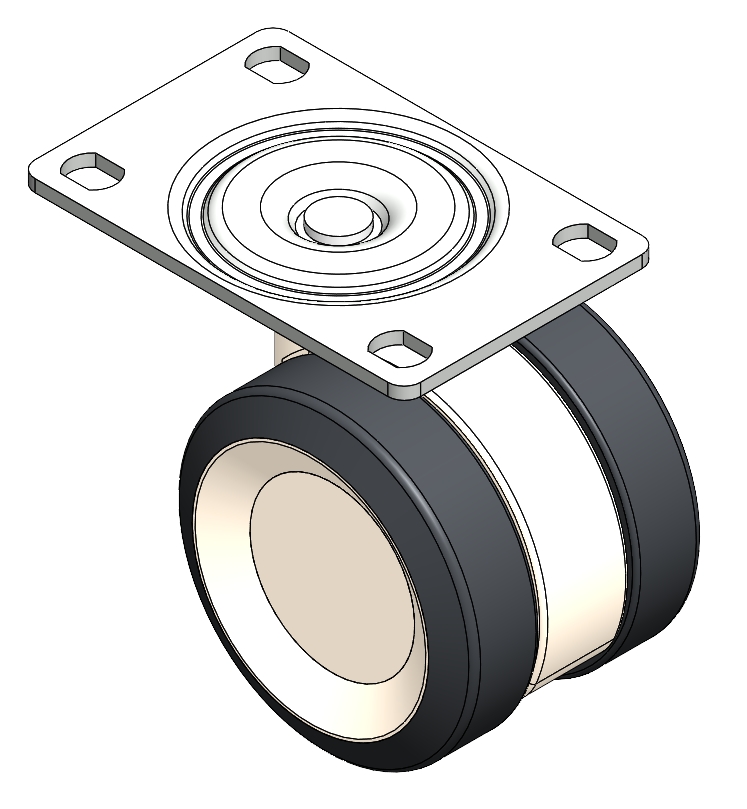

Swivel Caster with injection-molded Fork Riveted to Top Plate. reinforced Polypropylene Fork, Top Plate (3T) Mounting Type system Polypropylene (PP) core, polyvinyl chloride (PVC) tread White-dark gray, wheel - Plain Bearing.
  Wheel Tread: PVC polyvinyl chloride
  Wheel Center: PP polypropylene

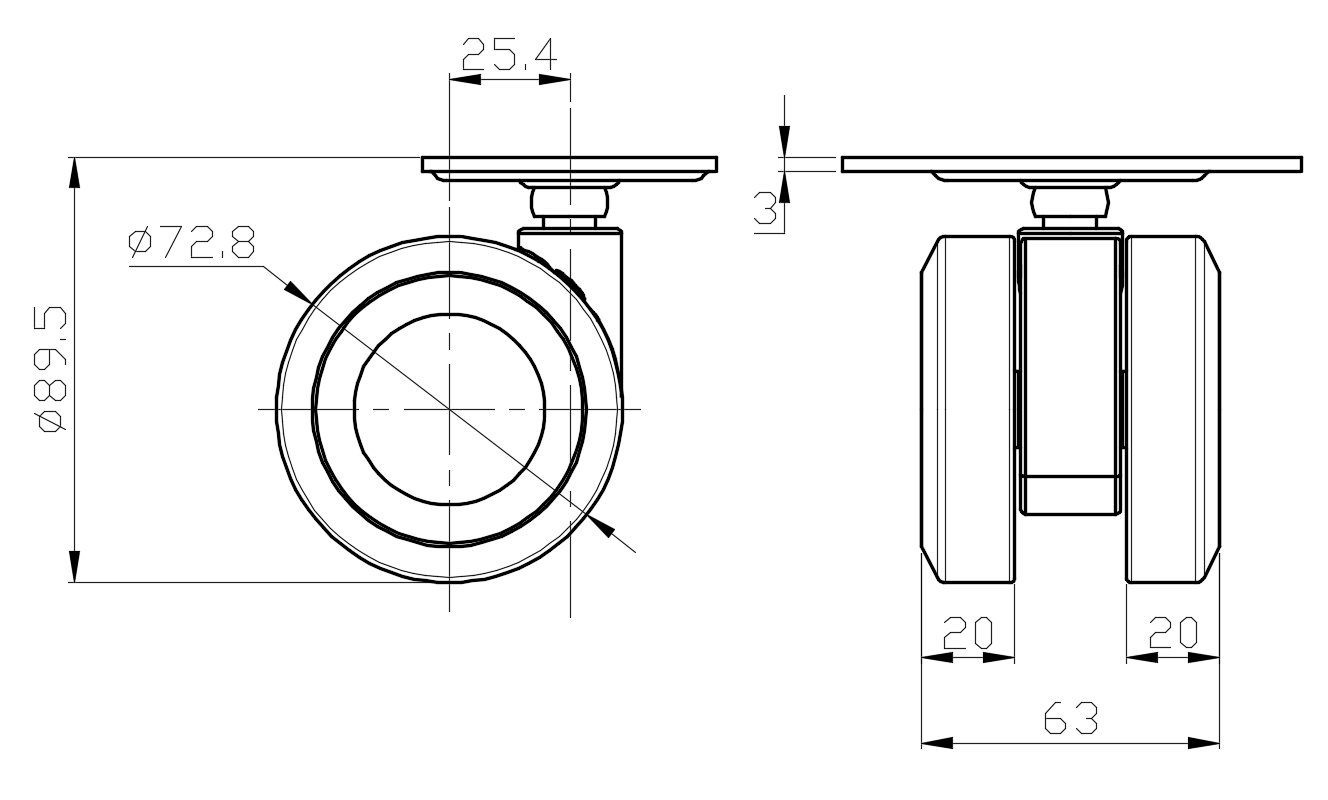

    Drawings are for reference only and may differ from the product




      Metric Imperial
  Wheel Diameter 72.8mm

  Wheel Width 63mm
  Wheel Bearing Wheel With Plain Bearing

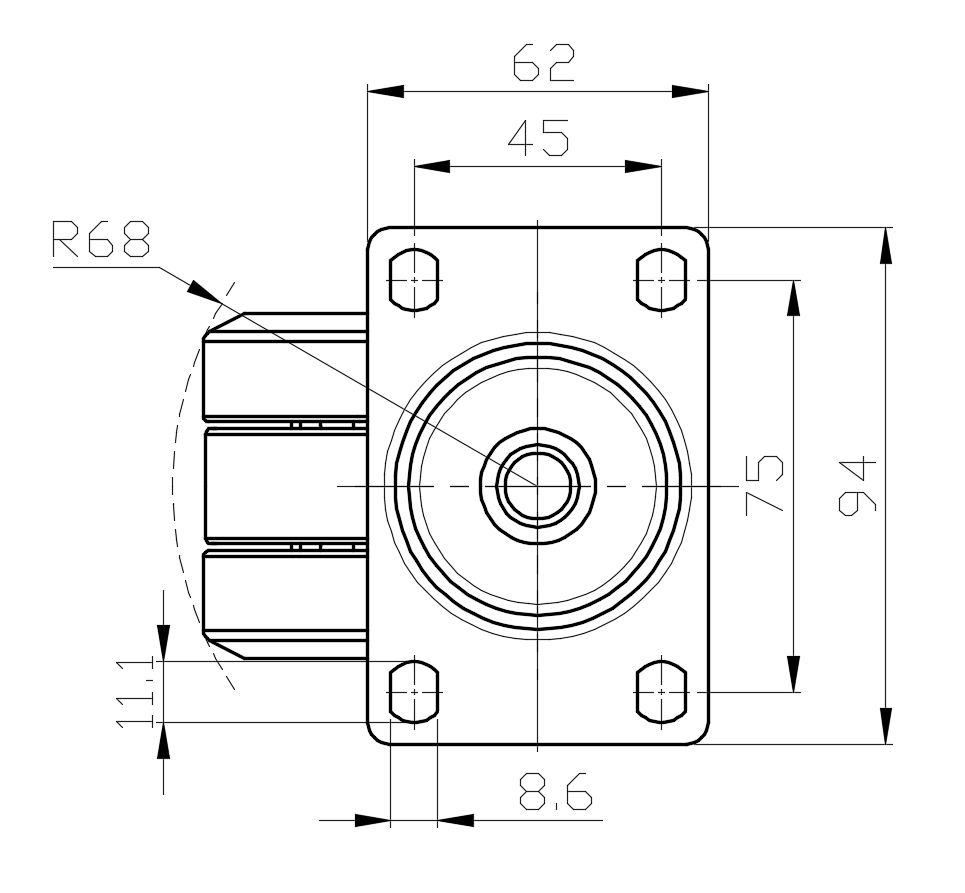

  Plate Size 94 x 62mm
  Bolt Hole Spacing 75 x 45mm
  Plate Hole 11.1 x 8.6mm
  Offset 25.4mm
  Swivel Interference 136mm
  Overall Height 89.5mm
  Swivel Radius 68mm
  Hardness Of Tread 95±5° Shore A
  Load Capacity (Dynamic) 45kgs


  Rolling Resistance
        ● ● ● ● ●

  Operating Noise        ● ● ● ● ●

  Floor Surface Preservation  ● ● ● ● ●

  Load Capacity (Static) 67.5kgs
  Temperature -20°C to +60°C
  Fork Type Swivel Caster
  Stainless N/A
  Electrical Conductivity N/A
  Anti-Static N/A
  Weight 0.34kgs
  Standard ISO22883


  © Copyright 2025 DershengInternational www.dersheng.com
關  聯  產  品
1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series (All Plastic)
Yoyo Wheel (light dark gray) Wheel Diameter x Wheel Width 72.8 x 20mm
YJ-11100300244163
72.8 mm 45 Kgs 89.5 mm

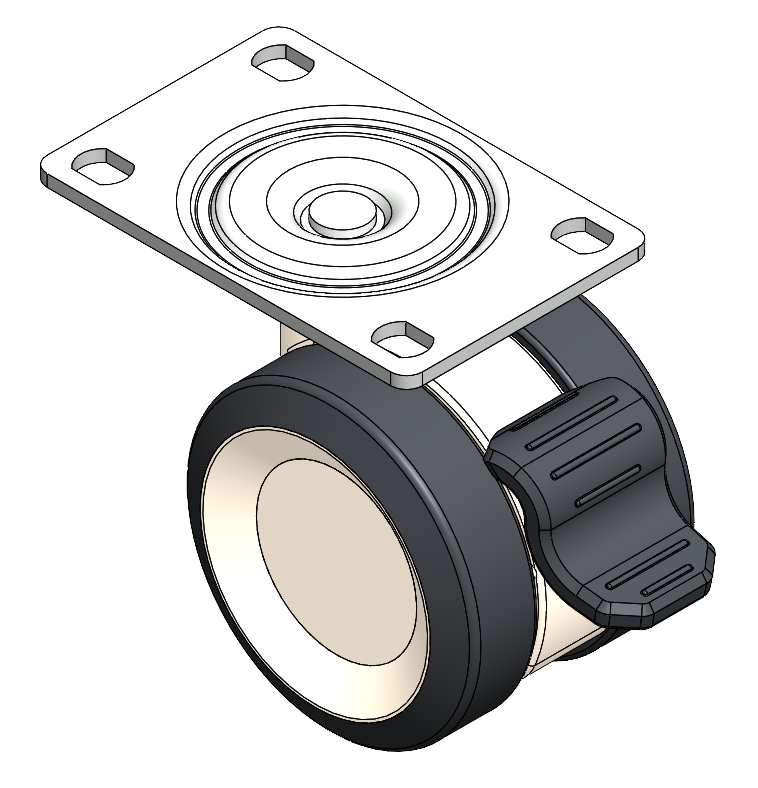

Single Brake locking system and a Fork-Riveted, injection-molded Fork. reinforced Polypropylene Fork with Fork-mount (3T) Mounting Type system Polypropylene (PP) Wheel Center, polyvinyl chloride (PVC) tread White-dark gray, wheel - Plain Bearing.
