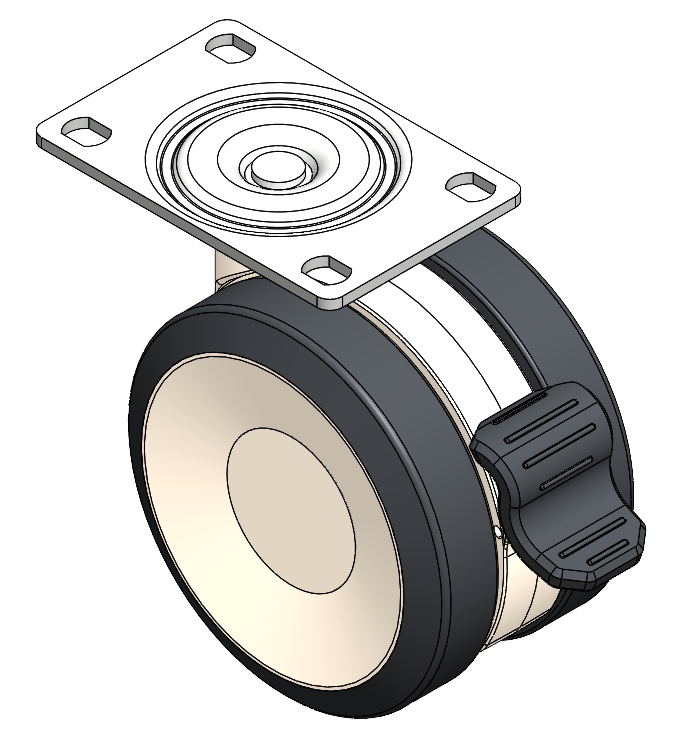

Picture may differ from original product
1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series (All Plastic)
Yoyo Wheel Plate (White dark gray) wheel diameter x wheel width 100 x 22mm
YJ-11100400244153
Wheel Diameter100mm 4＂
Load Capacity (Dynamic)100kgs 220lbs
Overall Height115mm 4-9/16＂
Wheel BearingWheels With Ball Bearings
- Single Brake locking system and a Fork-Riveted, injection-molded Fork.
- reinforced Polypropylene Fork with Fork-mount (3T) Mounting Type system
- Polypropylene (PP) Wheel Center, polyvinyl chloride (PVC) tread
- White-dark gray, Bearing—Ball Bearing.
- Wheel Tread: PVC polyvinyl chloride
- Wheel Center: PP polypropylene
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.
Product Data Sheet
- Wheel Diameter
- 100mm4＂
- Wheel Width
- 68mm2-3/4＂
- Wheel Bearing
- Wheels With Ball Bearings
- Plate Size
- 94 x 62mm3-3/4＂ x 2-1/2＂
- Bolt Hole Spacing
- 75 x 45mm3＂x 1-13/16＂
- Plate Hole
- 11.1 x 8.6mm3/8＂ x 3/8＂
- Offset
- 32mm1-5/16＂
- Swivel Interference
- 212mm8-1/2＂
- Overall Height
- 115mm4-9/16＂
- Swivel Radius
- 106mm4-1/4＂
- Hardness Of Tread
- 95±5° Shore A
- Load Capacity (Dynamic)
- 100kgs220lbs
- Load Capacity (Static)
- 150kgs331lbs
- Temperature
- -20°C to +60°C-4°F to +140°F
- Fork Type
- Swivel Caster With Wheel Brake
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.62kgs1.4lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
