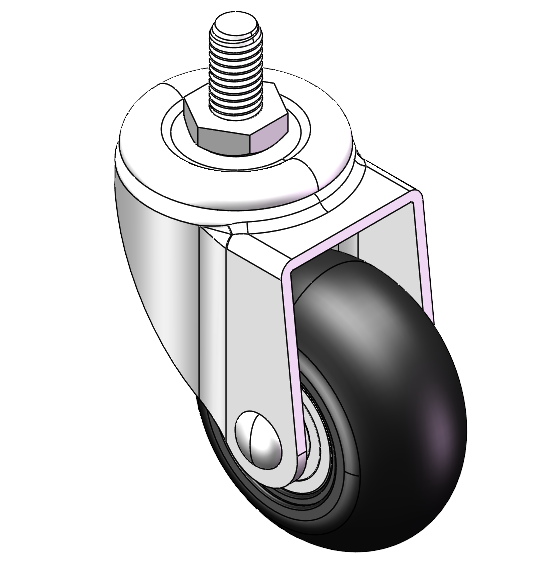

PU (black transparent) Wheel Diameter × Wheel Width 48 × 23.5mm

Picture may differ from original product

1110-2 Light Duty Wire & Shelving/Display Series

PU (black transparent) Wheel Diameter × Wheel Width 48 × 23.5mm

YJ-11100200955013

Wheel Diameter48mm　1-15/16＂

Load Capacity (Dynamic)30kgs　66lbs

Overall Height68mm　2-11/16＂

Wheel BearingWheels With Ball Bearings

Swivel Caster, thread-Riveted Stamping Fork—M8-P1.25
Zine-Plated, Mounting Type - Threaded Stem
Polypropylene core, High Quality Polyurethane Wheel Tread
Translucent black, Bearing—Ball Bearings.
Wheel surface: high quality polyurethane
Wheel Center:Polypropylene

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

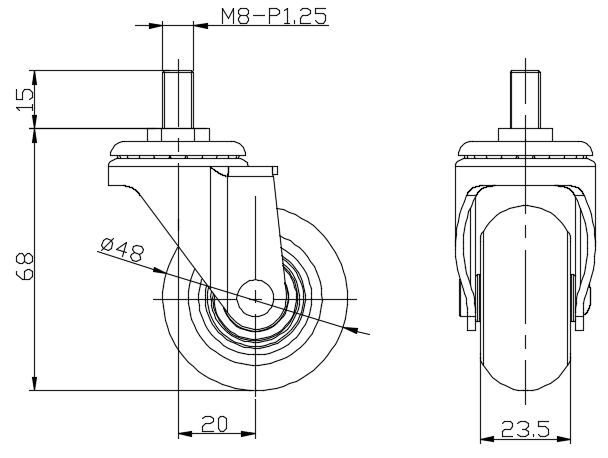

Product Data Sheet

Wheel Diameter: 48mm1-15/16＂
Wheel Width: 23.5mm15/16＂
Wheel Bearing: Wheels With Ball Bearings
Threaded Stem: M8-P1.25M8-P1.25
Threaded Length: 15mm5/8＂
Offset: 20mm13/16＂

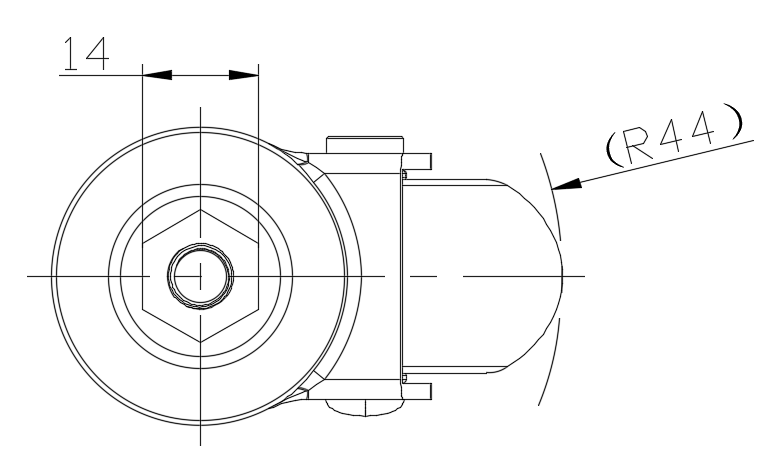

Swivel Interference: 44mm1-3/4＂
Overall Height: 68mm2-11/16＂
Swivel Radius: 88mm3-1/2＂
Hardness Of Tread: 80±5° Shore A
Load Capacity (Dynamic): 30kgs66lbs
Load Capacity (Static): 45kgs99lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.16kgs0.4lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
