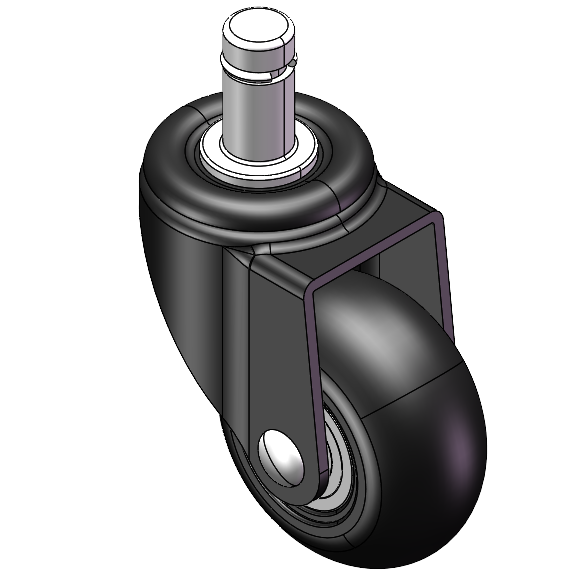

Picture may differ from original product
1110-2 Light Duty Wire & Shelving/Display Series
PU (black transparent) Wheel Diameter × Wheel Width 48 × 23.5mm
YJ-11100200957014
Wheel Diameter48mm 1-15/16＂
Load Capacity (Dynamic)30kgs 66lbs
Overall Height68mm 2-11/16＂
Wheel BearingWheels With Ball Bearings
- Swivel Caster with Riveted Stamping Fork—Ø11x22L
- Electroplated surface, Mounting Type - Cylindrical Stem with brass buckle
- Polypropylene core, High Quality Polyurethane Wheel Tread
- Translucent black finish, Bearing—Ball Bearings.
- Wheel surface: high quality polyurethane
- Wheel Center:Polypropylene
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

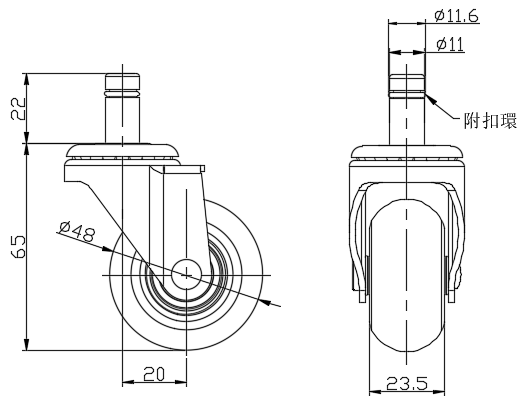

Product Data Sheet
- Wheel Diameter
- 48mm1-15/16＂
- Wheel Width
- 23.5mm15/16＂
- Wheel Bearing
- Wheels With Ball Bearings
- Stem Diameter
- 11mm3/8＂
- Stem Length
- 22mm7/8＂
- Offset
- 20mm13/16＂
- Swivel Interference
- 88mm3-1/2＂
- Overall Height
- 68mm2-11/16＂

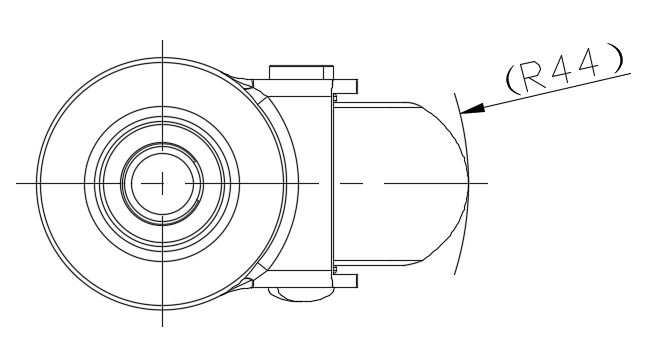

- Swivel Radius
- 44mm1-3/4＂
- Hardness Of Tread
- 80±5° Shore A
- Load Capacity (Dynamic)
- 30kgs66lbs
- Load Capacity (Static)
- 45kgs99lbs
- Temperature
- -20°C to +70°C-4°F to +158°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.17kgs0.4lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
