Picture may differ from original product

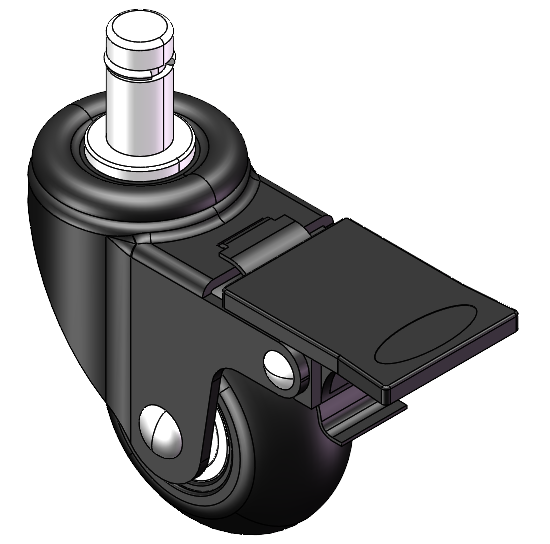

1110-2 Light Duty Wire & Shelving/Display Series
PU (black transparent) Wheel Diameter × Wheel Width 48 × 23.5mm
YJ-11100200958014
Wheel Diameter48mm 1-15/16＂
Load Capacity (Dynamic)30kgs 66lbs
Overall Height65mm 2-9/16＂
Wheel BearingWheels With Ball Bearings
- Casters with a Wheel Brake With locking system. Stamping, Riveted Fork—Ø11x22L.
- Electroplated surface, Mounting Type - Cylindrical Stem with brass buckle.
- Polypropylene core, High Quality Polyurethane Wheel Tread.
- Translucent black finish. Bearings—Ball Bearings.
- Wheel surface: high quality polyurethane
- Wheel Center:Polypropylene
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

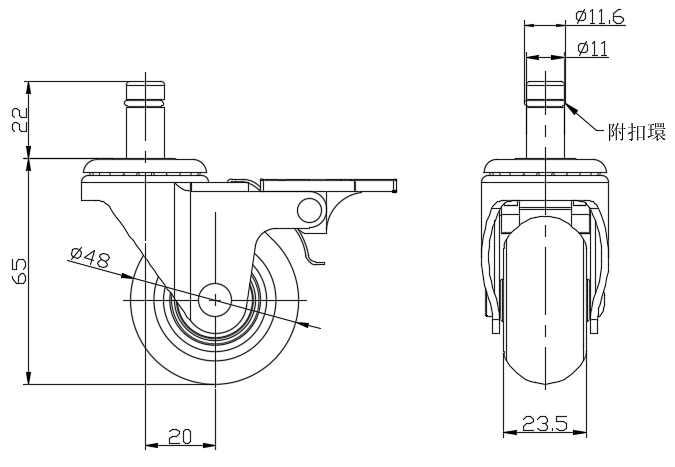

Product Data Sheet
- Wheel Diameter
- 48mm1-15/16＂
- Wheel Width
- 23.5mm15/16＂
- Wheel Bearing
- Wheels With Ball Bearings
- Stem Diameter
- 11mm3/8＂
- Stem Length
- 22mm7/8＂
- Offset
- 20mm13/16＂
- Swivel Interference
- 146mm5-13/16＂
- Overall Height
- 65mm2-9/16＂

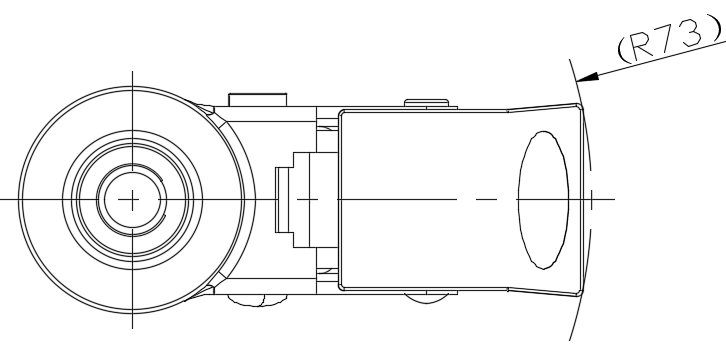

- Swivel Radius
- 73mm2-15/16＂
- Hardness Of Tread
- 80±5° Shore A
- Load Capacity (Dynamic)
- 30kgs66lbs
- Load Capacity (Static)
- 45kgs99lbs
- Temperature
- -20°C to +70°C-4°F to +158°F
- Fork Type
- Swivel Caster With Wheel Brake
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.19kgs0.4lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
