    Product Data Sheet

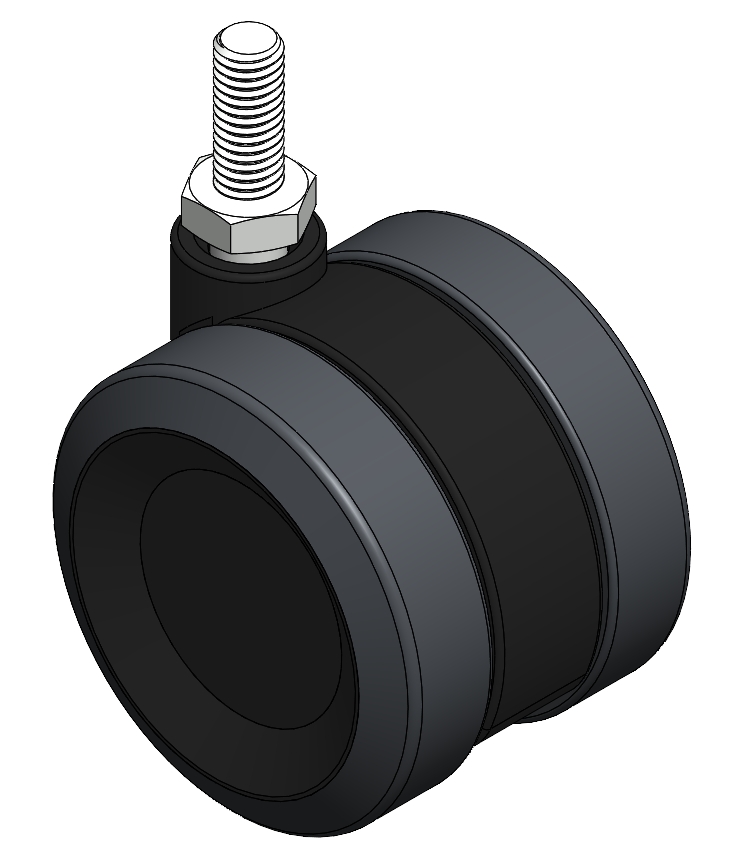

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)
　　Yoyo Wheel (black dark gray) Wheel Diameter x Wheel Width 72.8 x 20mm
　　EAN
　　　　　 　　　
　　YJ-11100300245073 　　　
Swivel Caster, thread-Riveted Injection Molding Fork - 3/8"-16"
reinforced Polypropylene Fork, Mounting Type - Threaded Stem
Polypropylene (PP) core, polyvinyl chloride (PVC) Wheel Tread
Dark gray, wheel - Plain Bearing.
　　Wheel surface: PVC polyvinyl chloride
　　Wheel Center: PP polypropylene

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 72.8mm　
　　Wheel Width 63mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Threaded Stem 3/8＂-16
　　Threaded Size 25mm
　　Offset 25.4mm　
　　Swivel Interference 136mm　
　　Overall Height 83mm　
　　Swivel Radius 68mm　
　　Hardness Of Tread 95±5° Shore A　
　　Load Capacity (Dynamic) 45kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 67.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.23kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com


　　　　　　　　　　　　關　　聯　　產　　品

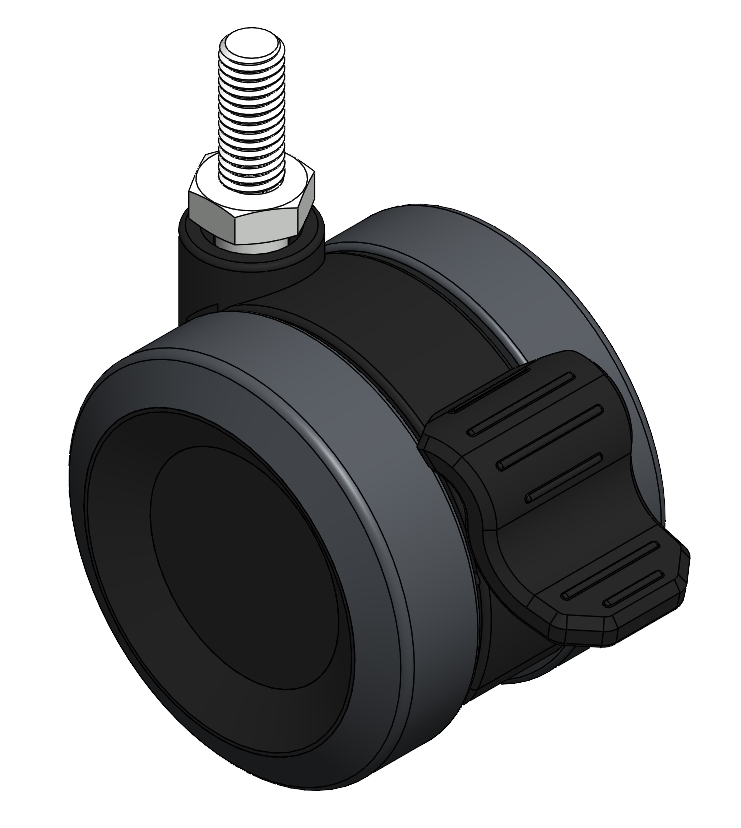

  1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)
   Yoyo Wheel (black dark gray) Wheel Diameter x Wheel Width 72.8 x 20mm


   YJ-11100300246253

         72.8 mm         45 Kgs         83 mm

Caster with a single-brake With locking system, thread-Riveted, Injection Molding Fork (3/8"-16).
reinforced Polypropylene Fork, Mounting Type - Threaded Stem.
Polypropylene (PP) core, polyvinyl chloride (PVC) Wheel Tread.
Dark gray, Plain Bearing.
