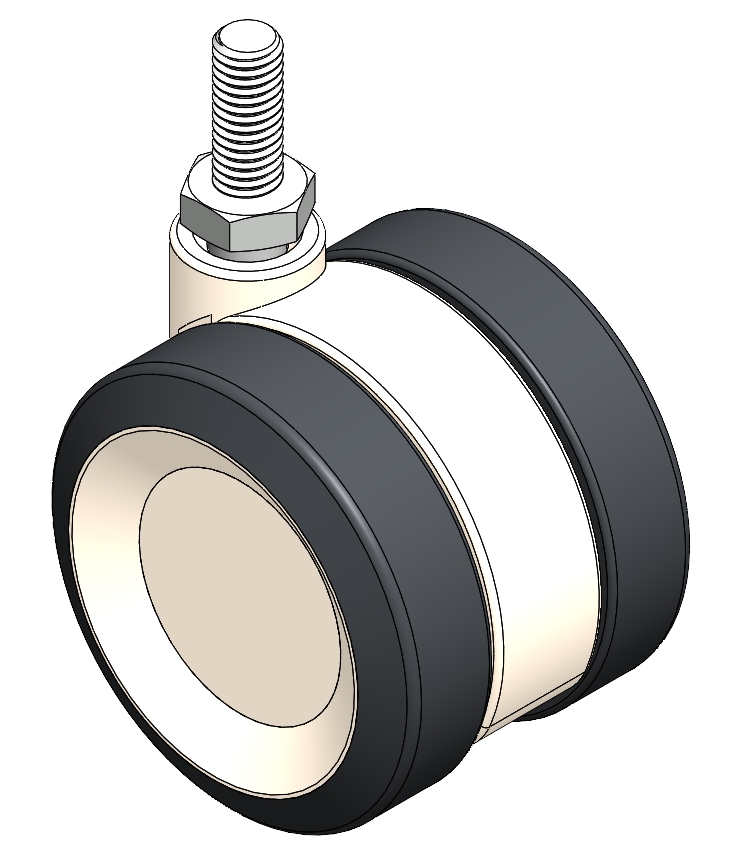

Picture may differ from original product
1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series (All Plastic)
Yoyo Wheel (light dark gray) Wheel Diameter x Wheel Width 72.8 x 20mm
YJ-11100300245083
Wheel Diameter72.8mm 2-15/16
Load Capacity (Dynamic)45kgs 99lbs
Overall Height83mm 3-5/16＂
Wheel BearingWheel With Plain Bearing
- Swivel Caster with a 3/8"-16" thread-Riveted Injection Molding Fork.
- reinforced Polypropylene Fork with Mounting Type - Threaded Stem.
- Polypropylene (PP) core, polyvinyl chloride (PVC) Wheel Tread.
- White-dark gray, Plain Bearing.
- Wheel surface: PVC polyvinyl chloride
- Wheel Center: PP polypropylene
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

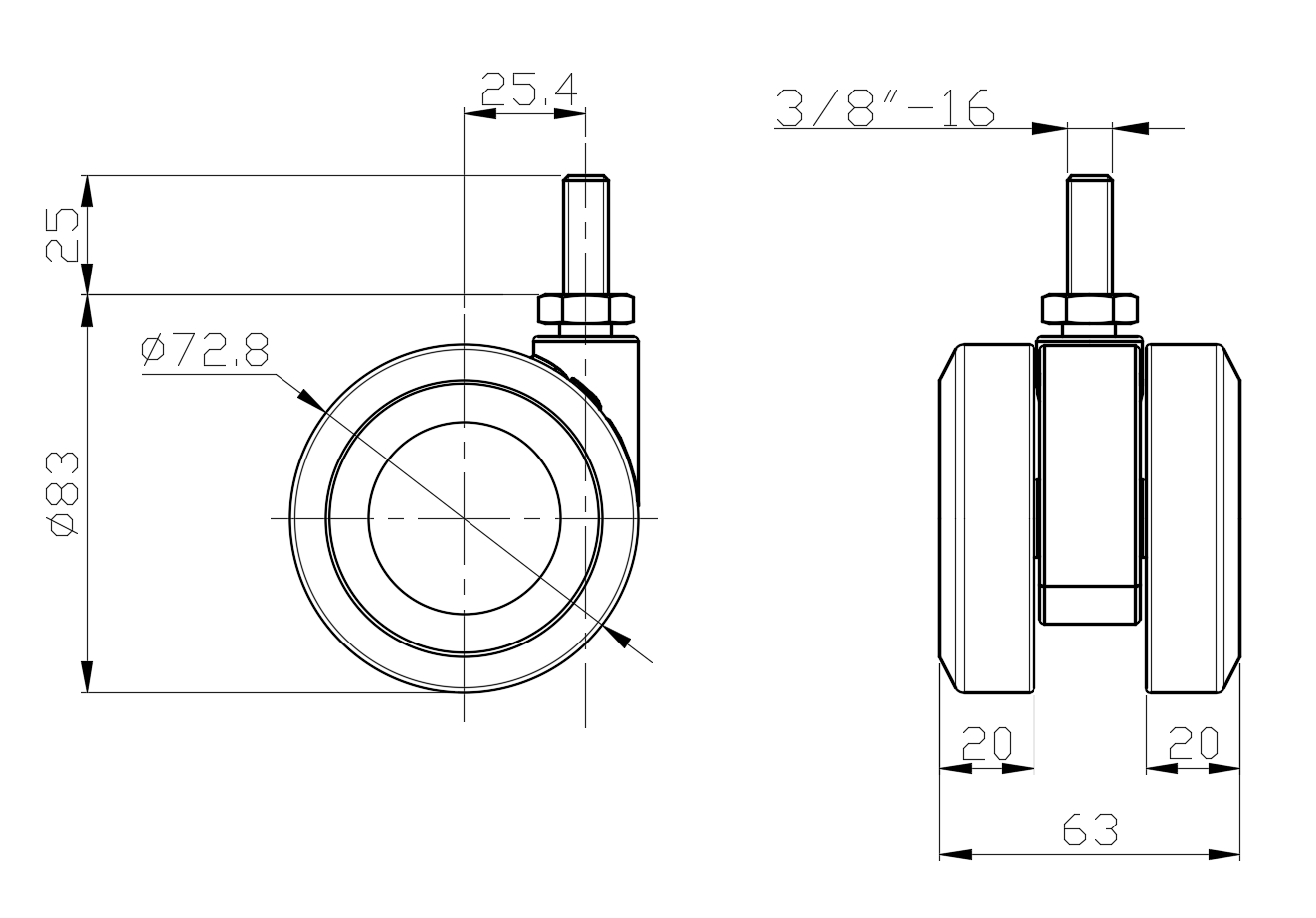

Product Data Sheet
- Wheel Diameter
- 72.8mm2-15/16
- Wheel Width
- 63mm2-1/2＂
- Wheel Bearing
- Wheel With Plain Bearing
- Threaded Stem
- 3/8＂-16。3/8＂-16。
- Threaded Length
- 25mm1＂
- Offset
- 25.4mm1＂
- Swivel Interference
- 136mm5-7/16＂
- Overall Height
- 83mm3-5/16＂

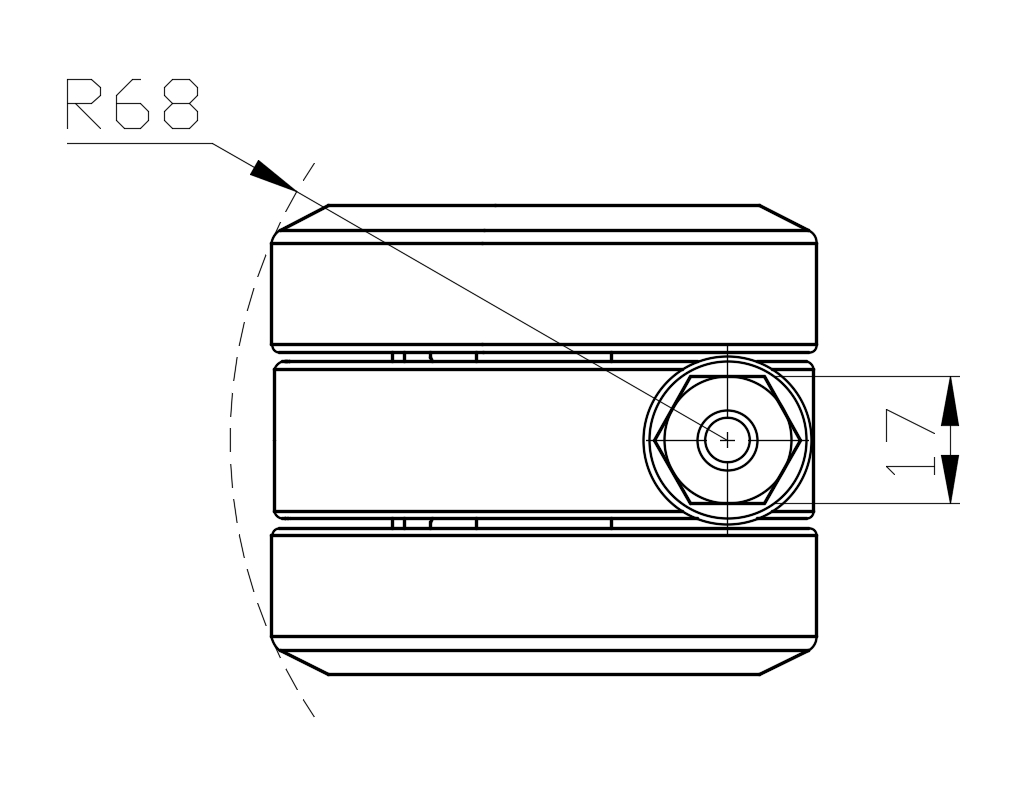

- Swivel Radius
- 68mm2-11/16＂
- Hardness Of Tread
- 95±5° Shore A
- Load Capacity (Dynamic)
- 45kgs99lbs
- Load Capacity (Static)
- 67.5kgs149lbs
- Temperature
- -20°C to +60°C-4°F to +140°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.23kgs0.5lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
