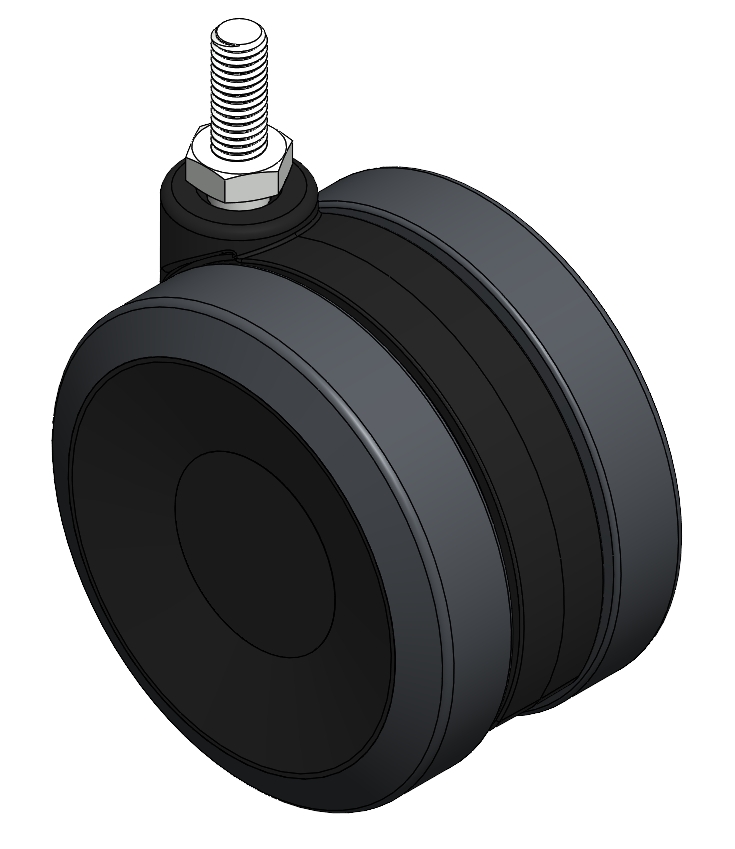

Yoyo Wheel (black dark gray) Wheel Diameter x Wheel Width 100 x 22mm

Picture may differ from original product

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)

Yoyo Wheel (black dark gray) Wheel Diameter x Wheel Width 100 x 22mm

YJ-11100400245053

Wheel Diameter100mm　4＂

Load Capacity (Dynamic)100kgs　220lbs

Overall Height108.5mm　4-5/16＂

Wheel BearingWheels With Ball Bearings

Swivel Caster, thread-Riveted Injection Molding Fork - 3/8"-16"
reinforced Polypropylene Fork, Mounting Type - Threaded Stem
Polypropylene (PP) core, polyvinyl chloride (PVC) Wheel Tread
Dark gray, Bearing - Ball Bearings.
Wheel surface: PVC polyvinyl chloride
Wheel Center: PP polypropylene

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

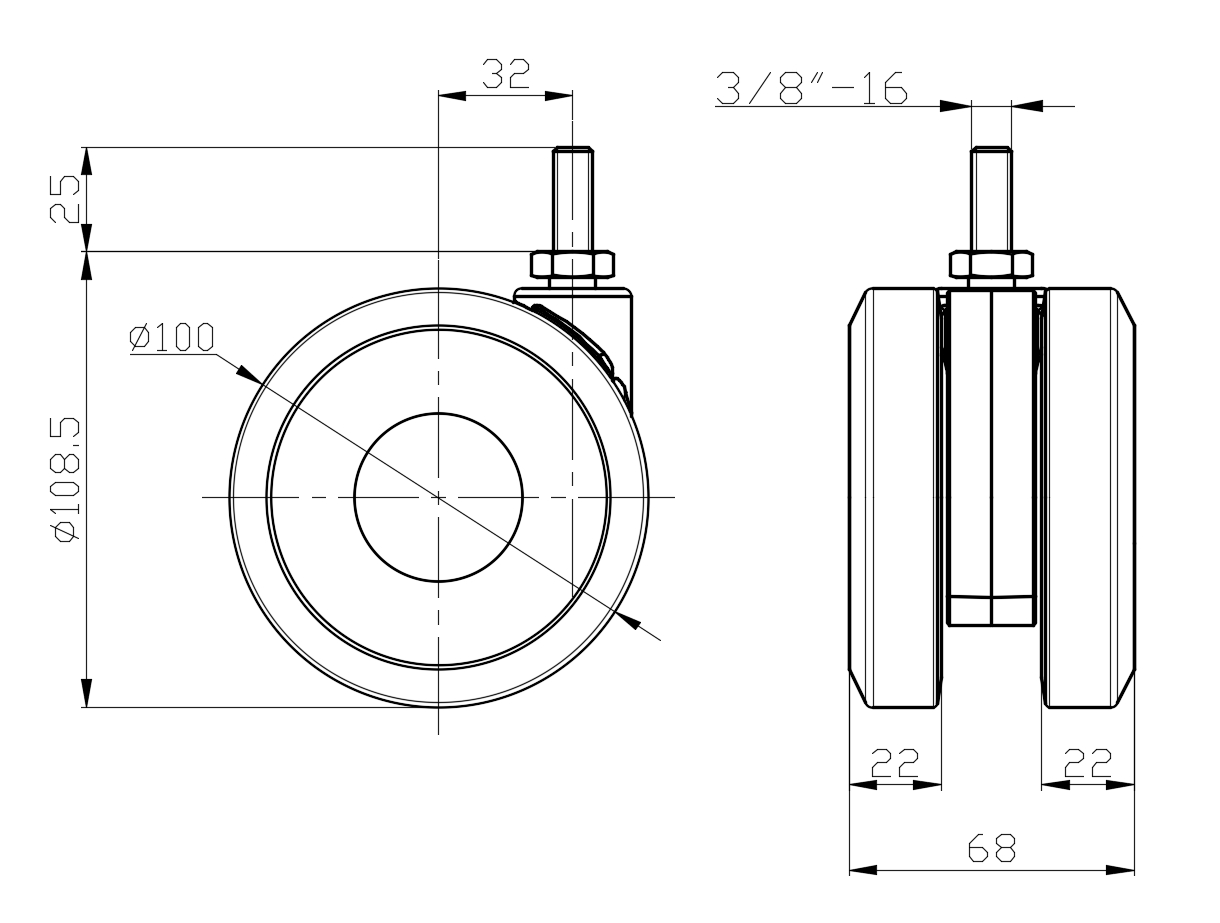

Product Data Sheet

Wheel Diameter: 100mm4＂
Wheel Width: 68mm2-3/4＂
Wheel Bearing: Wheels With Ball Bearings
Threaded Stem: 3/8＂-163/8＂-16
Threaded Length: 25mm1＂
Offset: 32mm1-5/16＂
Swivel Interference: 176mm7＂
Overall Height: 108.5mm4-5/16＂

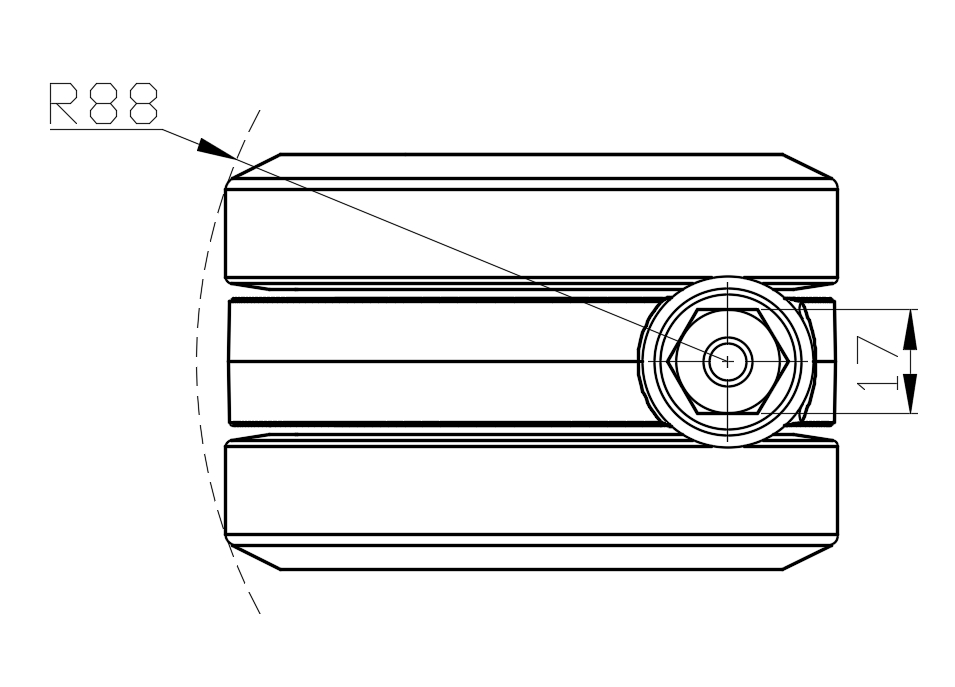

Swivel Radius: 88mm3-1/2＂
Hardness Of Tread: 95±5° Shore A
Load Capacity (Dynamic): 100kgs220lbs
Load Capacity (Static): 150kgs331lbs
Temperature: -20°C to +60°C-4°F to +140°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.48kgs1.1lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
