    Product Data Sheet

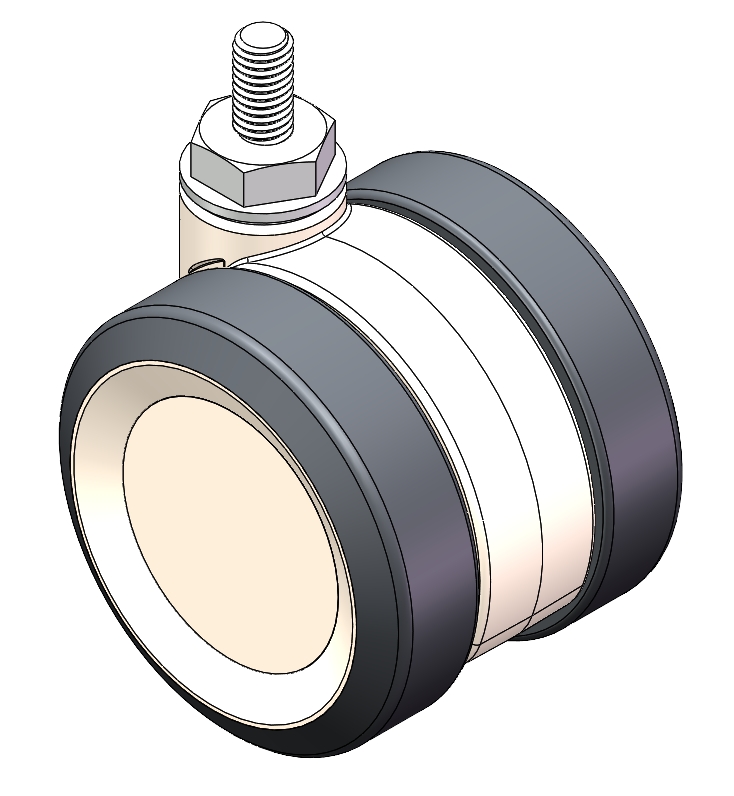

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)
　　Yoyo Wheel (light dark gray) Wheel Diameter x Wheel Width 65 x 18mm
　　EAN
　　　　　 　　　
　　YJ-11100250245023 　　　
Swivel Caster, thread-Riveted injection-molded Fork - M8-P1.75 reinforced Polypropylene Fork, Mounting Type - Threaded Stem Polypropylene (PP) core, polyvinyl chloride (PVC) tread White-dark gray, wheel - Plain Bearing.
　　Wheel Tread: PVC polyvinyl chloride
　　Wheel Center: PP polypropylene

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 65mm　

　　Wheel Width 59mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Threaded Stem M8-P1.75
　　Threaded Length 15mm
　　Offset 20mm　
　　Swivel Interference 118mm　
　　Overall Height 75mm　
　　Swivel Radius 59mm　
　　Hardness Of Tread 95±5° Shore A　
　　Load Capacity (Dynamic) 45kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 67.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.18kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

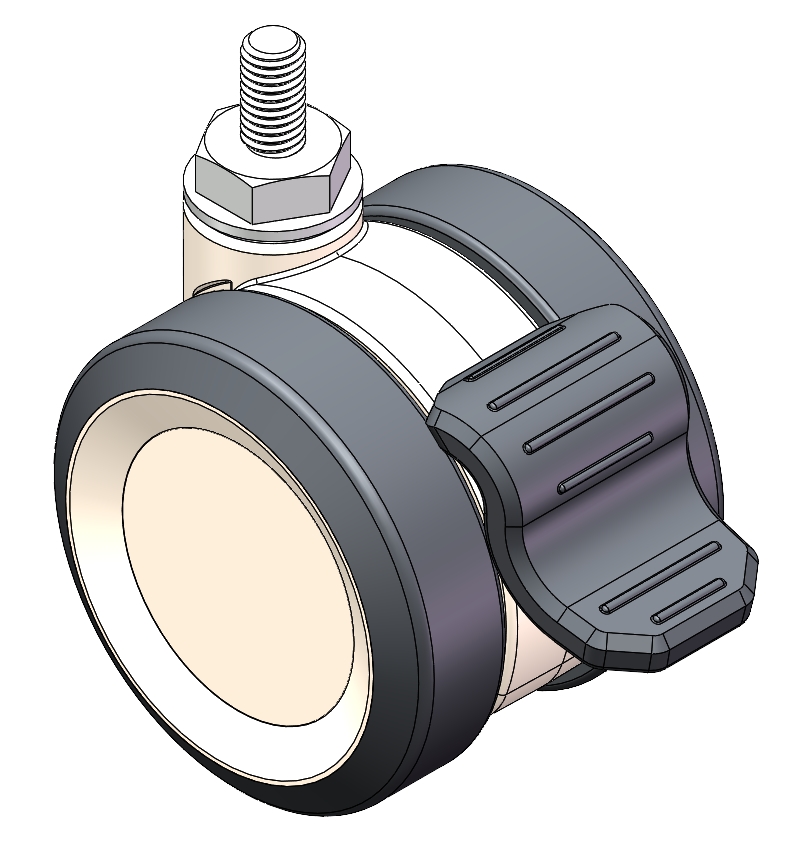

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)
