PU (black transparent) Wheel Diameter × Wheel Width 64 × 23.5mm

Picture may differ from original product

1110-2 Light Duty Wire & Shelving/Display Series

PU (black transparent) Wheel Diameter × Wheel Width 64 × 23.5mm

YJ-11100250955014

Wheel Diameter64mm　2-9/16

Load Capacity (Dynamic)40kgs　88lbs

Overall Height83mm　3-5/16＂

Wheel BearingWheels With Ball Bearings

Swivel Caster, thread-Riveted Stamping Fork—M8-P1.25
Surface electroplating, Mounting Type - Threaded Stem
Polypropylene core, High Quality Polyurethane Wheel Tread
Translucent black, Bearing—Ball Bearings.
Wheel surface: high quality polyurethane
Wheel Center:Polypropylene

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet (Metric) Product Data Sheet (Imperial) 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

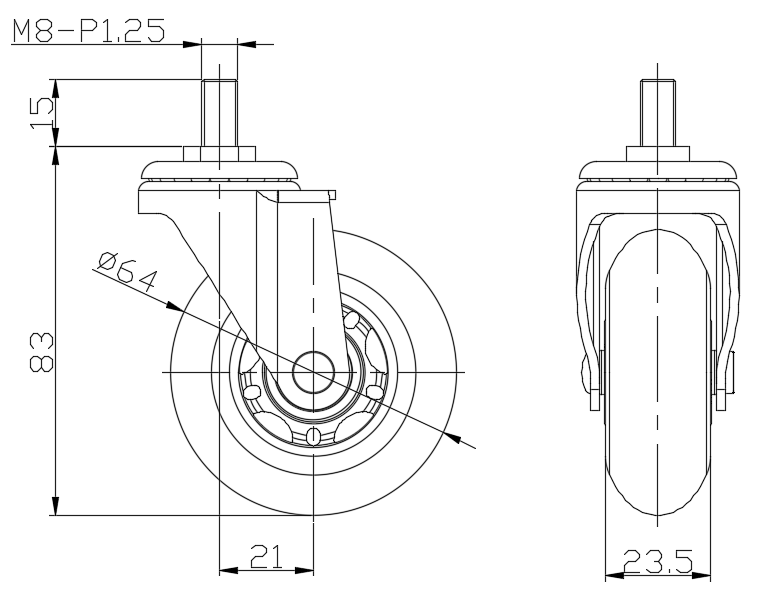

Wheel Diameter: 64mm2-9/16
Wheel Width: 23.5mm15/16＂
Wheel Bearing: Wheels With Ball Bearings
Threaded Stem: M8-P1.25M8-P1.25
Threaded Length: 15mm5/8＂
Offset: 21mm7/8＂
Swivel Interference: 106mm4-1/4＂
Overall Height: 83mm3-5/16＂

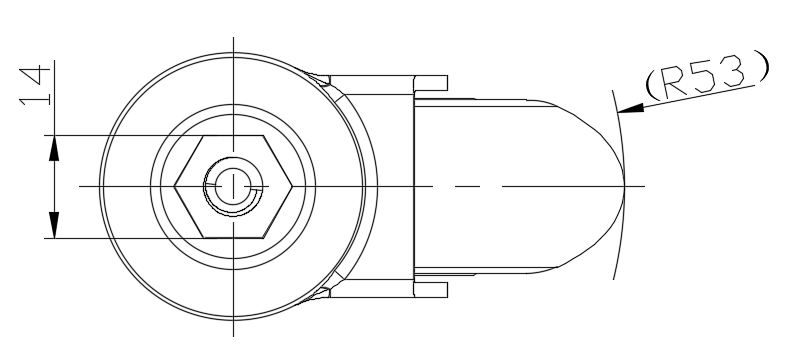

Swivel Radius: 53mm2-1/8＂
Hardness Of Tread: 80±5° Shore A
Load Capacity (Dynamic): 40kgs88lbs
Load Capacity (Static): 60kgs132lbs
Temperature: -20°C to +70°C-4°F to +158°F
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.18kgs0.4lbs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling SmoothnessMax. 5 pointsScore: 5

Quiet OperationMax. 5 pointsScore: 5

Floor Surface PreservationMax. 5 pointsScore: 5
