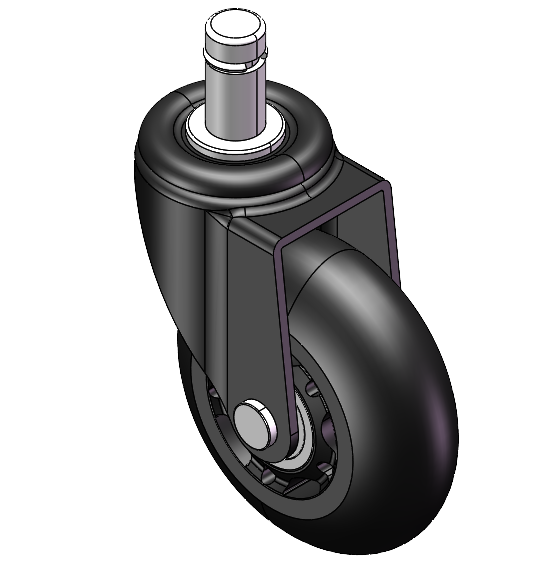

Picture may differ from original product
1110-2 Light Duty Wire & Shelving/Display Series
PU (black transparent) Wheel Diameter × Wheel Width 64 × 23.5mm
YJ-11100250957014
Wheel Diameter64mm 2-9/16
Load Capacity (Dynamic)40kgs 88lbs
Overall Height80mm 3-3/16＂
Wheel BearingWheels With Ball Bearings
- Swivel Caster with Riveted Stamping Fork—Ø11x22L
- Electroplated surface, Mounting Type - Cylindrical Stem with brass buckle
- Polypropylene core, High Quality Polyurethane Wheel Tread
- Translucent black finish, Bearing—Ball Bearings.
- Wheel surface: high quality polyurethane
- Wheel Center:Polypropylene
Product descriptions are for reference only. The actual product shall prevail.

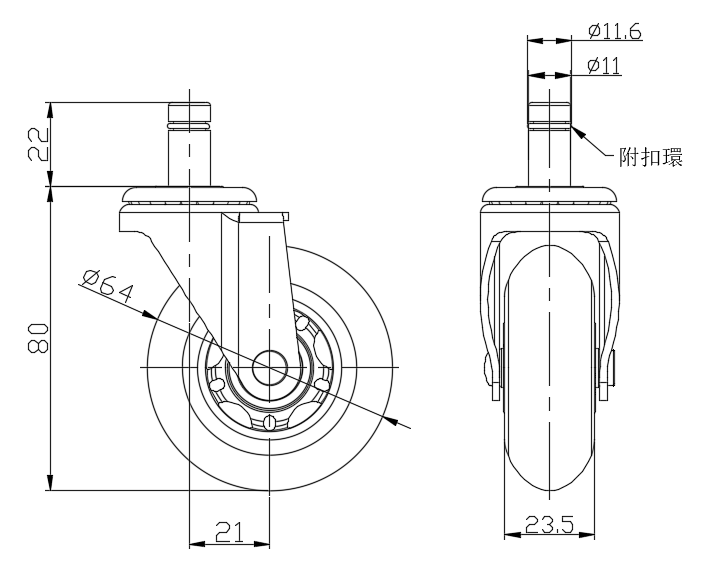

3D drawings are for members only. Please log in to download.
Product Data Sheet
- Wheel Diameter
- 64mm2-9/16
- Wheel Width
- 23.5mm15/16＂
- Wheel Bearing
- Wheels With Ball Bearings
- Stem Diameter
- 11mm3/8＂
- Stem Length
- 22mm7/8＂
- Offset
- 21mm7/8＂
- Swivel Interference
- 106mm4-1/4＂
- Overall Height
- 80mm3-3/16＂
- Swivel Radius
- 53mm2-1/8＂
- Hardness Of Tread
- 80±5° Shore A
- Load Capacity (Dynamic)
- 40kgs88lbs
- Load Capacity (Static)
- 60kgs132lbs
- Temperature
- -20°C to +70°C-4°F to +158°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.19kgs0.4lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
