    Product Data Sheet
1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)
　　Yoyo Wheel (light dark gray) Wheel Diameter x Wheel Width 72.8 x 20mm
　　EAN
　　　　　 　　　
　　YJ-11100300247023 　　　
Swivel Caster, Cylindrical Stem injection-molded Fork - Ø11x22L reinforced Polypropylene Fork, insert-type Mounting Type mechanism Polypropylene (PP) core, polyvinyl chloride (PVC) tread White-dark gray, wheel - Plain Bearing.
　　Wheel Tread: PVC polyvinyl chloride
　　Wheel Center: PP polypropylene

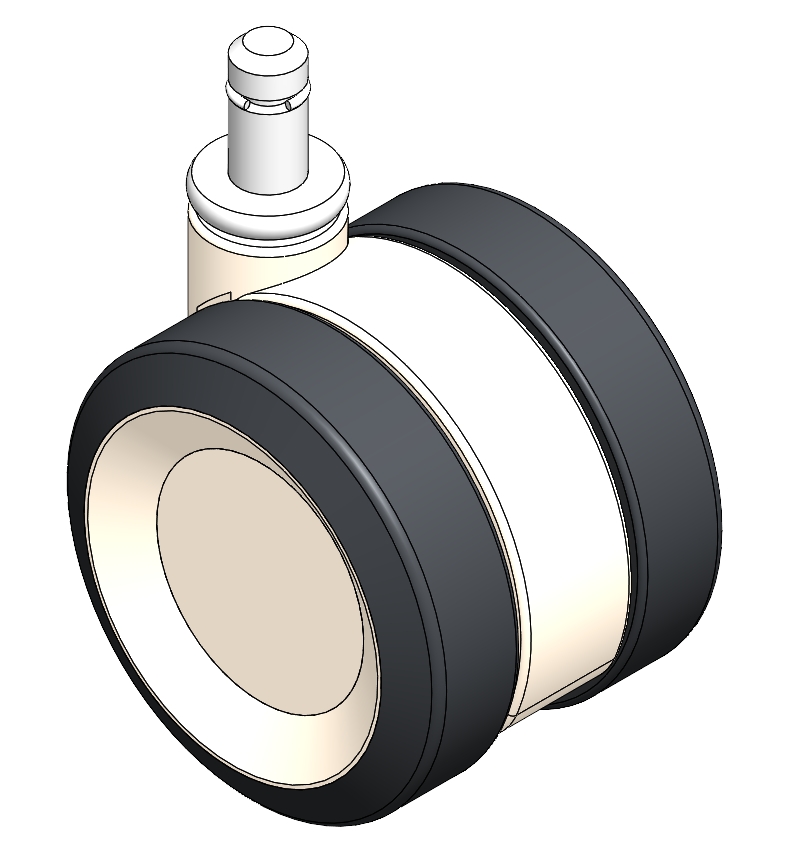

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 72.8mm　

　　Wheel Width 63mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Stem Diameter 11mm　
　　Stem Length 22mm　
　　Offset 25.4mm　
　　Swivel Interference 136mm　
　　Overall Height 80mm　
　　Swivel Radius 68mm　
　　Hardness Of Tread 95±5° Shore A　
　　Load Capacity (Dynamic) 45kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 67.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.23kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

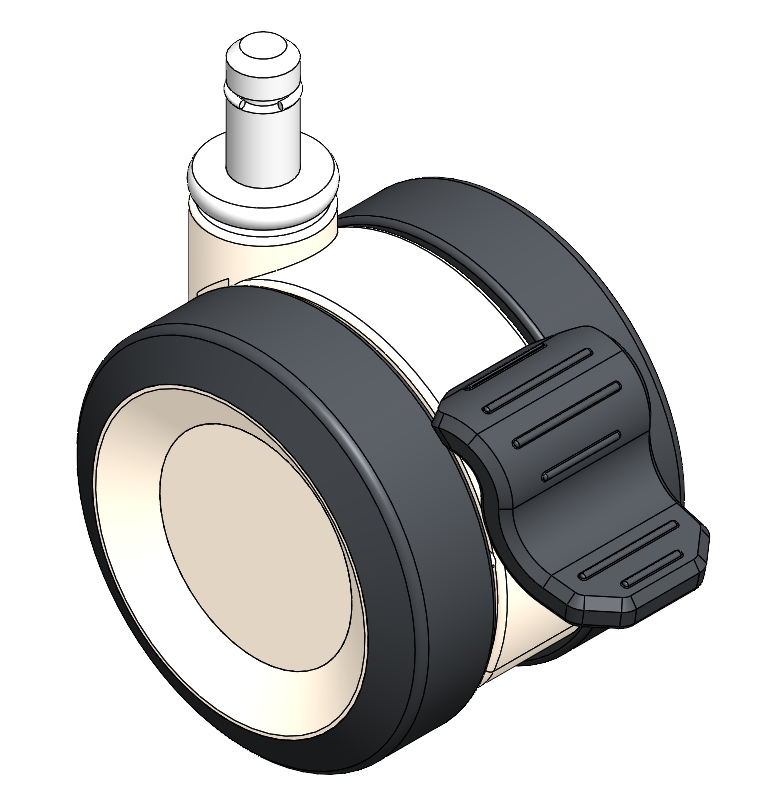

1110-YOYO YOYO Series-Light Duty Twin Wheel Caster Series　(All Plastic)
