MRC (Transparent) Wheel Diameter × Wheel Width 150 x 40mm

Picture may differ from original product

1124 1-1/2" Wide General Purposes Caster Series

MRC (Transparent) Wheel Diameter × Wheel Width 150 x 40mm

YJ-11240600071073

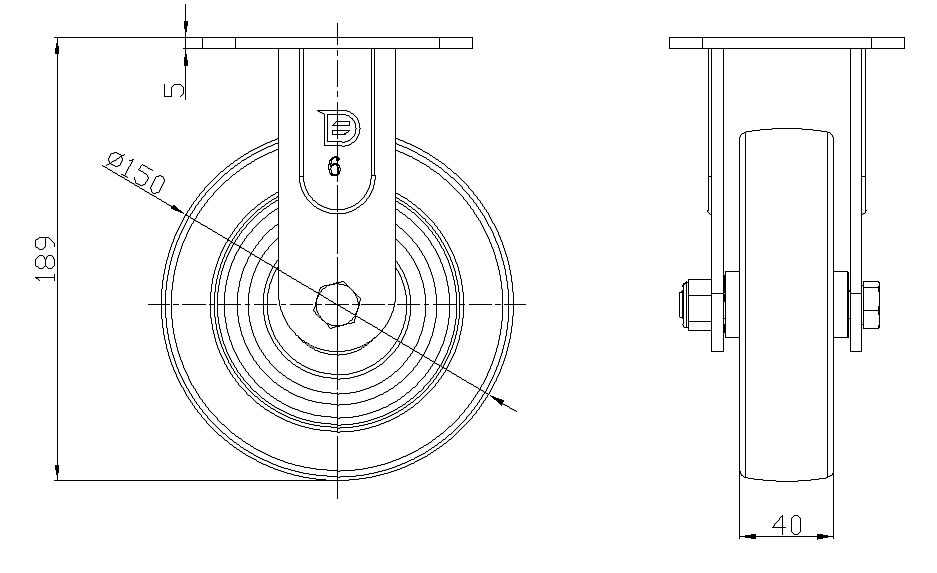

Wheel Diameter150mm　

Load Capacity (Dynamic)350kgs　

Overall Height189mm　

Wheel BearingWheels With Ball Bearings

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

Product Data Sheet

Wheel Diameter: 150mm
Wheel Width: 40mm
Wheel Bearing: Wheels With Ball Bearings

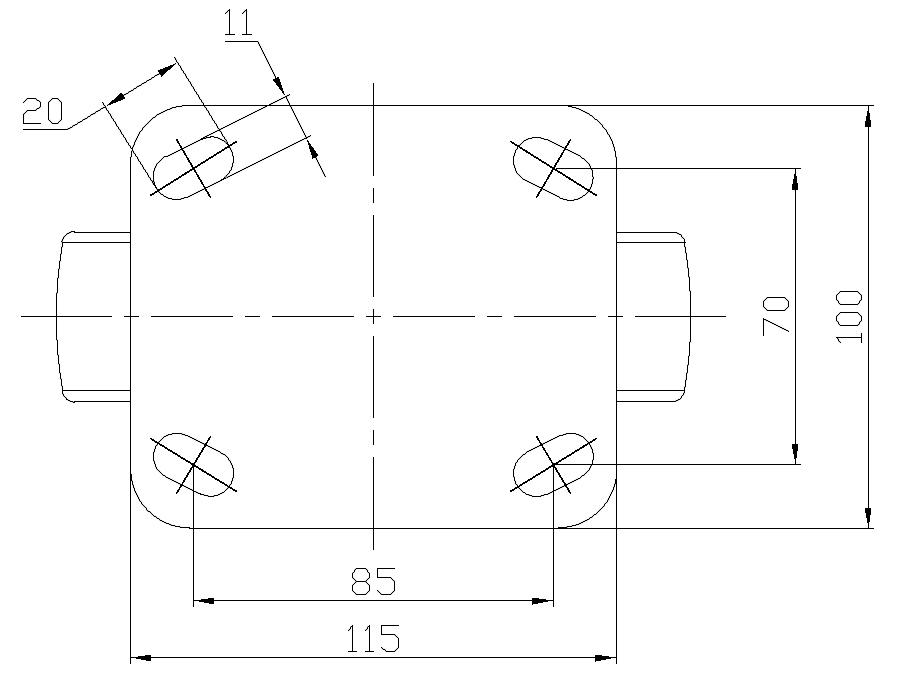

Plate Size: 115 x 100mm
Bolt Hole Spacing: 85 x 70mm
Plate Hole: 20 x 11mm
Overall Height: 189mm
Hardness Of Tread: 75±5° Shore D
Load Capacity (Dynamic): 350kgs
Load Capacity (Static): 525kgs
Temperature: -20°C to +80°C
Fork Type: Rigid Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 1.64kgs
Standard: ISO22883

* For any deviation between metric and imperial spec, please refer to the metric spec.
