W Resolute Wheel Diameter × Wheel Width 100 x 31mm

TW-4112904002011

Wheel Diameter100mm　

Load Capacity (Dynamic)125kgs　

Overall Height139mm　

Wheel BearingWheels With Ball Bearings

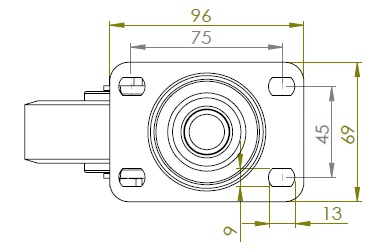

Swivel Caster with Riveted Fork and Stamping Fork – 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing
Zine-Plated, Top Plate (3T) Mounting Type system
Reinforced, impact-resistant polypropylene core with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray, Bearing – Ball Bearings.
Wheel tread: Thermoplastic rubber elastomer (TPR)
Wheel Center: high-quality impact-resistant polypropylene

Product descriptions are for reference only. The actual product shall prevail.

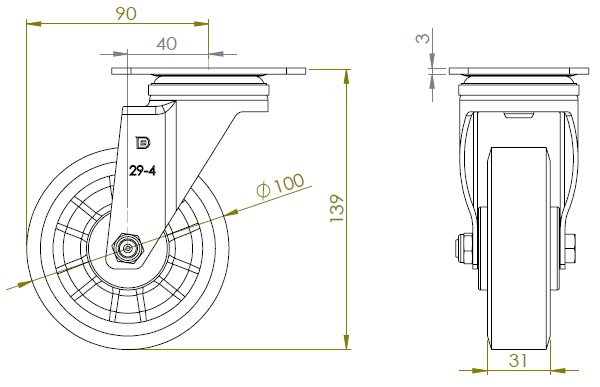

3D drawings are for members only. Please log in to download.

Product Data Sheet

* For any deviation between metric and imperial spec, please refer to the metric spec.

Rolling Resistance

Operating Noise　

Floor Surface Preservation
