    Product Data Sheet
1141 Kingpinless Caster Series
　　MRC (Transparent) Wheel Diameter × Wheel Width 100 x 32mm
　　EAN
　　　　　 KS-11410400074023
　　　　　 　　　

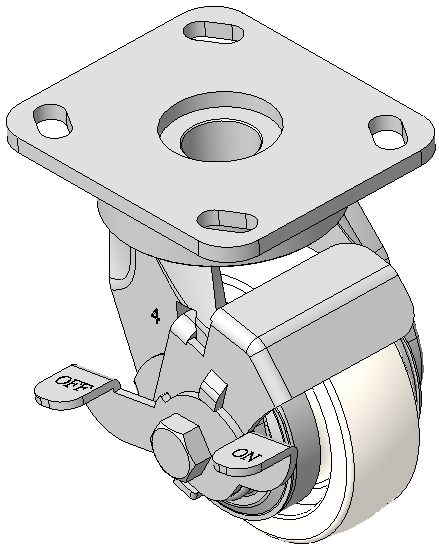

Casters with Side Brakes and With locking system, Welded Caster Fork
Zine-Plated, Mounting Type - Top Plate, 85x70 Bolt Hole Spacing
Reinforced Polypropylene Wheel Center, natural Wheel Tread
Bearings—Ball Bearings with special Anti-thread wheel cover
　　Wheel tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

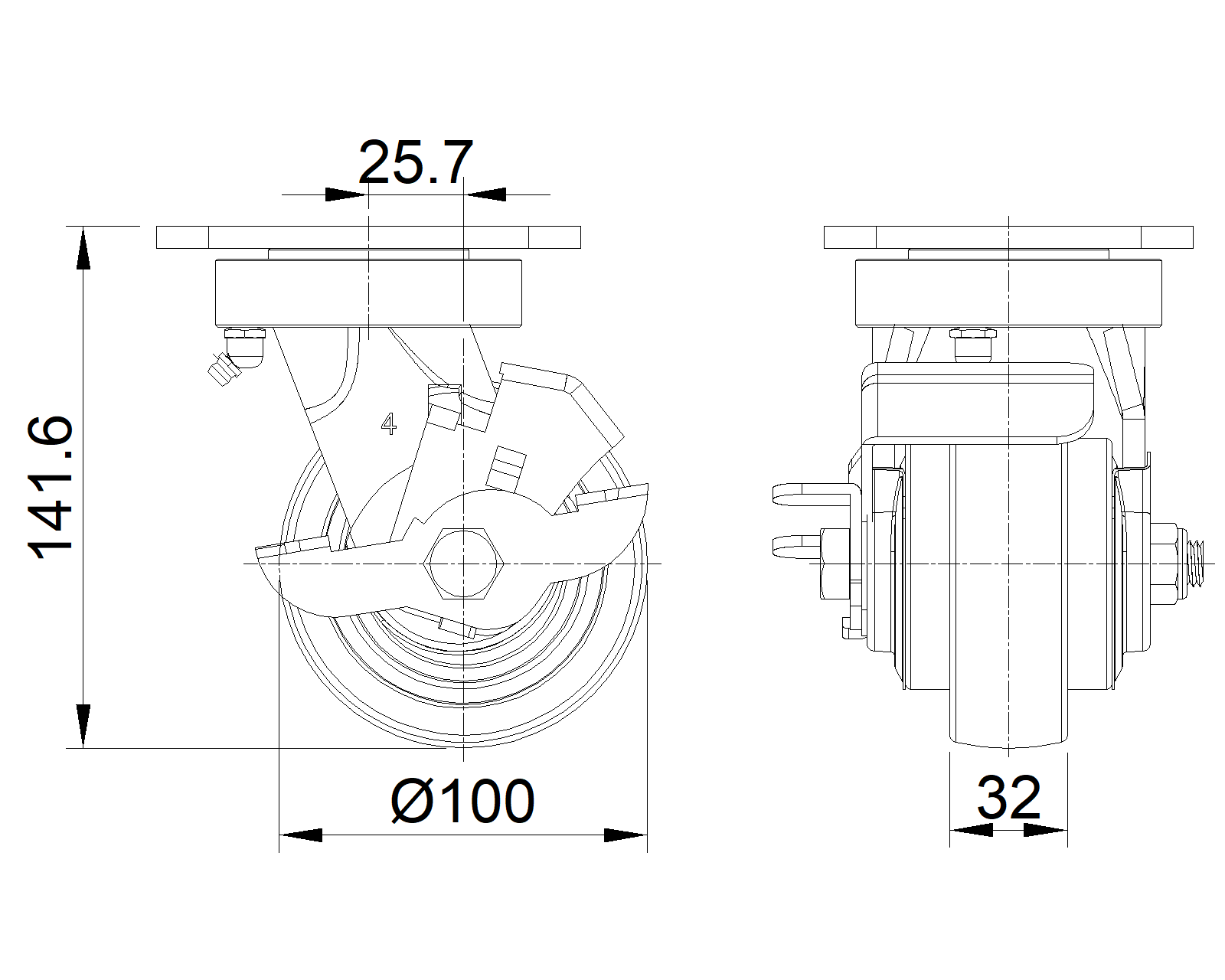

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　
　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings

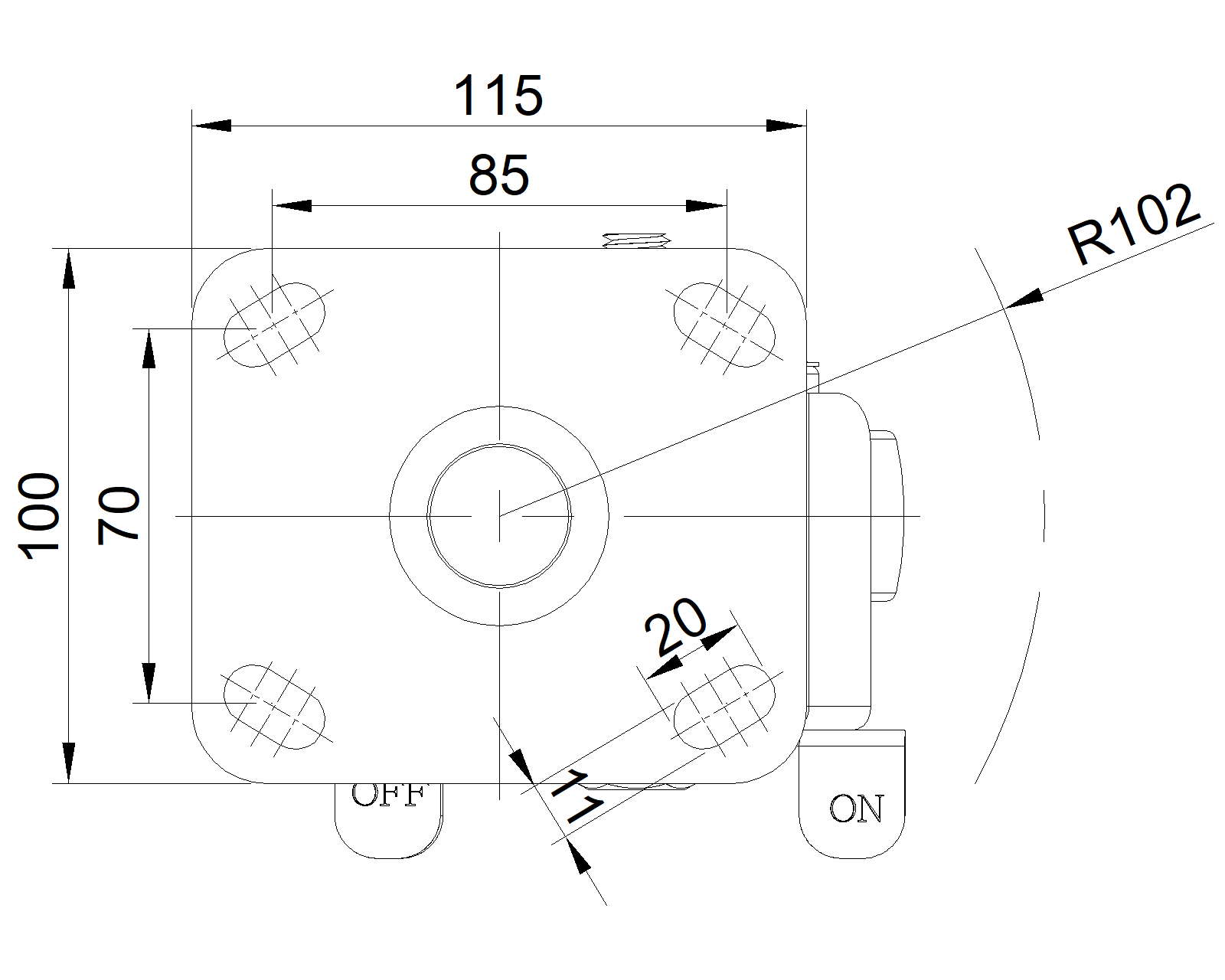

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 25.7mm　
　　Swivel Interference 204mm　
　　Overall Height 141.6mm　
　　Swivel Radius 102mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.98kgs　
　　Standard ISO22883
　　
　　
