1146 46 Ascendant Series Caster Series(All Plastic)

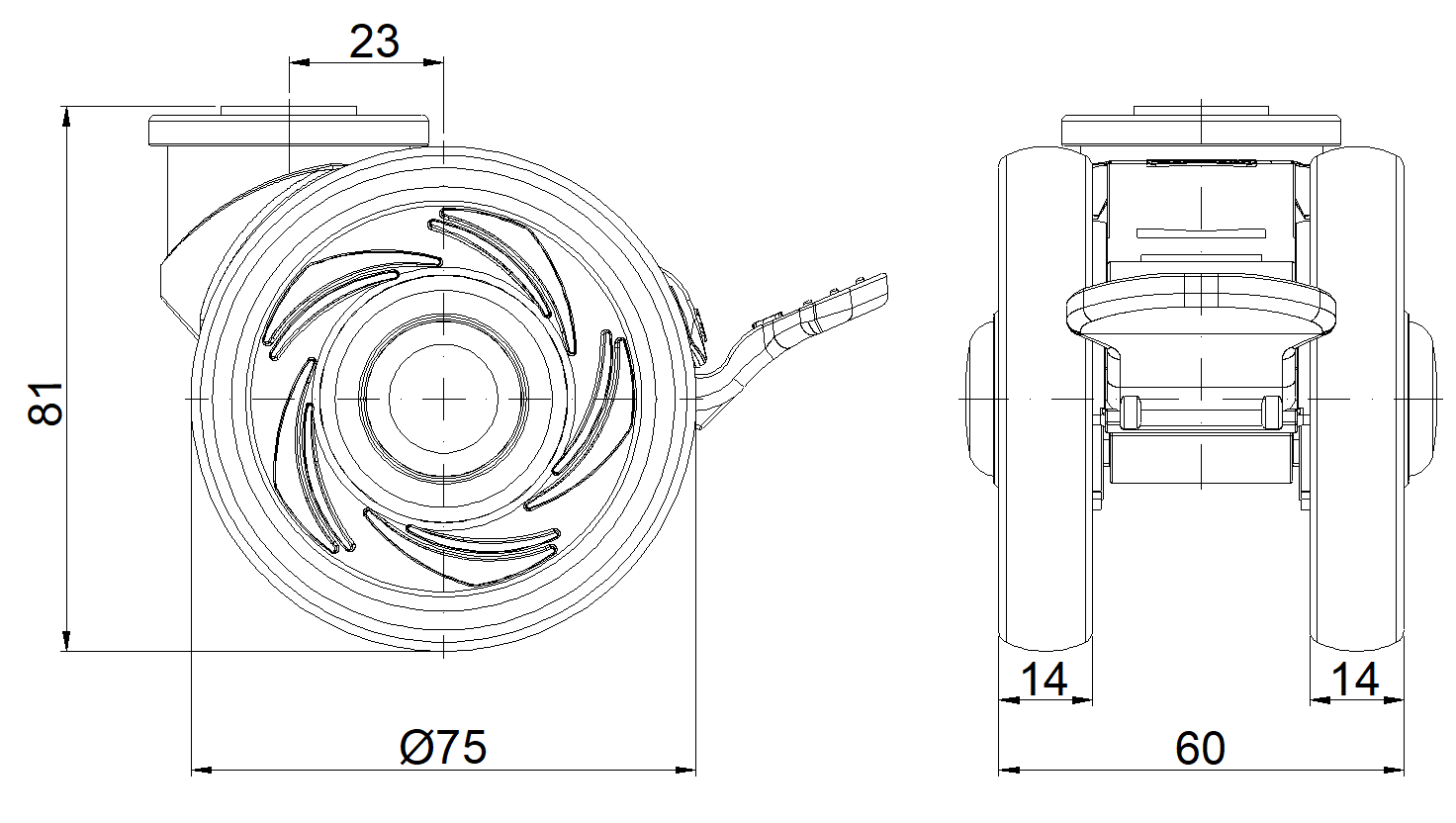

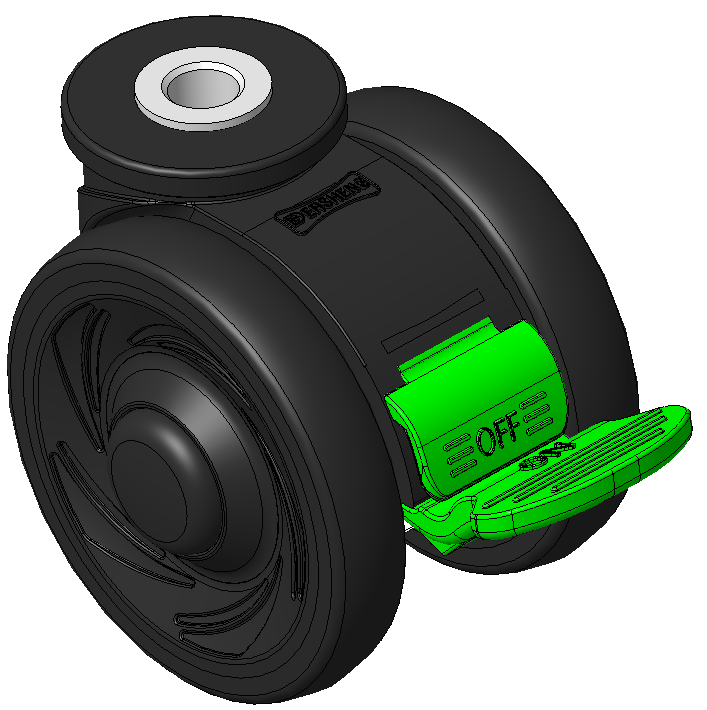

Double-Ball Full-Effect Wheel (All-Black) Wheel Diameter × Wheel Width 75 × 14mm

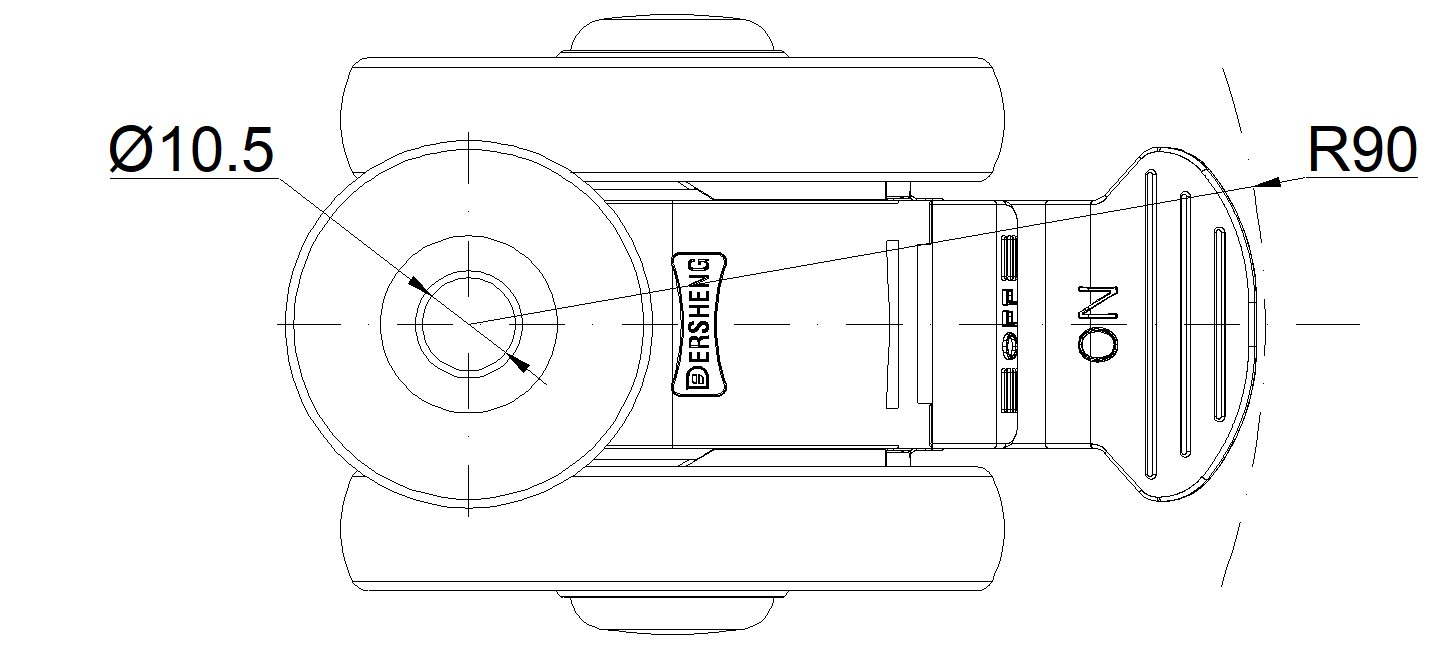

• Bolt-hole swivel caster with brake，Polyamide bracket with hollow rivet — Hollow bore Ø10.5
• White bracket made of reinforced polyamide
• Rust-resistant，Corrosion-resistant，Attractive appearance，Economical，Smooth swiveling
• Impact-resistant polypropylene wheel core，Thermoplastic elastomer（TPR）Tread
• All black，Wheel bearing—Precision ball bearing
• Tread：Thermoplastic rubber elastomer(TPR)
• Wheel core：Made of high-quality impact-resistant polypropylene

Product descriptions are for reference only. The actual product shall prevail.

3D drawings are for members only. Please log in to download.
