	1148-1 48 Series Central Locking Caster Series (All Plastic)

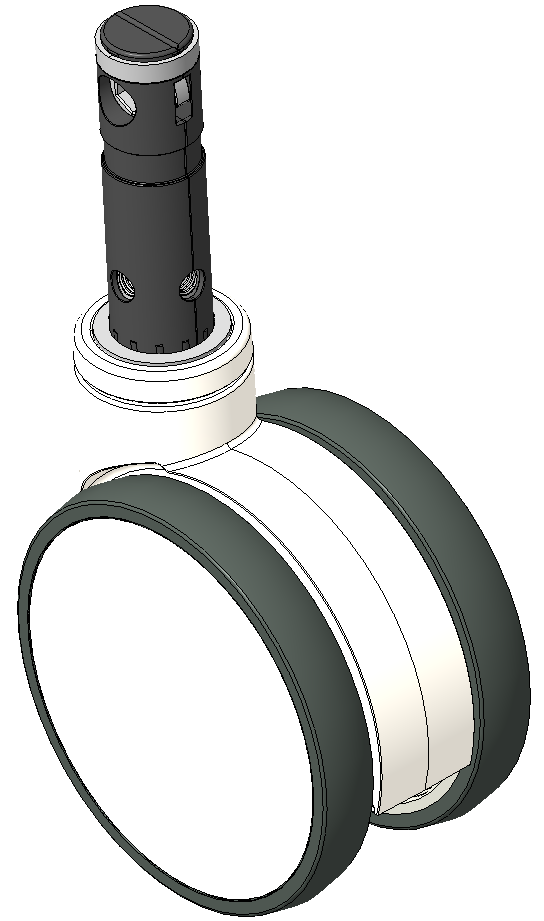

	Central Control Double-Ball Classic Full-Effect Wheel (White-Dark Gray) Wheel Diameter × Wheel Width
	EAN
	KS-11480501458013

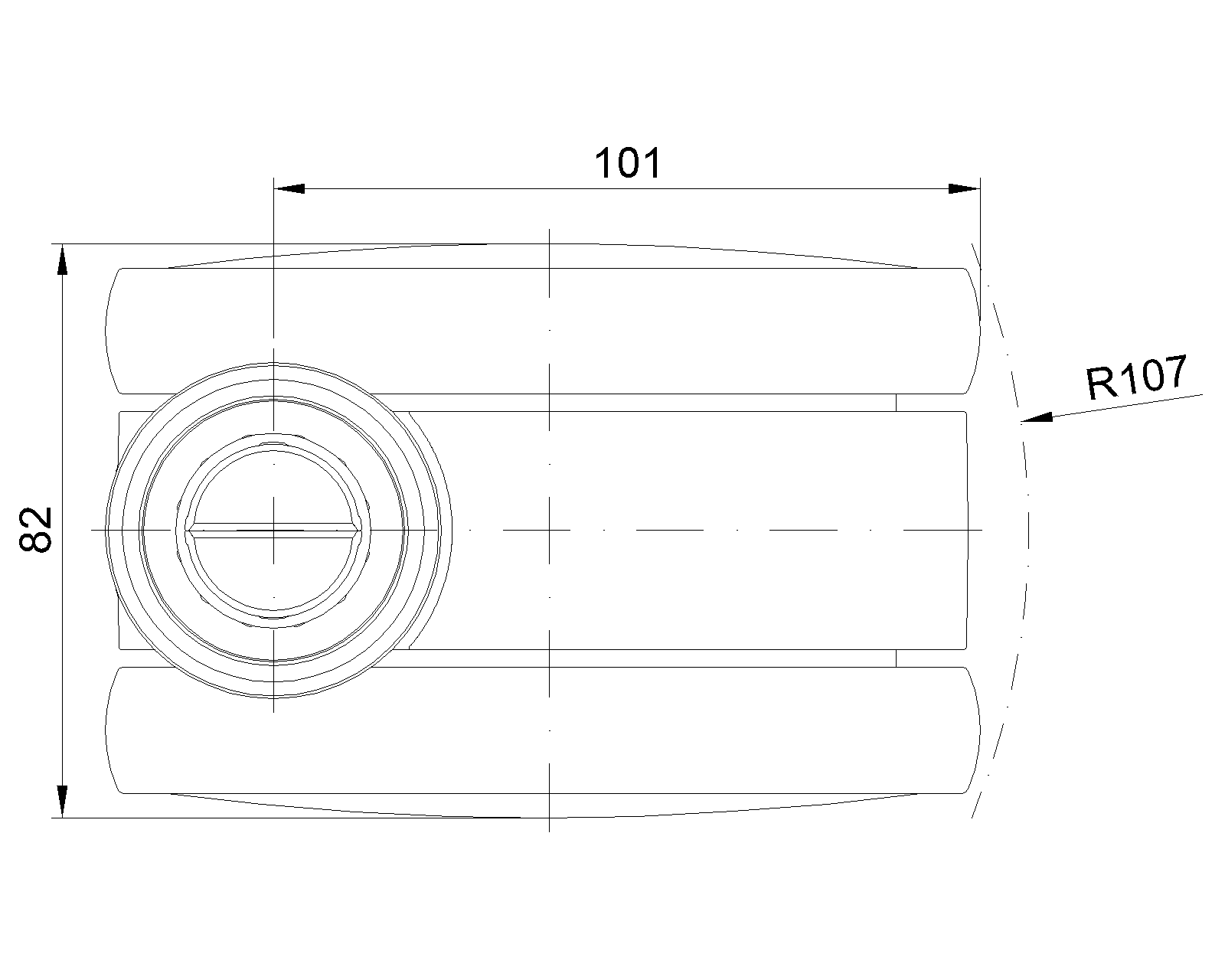

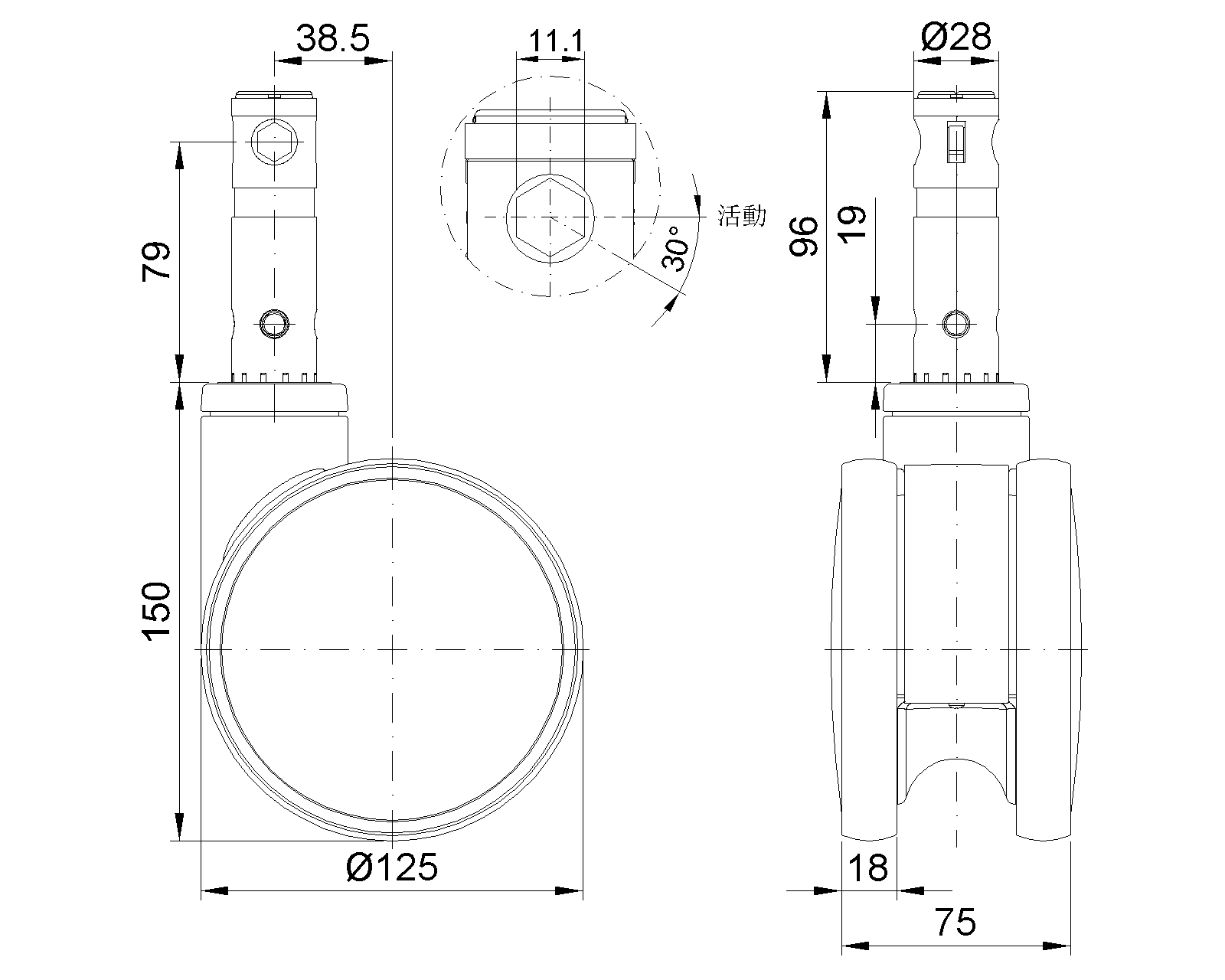

	Drawings are for reference only and may differ from the product

	Metric Imperial 　　Wheel Diameter 125mm　　　Wheel Width 18mm
	Wheel Bearing Wheels With Ball Bearings 　　Stem Diameter 28mm　　　Stem Length 96mm　　　Offset 38.5mm　　　Swivel Interference 214mm　　　Overall Height 150mm　　　Swivel Radius 107mm　　　Hardness Of Tread 72±5° Shore A　　　Load Capacity (Dynamic) 150kgs	Rolling Resistance　　　 ● ● ● ● ● 　　Operating Noise　　　　 ● ● ● ● ● 　　Floor Surface Preservation ● ● ● ● ●
	Load Capacity (Static) 225kgs　　　Temperature -20°C to +60°C　　　Fork Type Swivel Caster With Total Brake
	Stainless N/A 　　Electrical Conductivity N/A 　　Anti-Static N/A 　　Weight 0.98kgs　　　Standard ISO22881
