Picture may differ from original product

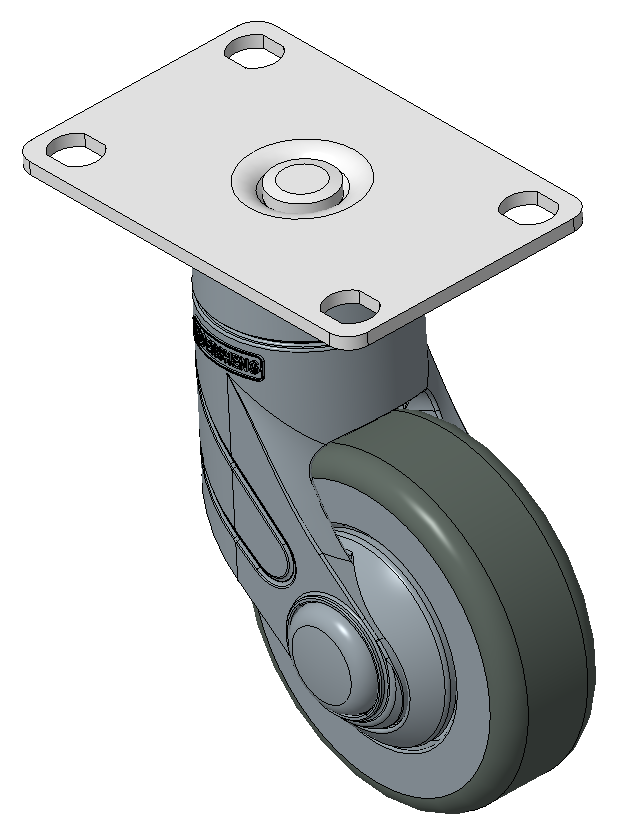

1155-2 Light Plastic-2 Series
PPR Wheel Diameter × Wheel Width 75 x 25 mm
KS-11550303262153
Wheel Diameter75mm
Load Capacity (Dynamic)50kgs
Overall Height121.5mm
Wheel BearingWheel With Plain Bearing
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.
Product Data Sheet
- Wheel Diameter
- 75mm
- Wheel Width
- 25mm
- Wheel Bearing
- Wheel With Plain Bearing

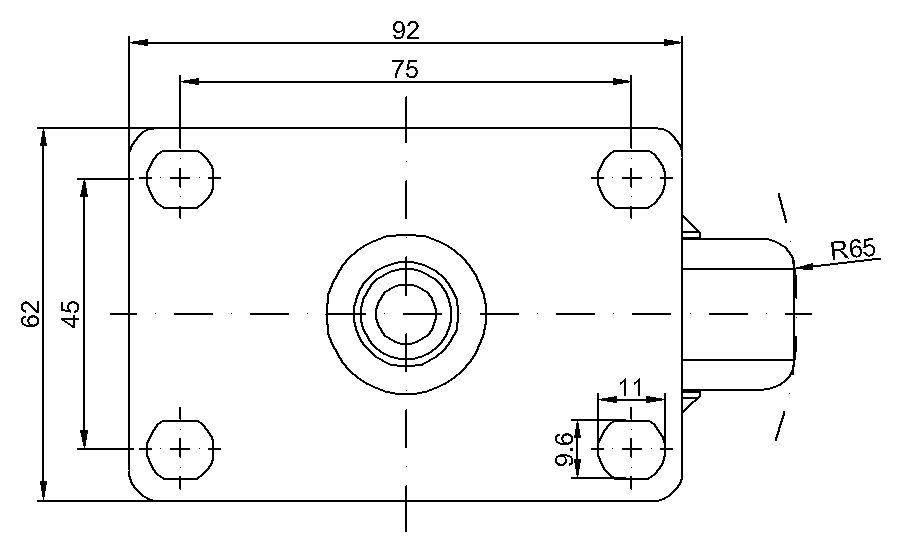

- Plate Size
- 92 x 62mm
- Bolt Hole Spacing
- 75 x 45mm
- Plate Hole
- 11 x 9.6mm
- Offset
- 27mm
- Swivel Interference
- 130mm

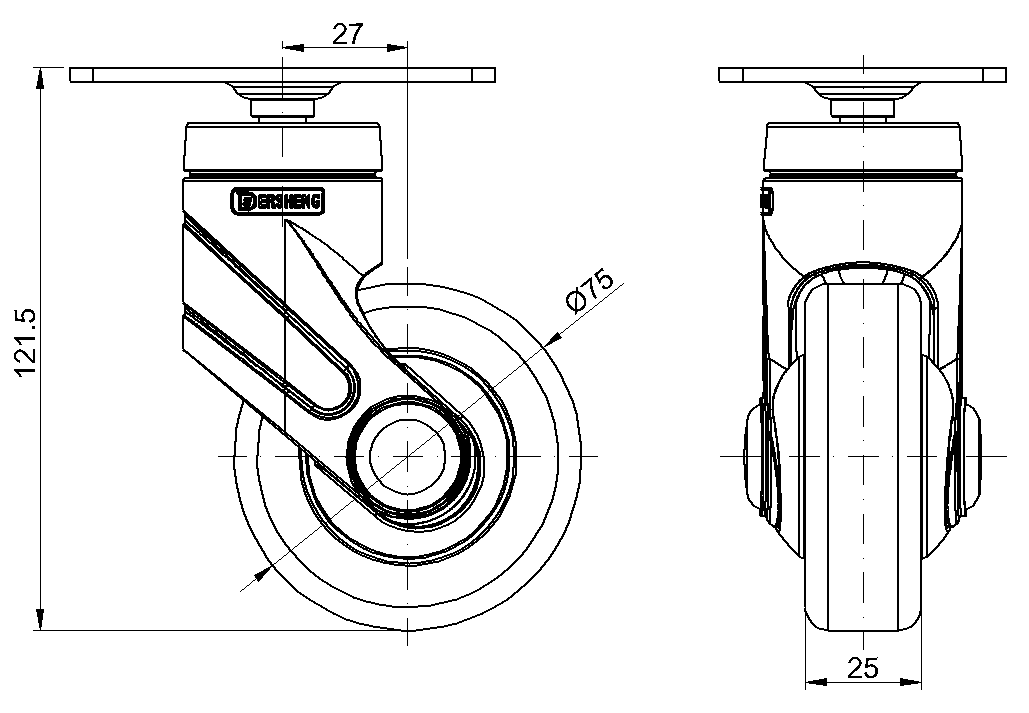

- Overall Height
- 121.5mm
- Swivel Radius
- 65mm
- Hardness Of Tread
- 82±5° Shore A
- Load Capacity (Dynamic)
- 50kgs
- Load Capacity (Static)
- 75kgs
- Temperature
- -20°C to +60°C
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 0.32kgs
- Standard
- ISO22881
* For any deviation between metric and imperial spec, please refer to the metric spec.
