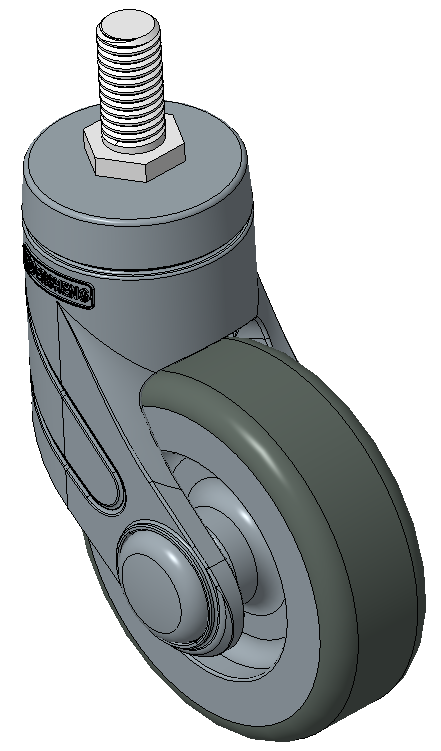

PPR Wheel Diameter × Wheel Width 75 x 25 mm

Picture may differ from original product

1155-2 Light Plastic-2 Series

PPR Wheel Diameter × Wheel Width 75 x 25 mm

KS-11550303265223

Wheel Diameter75mm　

Load Capacity (Dynamic)50kgs　

Overall Height115mm　

Wheel BearingWheel With Plain Bearing

Product descriptions are for reference only. The actual product shall prevail.

Product Data Sheet 3D Drawing Request

3D drawings are for members only. Please log in to download.

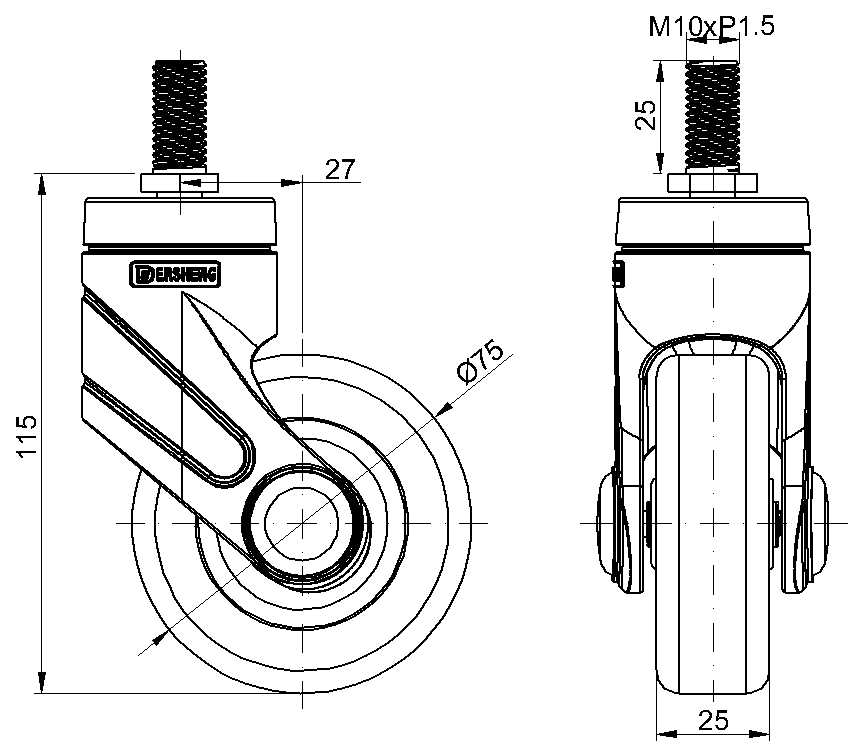

Product Data Sheet

Wheel Diameter: 75mm
Wheel Width: 25mm
Wheel Bearing: Wheel With Plain Bearing
Threaded Stem: M10xP1.5
Threaded Length: 25mm
Offset: 27mm
Swivel Interference: 130mm
Overall Height: 115mm

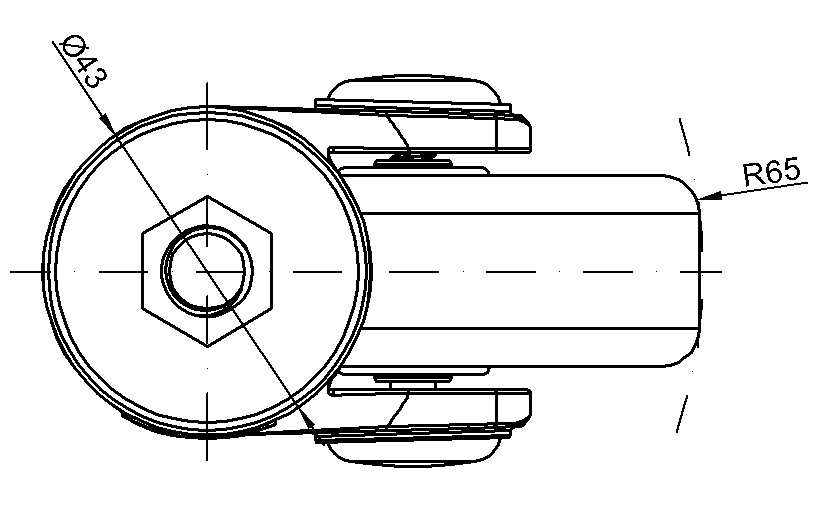

Swivel Radius: 65mm
Hardness Of Tread: 82±5° Shore A
Load Capacity (Dynamic): 50kgs
Load Capacity (Static): 75kgs
Temperature: -20°C to +60°C
Fork Type: Swivel Caster
Stainless: N/A
Electrical Conductivity: N/A
Anti-Static: N/A
Weight: 0.22kgs
Standard: ISO22881

* For any deviation between metric and imperial spec, please refer to the metric spec.

Performance

Rolling Resistance

Operating Noise　

Floor Surface Preservation
