    Product Data Sheet
1165-1 Heavy Duty AMR/AGV Spring-Loading Caster Wheel Series
　　ZQPU (Milled Blue) Wheel Diameter × Wheel Width 62.5× 20（41.5） mm
　　EAN
　　　　　 KS-11655200801033
　　　　　 　　　

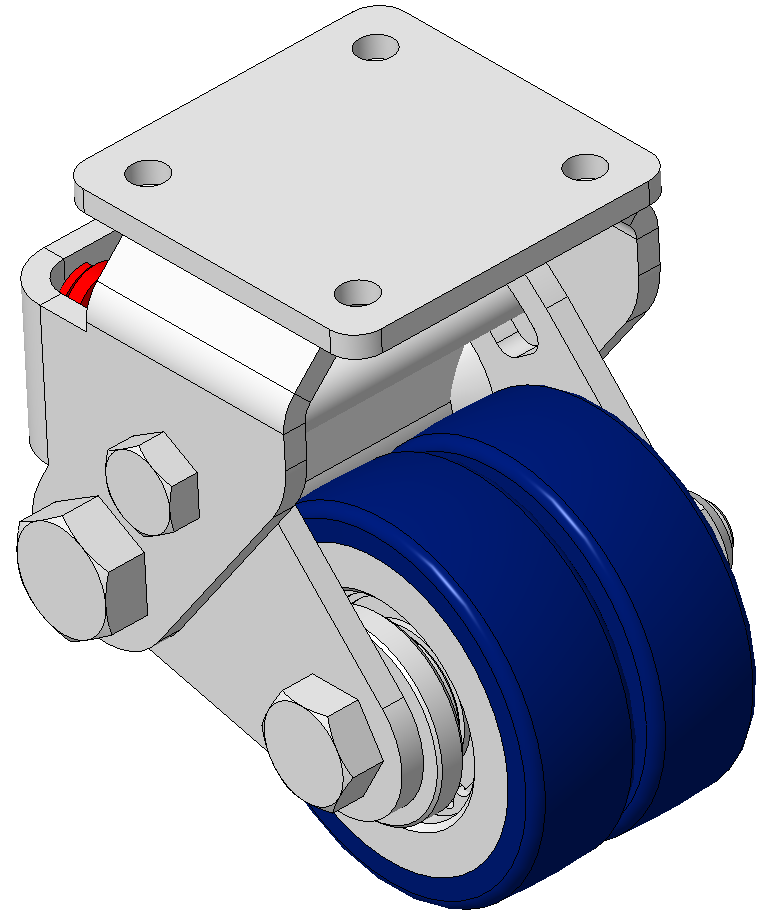

Rigid Spring-loaded Caster with Welded Caster Fork Zine-Plated, Mounting Type - Top Plate, 42.5 x 42.5 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron blue Bearing—feature Ball Bearing for reduced Rolling Resistance ZQPU Dual Wheels, Ergonomic design for easier starting and turning
　　Wheel Tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

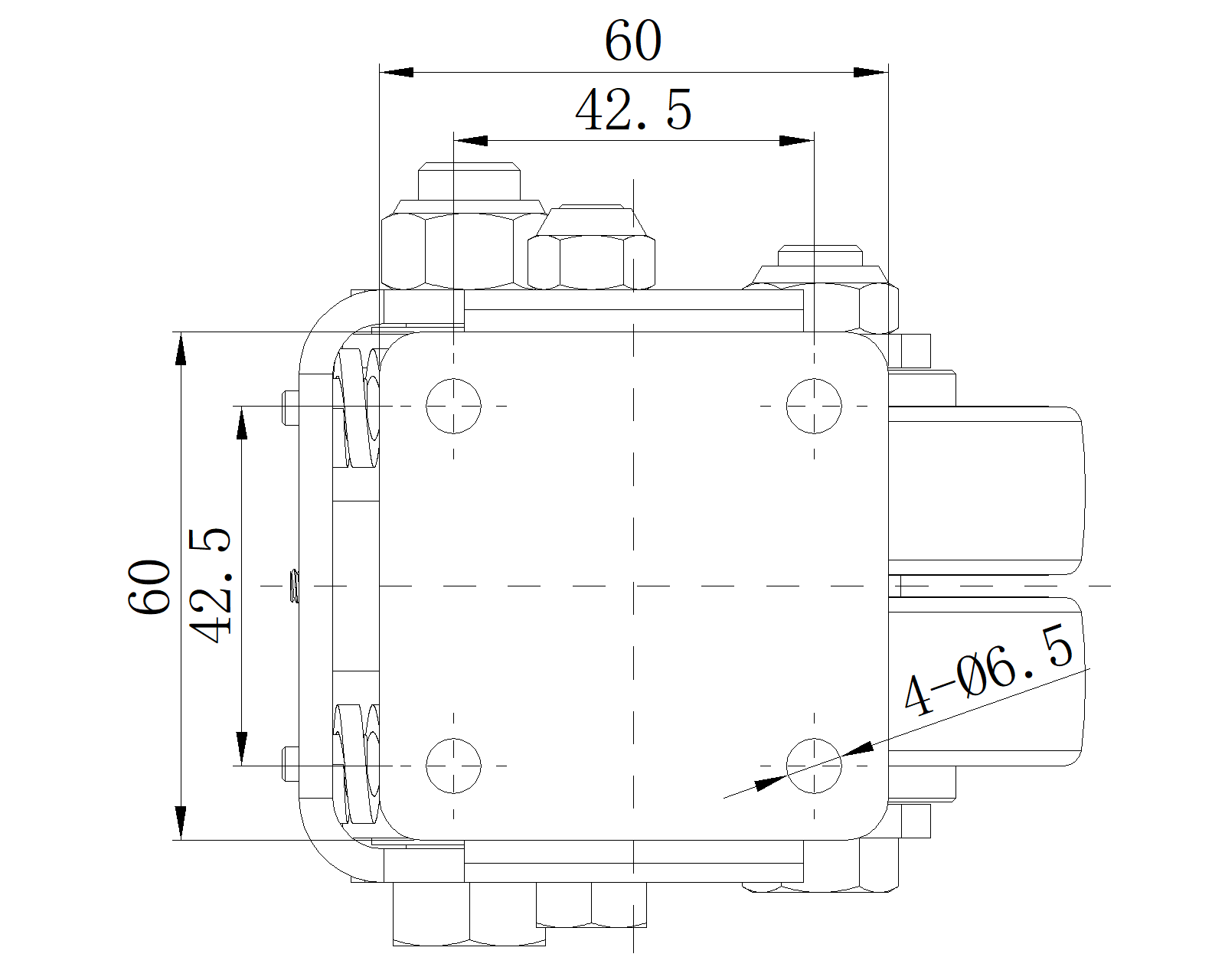

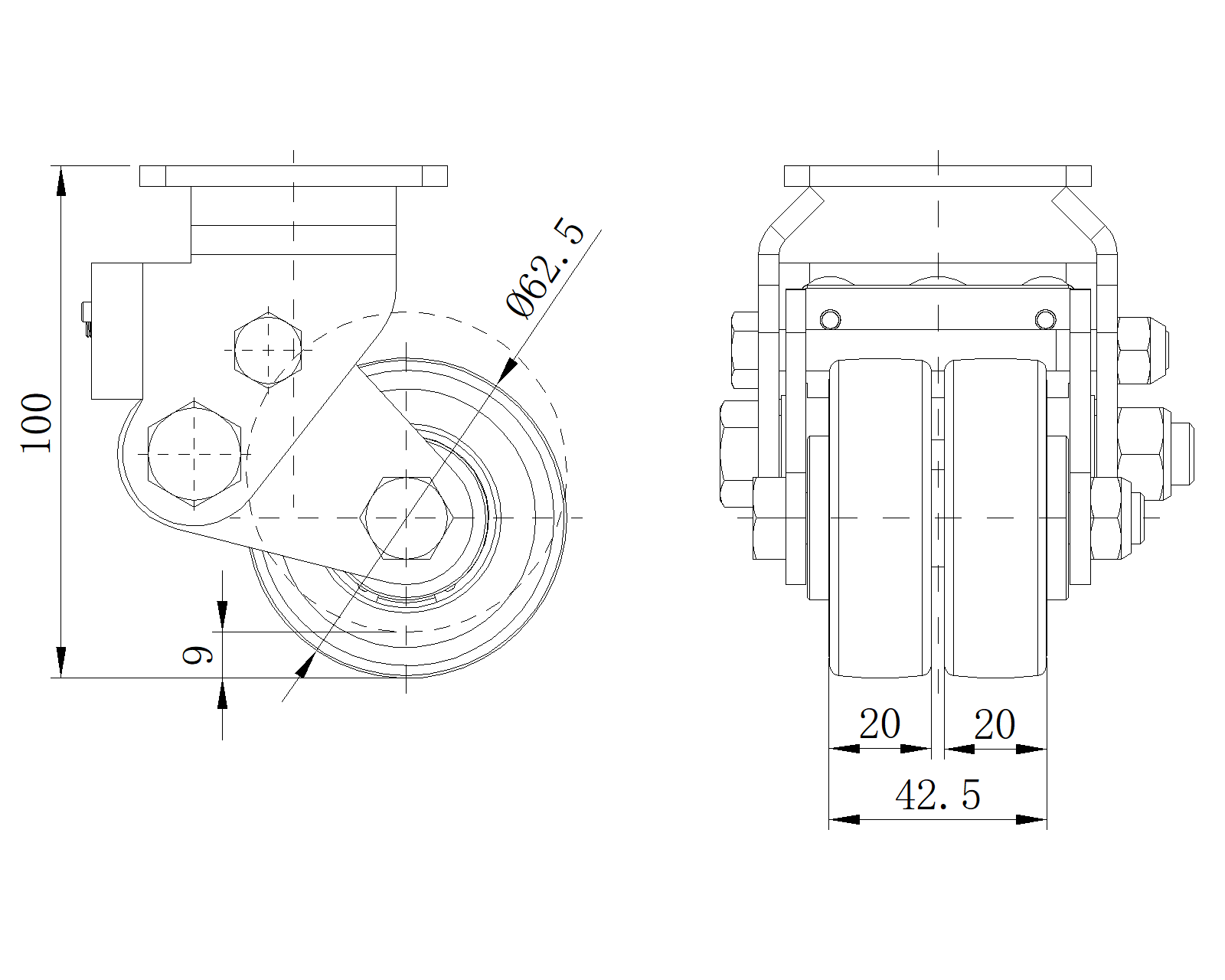

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 62.5mm　

　　Wheel Width 42.5mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 60 x 60mm　
　　Bolt Hole Spacing 42.5x42.5mm　
　　Plate Hole 6.5mm　
　　Overall Height 100mm　
　　Hardness Of Tread 87±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.33kgs　
　　Standard ISO22883
　　
　　
