    Product Data Sheet
1165-5 AMR/AGV- 5 Pressed Steel Caster - Single Wheel Series (Medium/Light Duty)
　　Anti-static HPU (black round) Wheel Diameter x Wheel Width 72 x 30 mm
　　EAN
　　　　　 KS-11650305752223
　　　　　 　　　
Swivel Caster with Welded Caster Fork Spray-coated finish, Mounting Type - Top Plate, 85 x 70 Bolt Hole Spacing Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron black Bearing—Ball Bearing, Anti-Static
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron

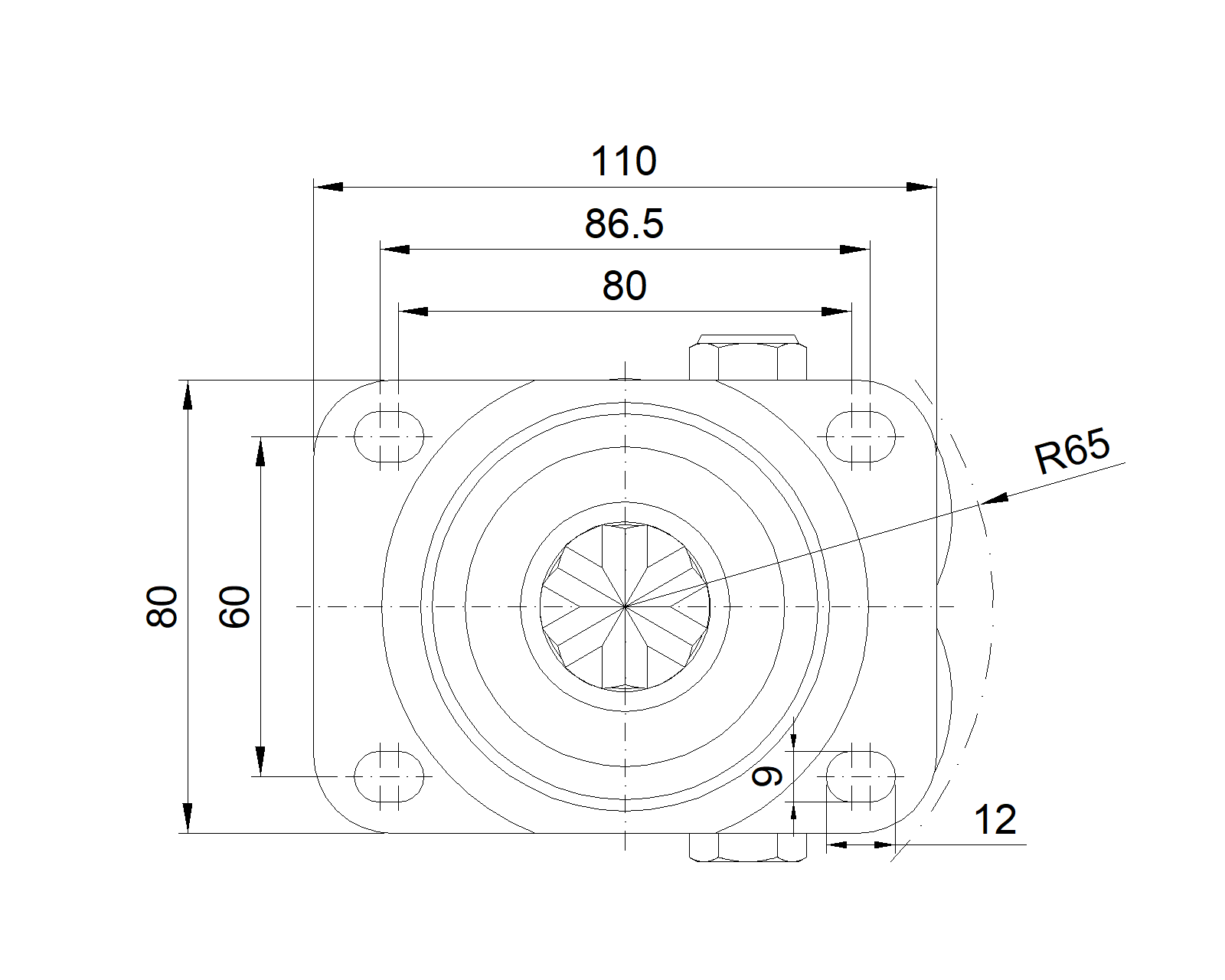

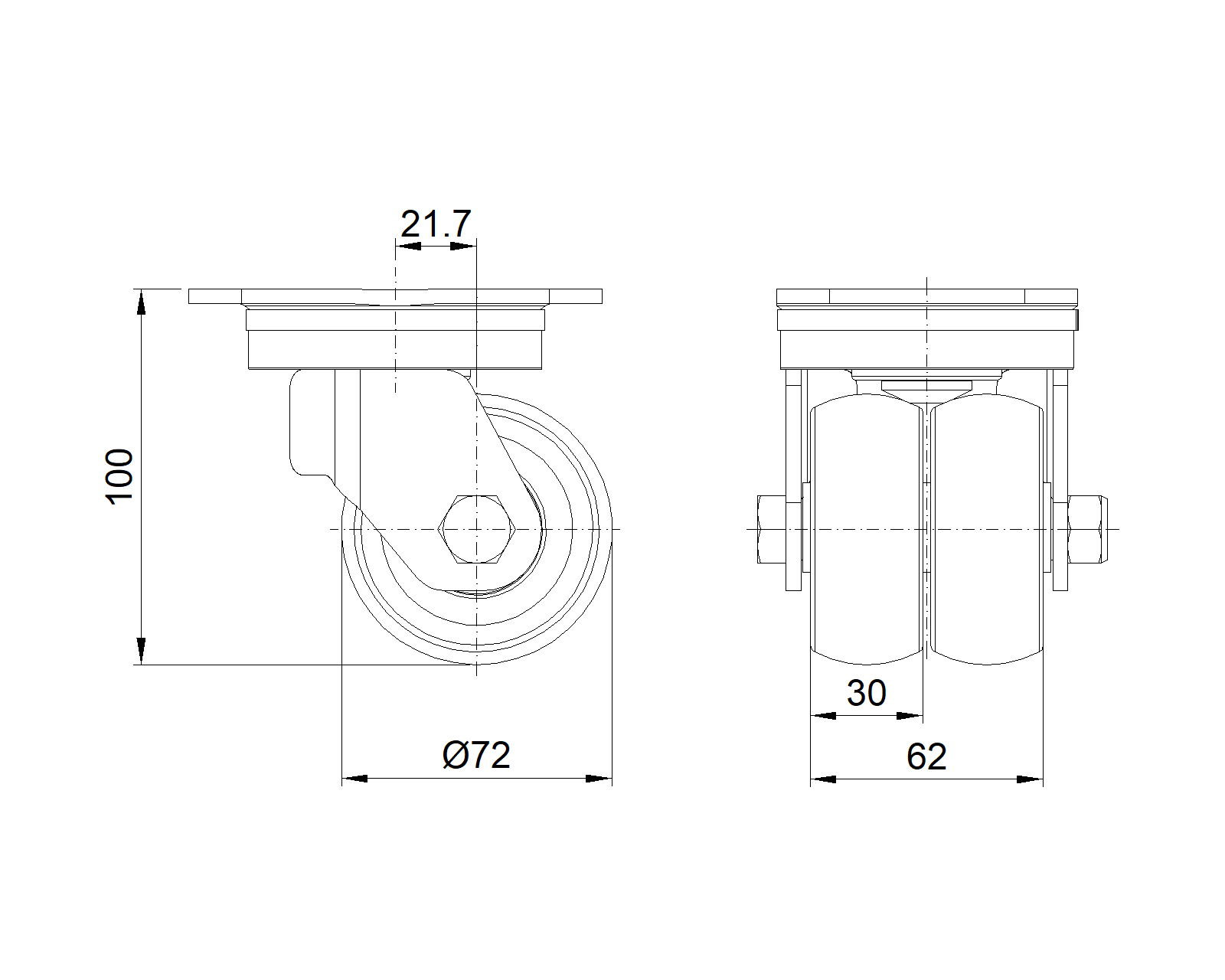

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 72mm　

　　Wheel Width 62mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 110 x 80mm　
　　Bolt Hole Spacing 80 x 60mm　
　　Plate Hole 12 x 9mm　
　　Offset 21.7mm　
　　Swivel Interference 130mm　
　　Overall Height 100mm　
　　Swivel Radius 65mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 80kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 120kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static Y 10^6/~10^9/02
　　Weight 2.66kgs　
　　Standard ISO22883
　　
　　
