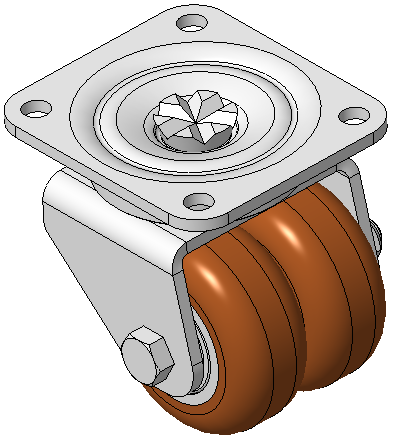

Picture may differ from original product
1165-5 AMR/AGV- 5 Pressed Steel Caster - Single Wheel Series (Medium/Light Duty)
QPU (brown flat) Wheel Diameter x Wheel Width 80 x 35 mm
KS-11652305302363
Wheel Diameter80mm 3-3/16＂
Load Capacity (Dynamic)200kgs 441lbs
Overall Height110mm 4-3/8＂
Wheel BearingWheels With Ball Bearings
- Swivel caster，Welded steel plate bracket
- Zinc-plated finish，Top plate mounting，Hole spacing 85x75
- Aluminum wheel core，High-quality polyurethane tread
- Brown，Wheel bearing—Precision ball bearing
- Tread：High-quality polyurethane
- Wheel core：Iron/cast iron
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

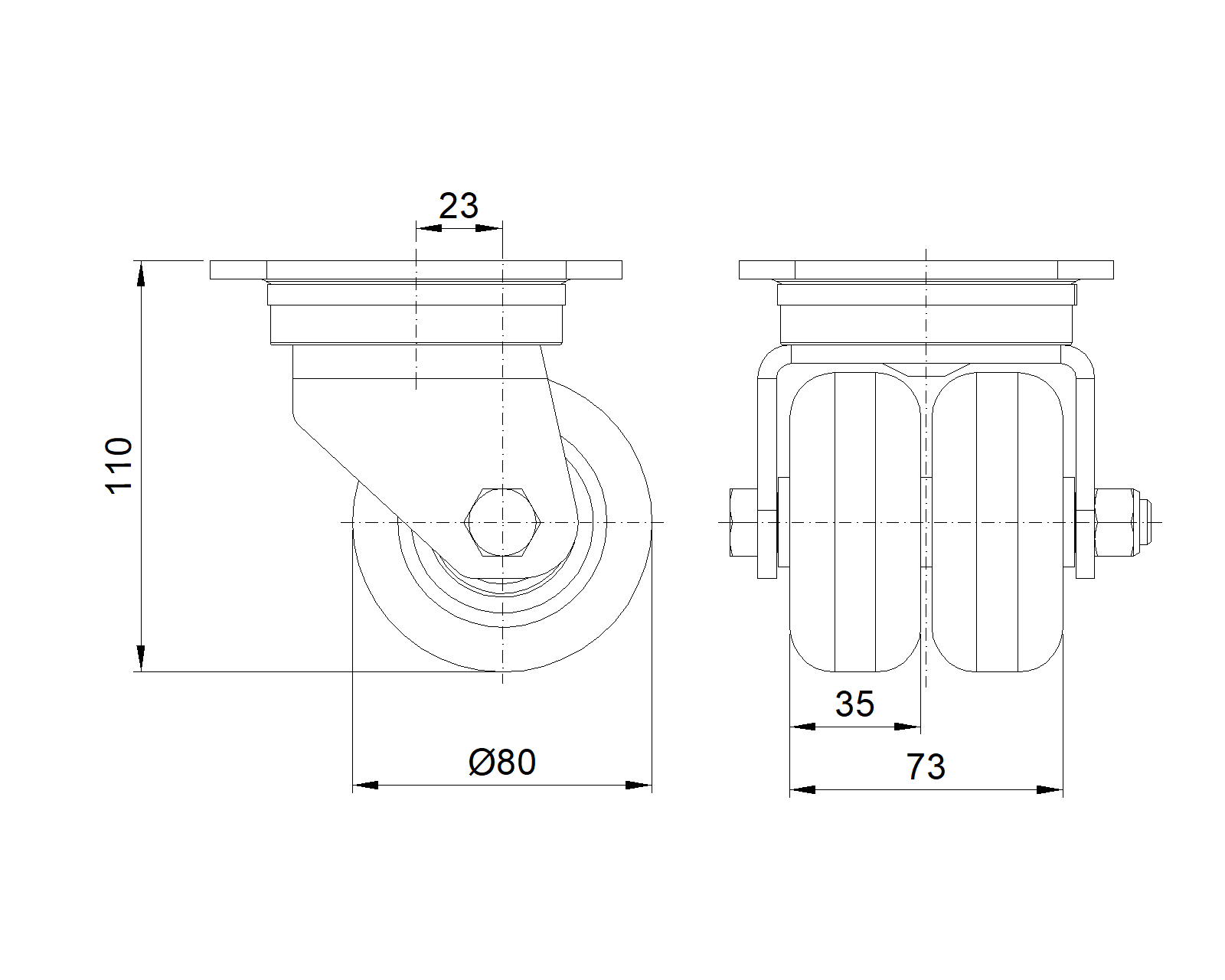

Product Data Sheet
- Wheel Diameter
- 80mm3-3/16＂
- Wheel Width
- 35mm1-7/16＂
- Wheel Bearing
- Wheels With Ball Bearings

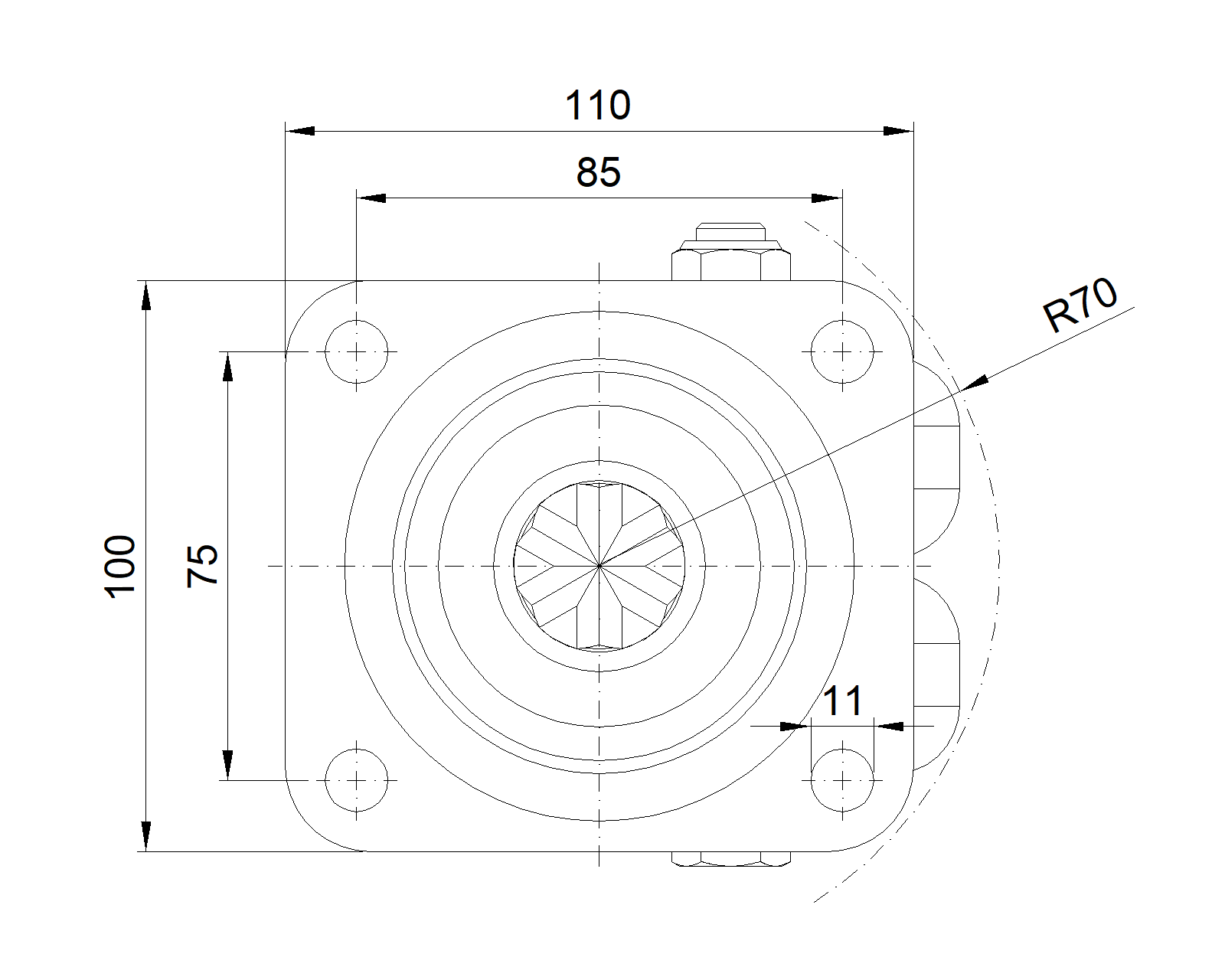

- Plate Size
- 110 x 100mm4-3/8＂ x 3-7/16＂
- Bolt Hole Spacing
- 85 x 75mm3-5/16＂ x 2-15/16＂
- Plate Hole
- 11mm3/8＂
- Offset
- 23mm15/16＂
- Swivel Interference
- 140mm5-9/16＂
- Overall Height
- 110mm4-3/8＂
- Swivel Radius
- 70mm2-13/16＂
- Hardness Of Tread
- 87±5° Shore A
- Load Capacity (Dynamic)
- 200kgs441lbs
- Load Capacity (Static)
- 300kgs661lbs
- Temperature
- -20°C to +70°C-4°F to +158°F
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 2.54kgs5.6lbs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
Performance
Rolling SmoothnessMax. 5 pointsScore: 5
