1165-5 AMR/AGV- 5 Pressed Steel Caster - Single Wheel Series (Medium/Light Duty)
QPU (brown flat) Wheel Diameter x Wheel Width 80 x 35 mm
KS-11652305302311
Wheel Diameter80mm
Load Capacity (Dynamic)200kgs
Overall Height114mm
Wheel BearingWheels With Ball Bearings
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.

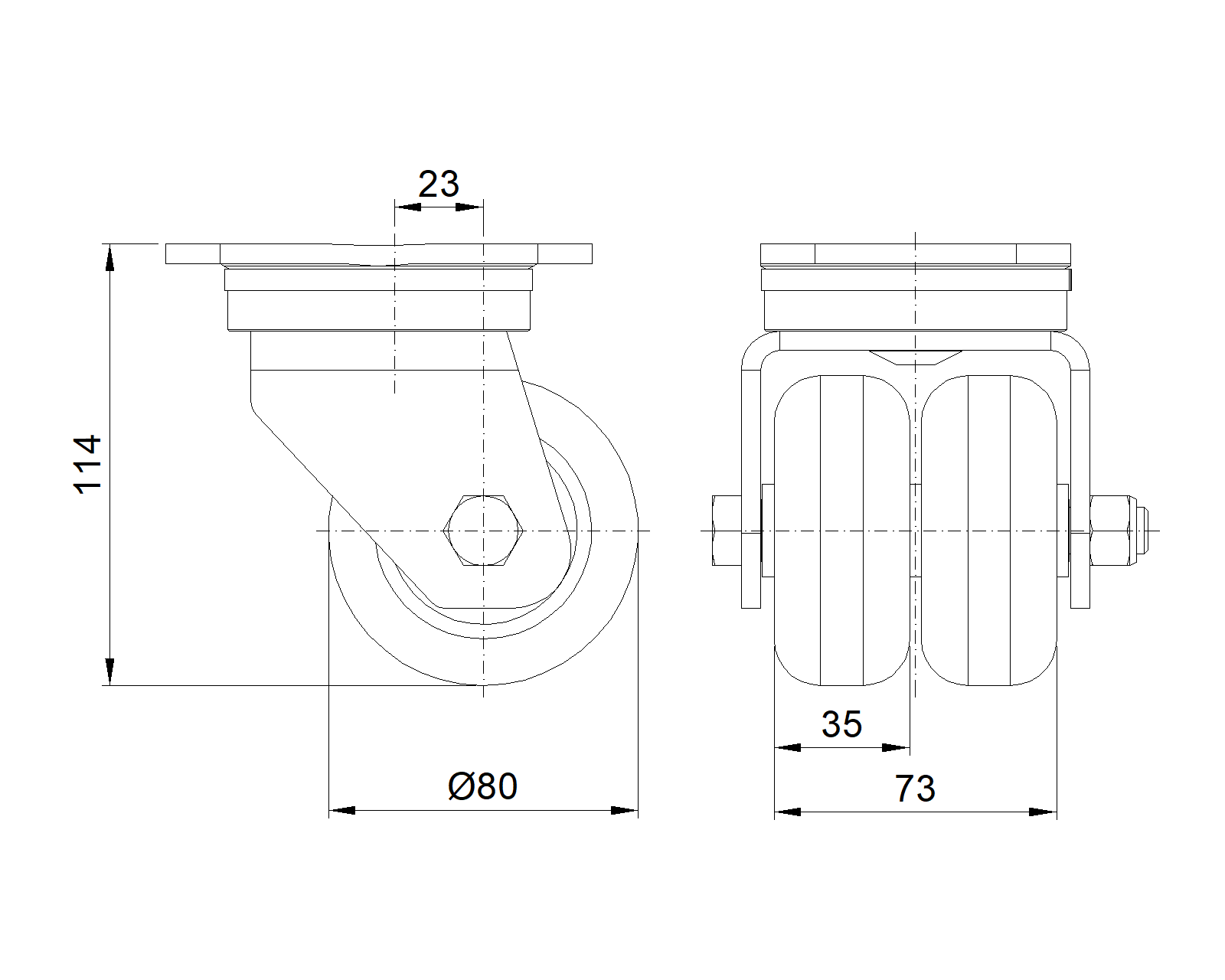

Product Data Sheet
- Wheel Diameter
- 80mm
- Wheel Width
- 35mm
- Wheel Bearing
- Wheels With Ball Bearings

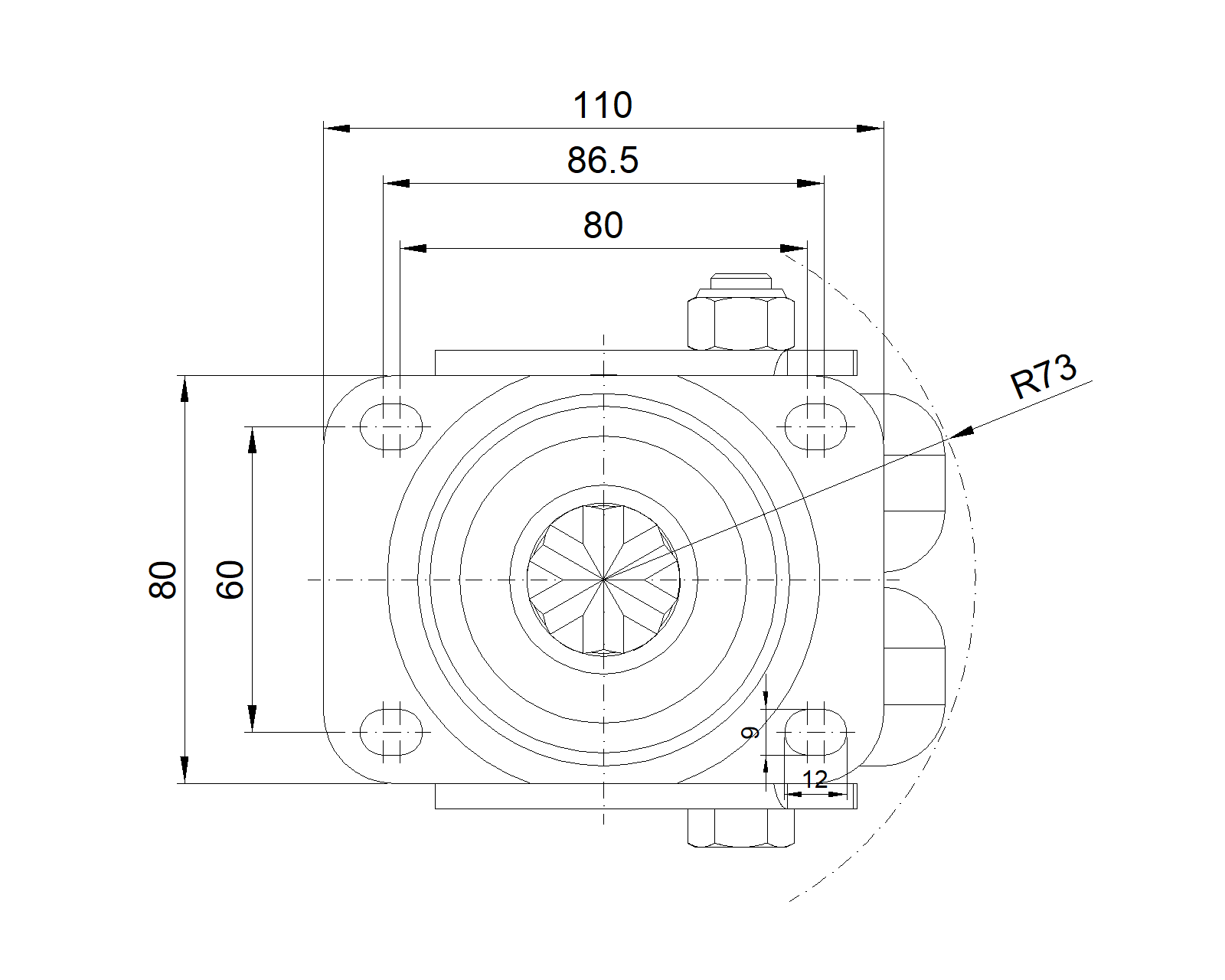

- Plate Size
- 110 x 80mm
- Bolt Hole Spacing
- 80 x 60mm
- Plate Hole
- 12 x 9mm
- Offset
- 23mm
- Swivel Interference
- 146mm
- Overall Height
- 114mm
- Swivel Radius
- 73mm
- Hardness Of Tread
- 92±5° Shore A
- Load Capacity (Dynamic)
- 200kgs
- Load Capacity (Static)
- 300kgs
- Temperature
- -20°C to +70°C
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 2.51kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
