    Product Data Sheet
1165-5 AMR/AGV- 5 Pressed Steel Caster - Single Wheel Series (Medium/Light Duty)
　　QPU (brown flat) Wheel Diameter x Wheel Width 80 x 35 mm
　　EAN
　　　　　 KS-11652305302323
　　　　　 　　　
Swivel Caster, Top Plate Riveted and Stamping with 75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing E-Coat Finish, Top Plate Mounting Type, 84x71.5mm Bolt Hole Spacing Aluminum Wheel Center, High Quality Polyurethane tread Iron brown, Bearing—Ball Bearing
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron

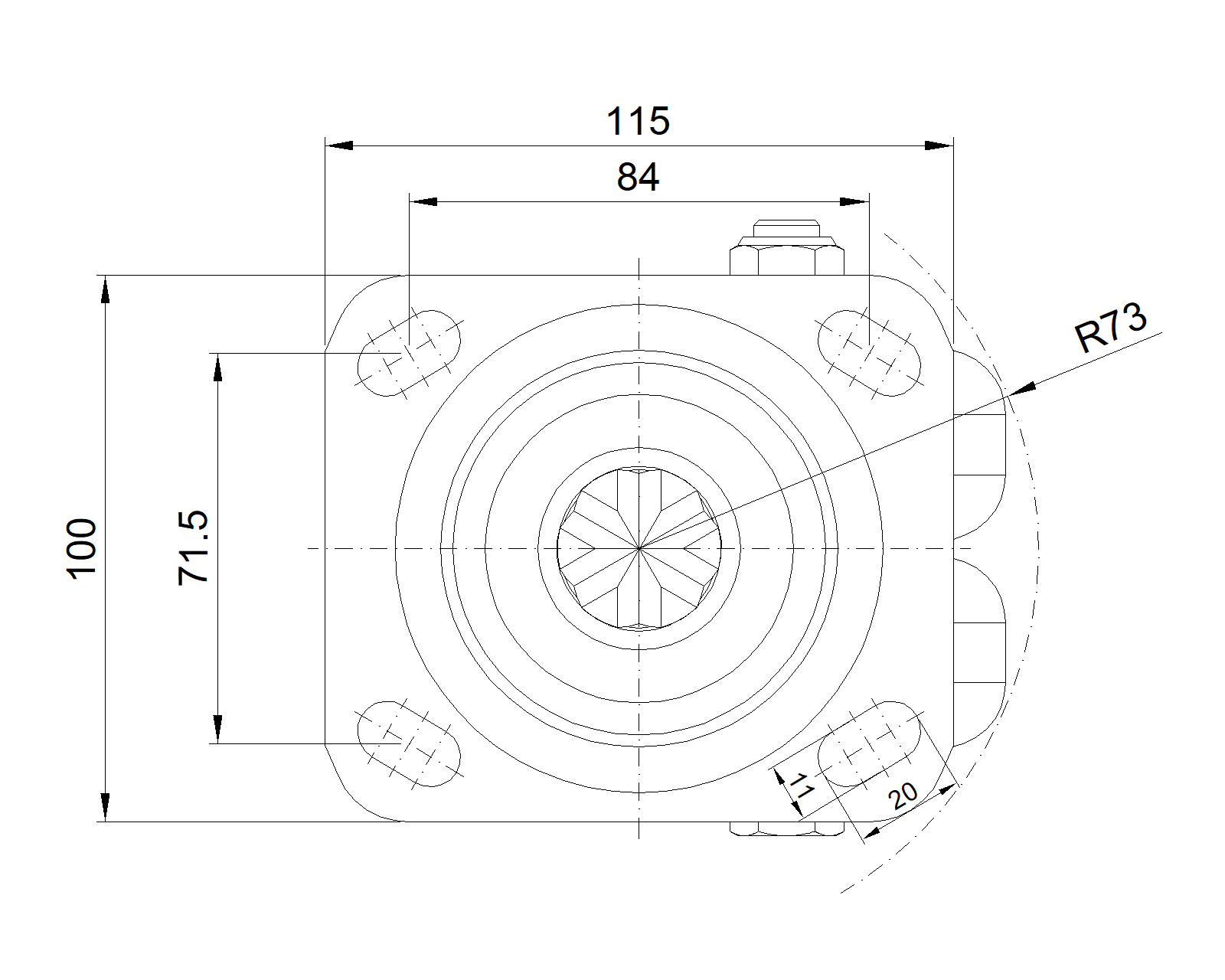

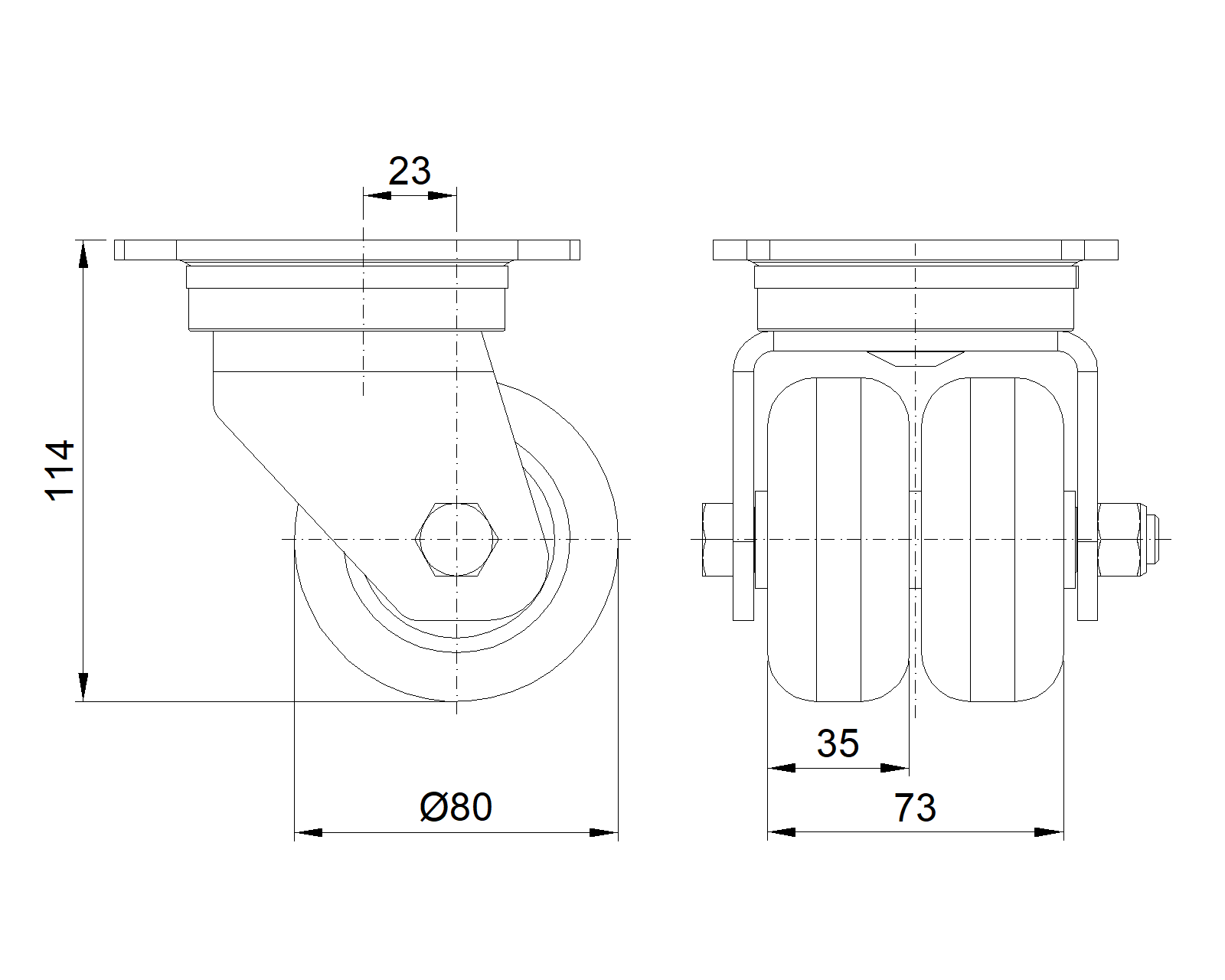

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 80mm　

　　Wheel Width 73mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 84 x 71.5mm　
　　Plate Hole 20 x 11mm　
　　Offset 23mm　
　　Swivel Interference 146mm　
　　Overall Height 114mm　
　　Swivel Radius 73mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 160kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 240kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.31kgs　
　　Standard ISO22883
　　
　　
