    Product Data Sheet

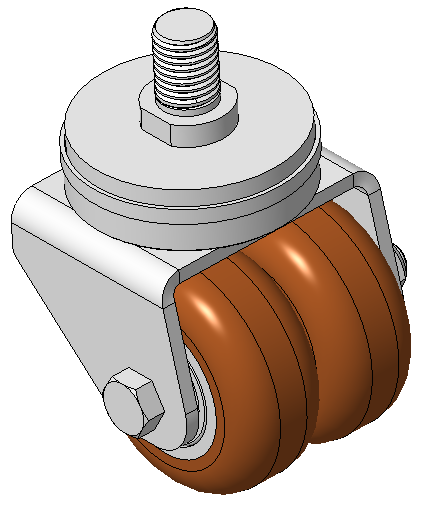

1165-5 AMR/AGV- 5 Pressed Steel Caster - Single Wheel Series (Medium/Light Duty)
　　QPU (brown flat) Wheel Diameter x Wheel Width 80 x 35 mm
　　EAN
　　　　　 KS-11652305305123
　　　　　 　　　
Swivel Caster, M20x27 thread, Fork reinforced with High-quality Impact Resistance Polypropylene. Rustproof, Corrosion resistant, Attractive appearance, Economical, and Reinforced. High-quality Impact Resistance Polypropylene Wheel Center,High-Quality Thermoplastic Rubber (TPR) tread. Brown, Bearing—Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron

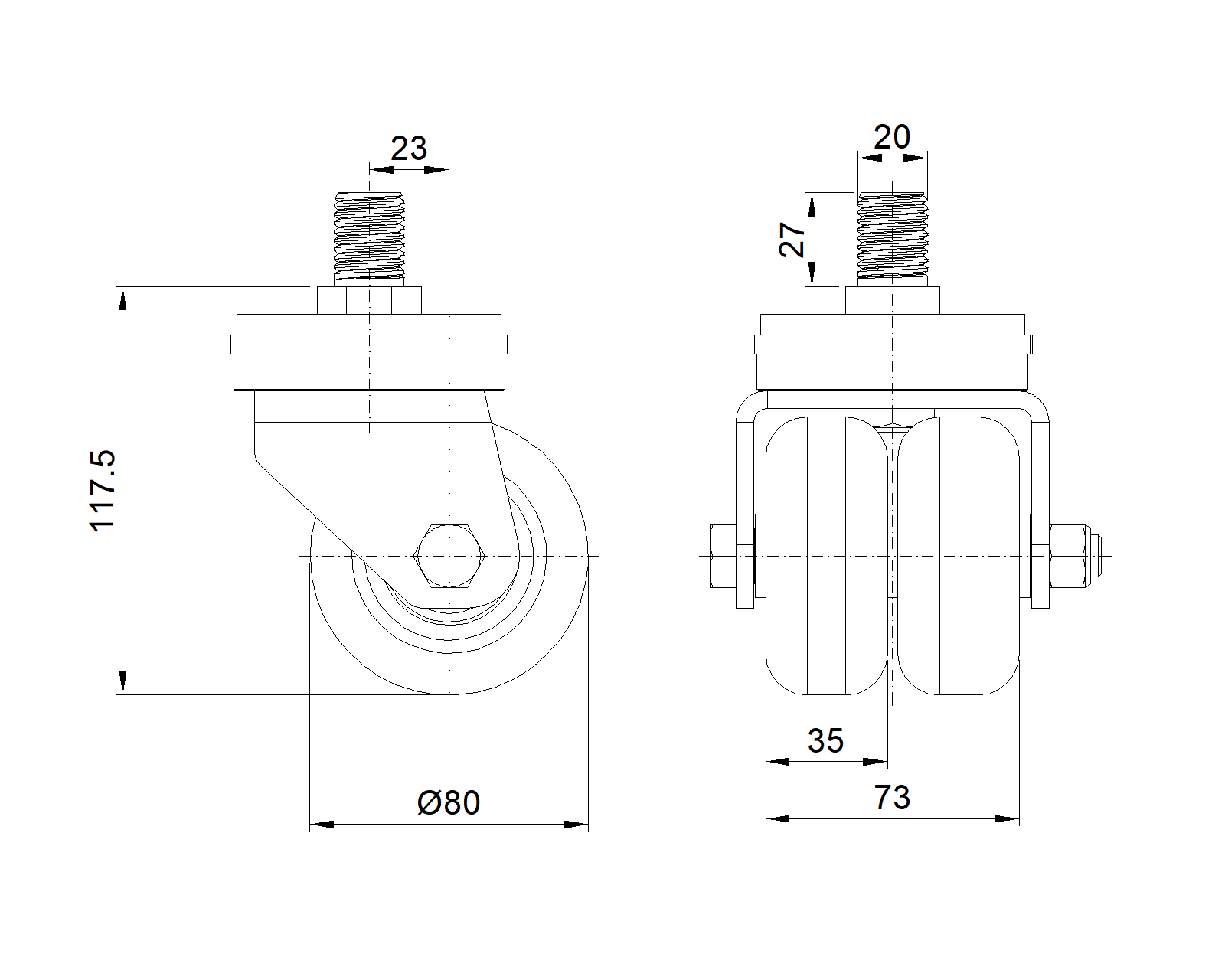

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 80mm　

　　Wheel Width 73mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem M20x27
　　Threaded Length 27mm
　　Offset 23mm　
　　Swivel Interference 140mm　
　　Overall Height 117.5mm　

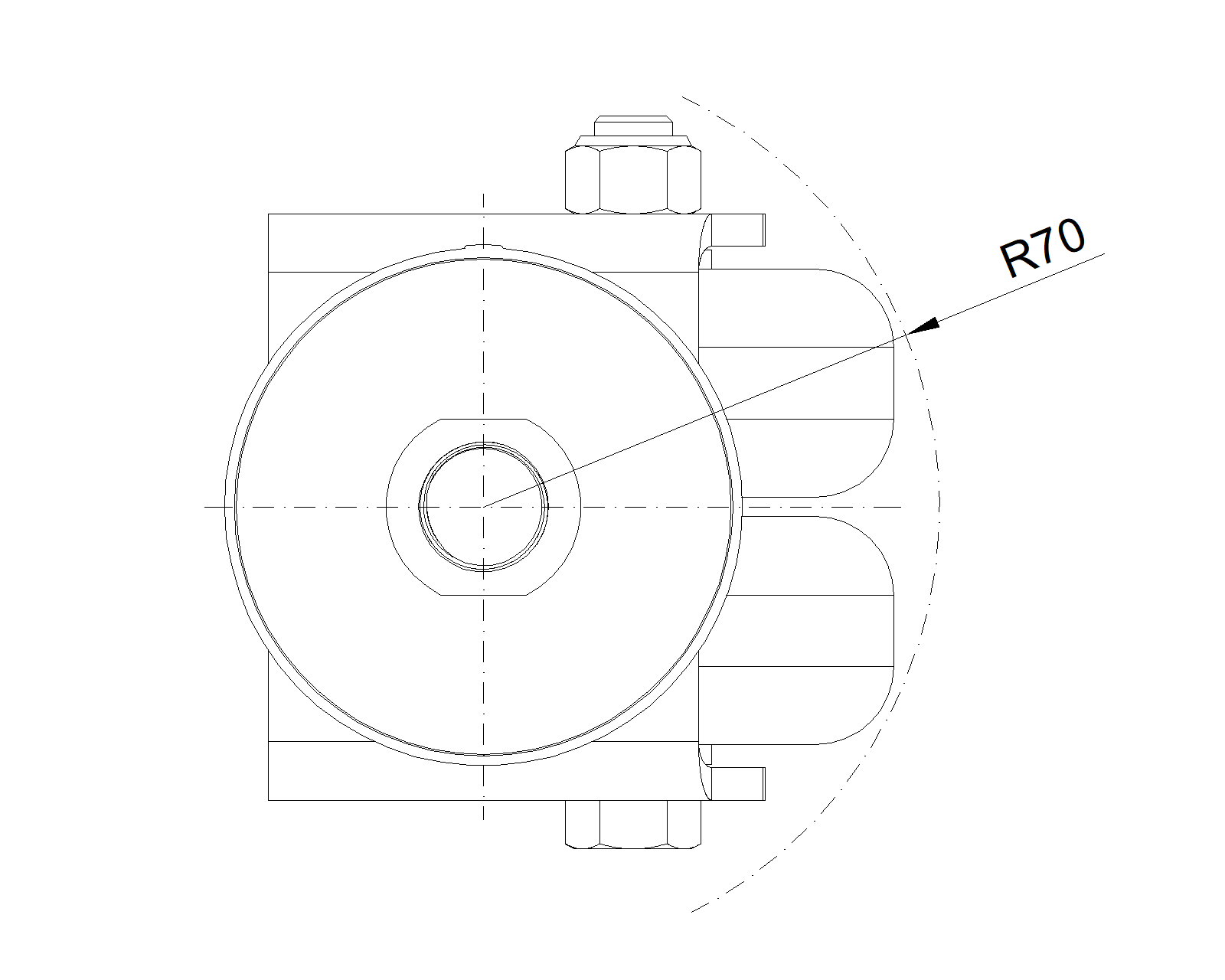

　　Swivel Radius 70mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.31kgs　
　　Standard ISO22883
　　
　　
