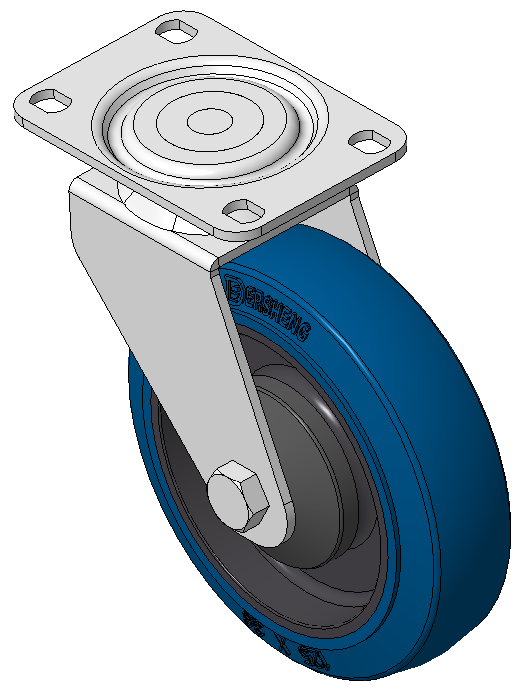

Picture may differ from original product
1165-4 1165 Series — AMR/AGV-4 Single Precision Ball Bearing Caster (Medium Duty)Series

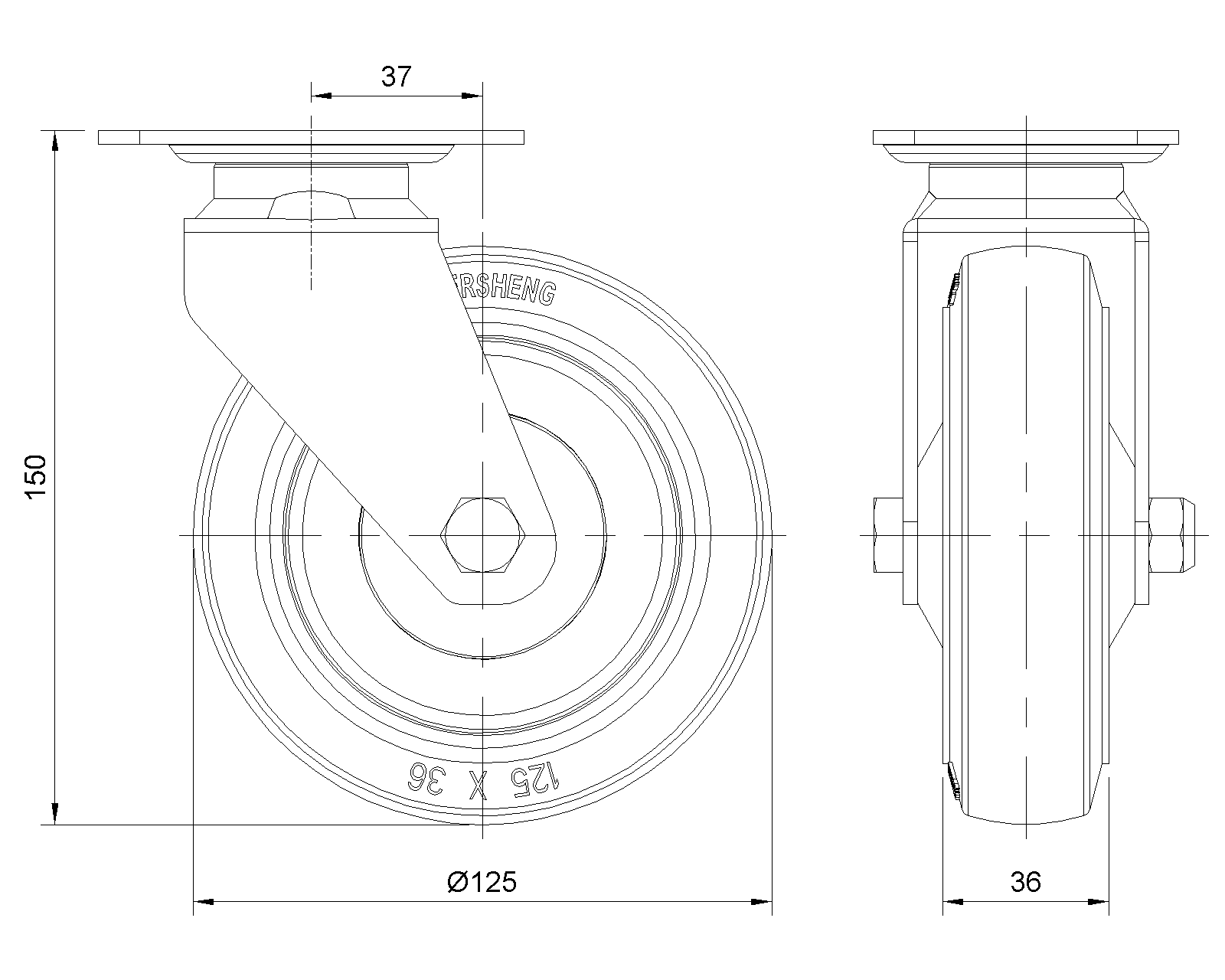

Resolute Wheel Diameter x Wheel Width 125 x 36mm
KS-11650504452113
Wheel Diameter125mm
Load Capacity (Dynamic)130kgs
Overall Height150mm
Wheel BearingWheels With Ball Bearings
Product descriptions are for reference only. The actual product shall prevail.
3D drawings are for members only. Please log in to download.
Product Data Sheet
- Wheel Diameter
- 125mm
- Wheel Width
- 36mm
- Wheel Bearing
- Wheels With Ball Bearings

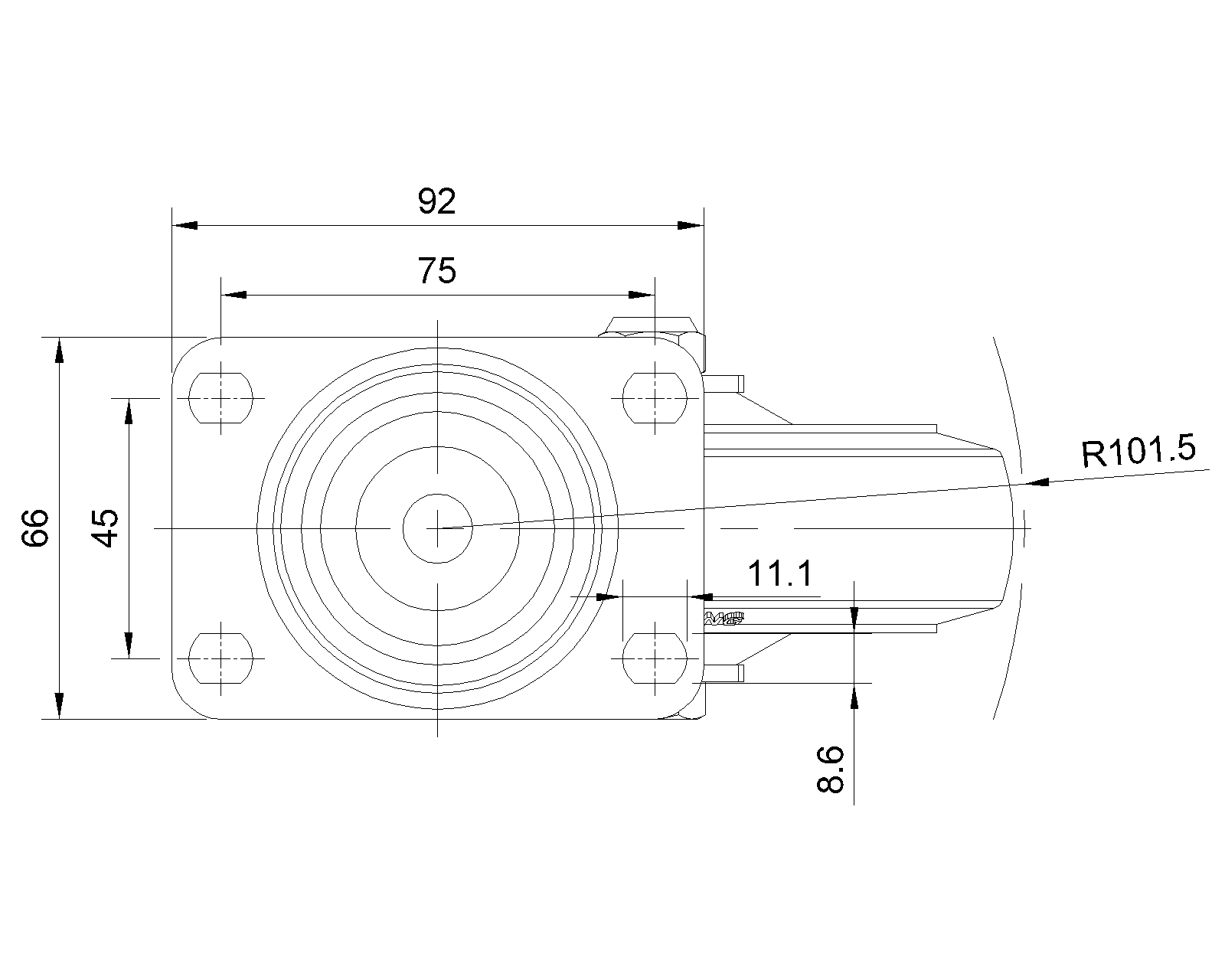

- Plate Size
- 92 x 66mm
- Bolt Hole Spacing
- 75 x 45mm
- Plate Hole
- 11.1 x 8.6mm
- Offset
- 37mm
- Swivel Interference
- 203mm
- Overall Height
- 150mm
- Swivel Radius
- 101.5mm
- Hardness Of Tread
- 72±5° Shore A
- Load Capacity (Dynamic)
- 130kgs
- Load Capacity (Static)
- 195kgs
- Temperature
- -20°C to +60°C
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- N/A
- Anti-Static
- N/A
- Weight
- 3.05kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
