Product Data Sheet |
![]() |
![]() |
![]() |
||
1165-4 1165 Series — AMR/AGV-4 Single Precision Ball Bearing Caster (Medium Duty)Series |
![]() |
![]() |
||||
AQPU (grey round) Wheel Diameter × Wheel Width 125 x 31mm |
![]() |
![]() |
||||
EAN |
![]() |
|||||
KS-11650504602023 |
![]() |
|||||
![]() |
![]() |
|||||

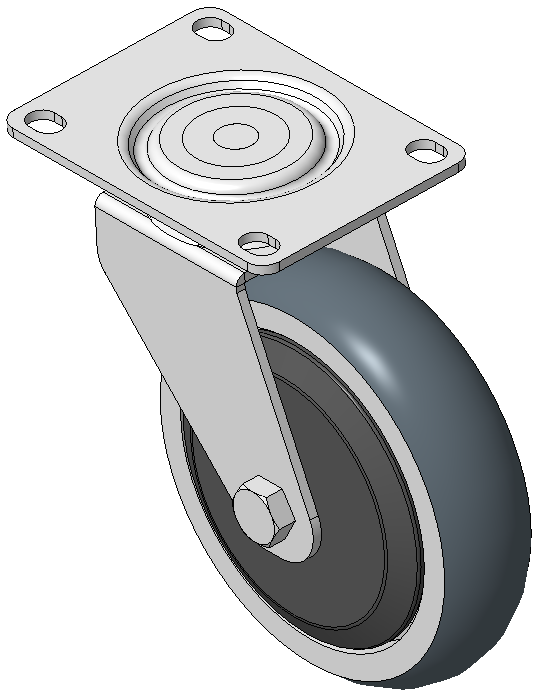

Swivel Caster with Welded Caster Fork Electroplated finish, Mounting Type - Top Plate, 80x60 Bolt Hole Spacing Cast Iron core, High Quality Polyurethane Wheel Tread, Cast Iron gray Bearings—Ball Bearings with special Anti-thread wheel cover |
![]() |
|||||
![]() |
![]() |
|||||

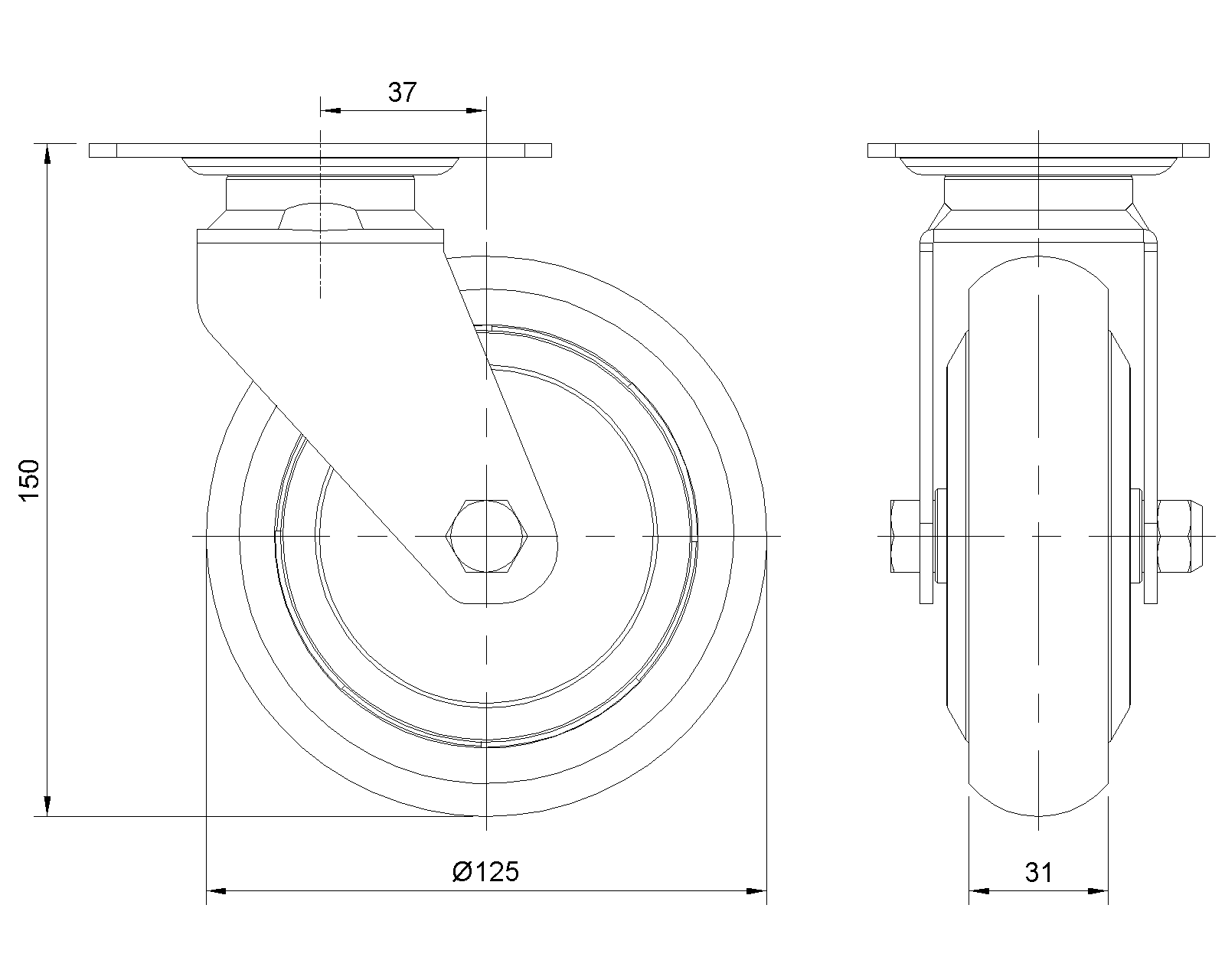

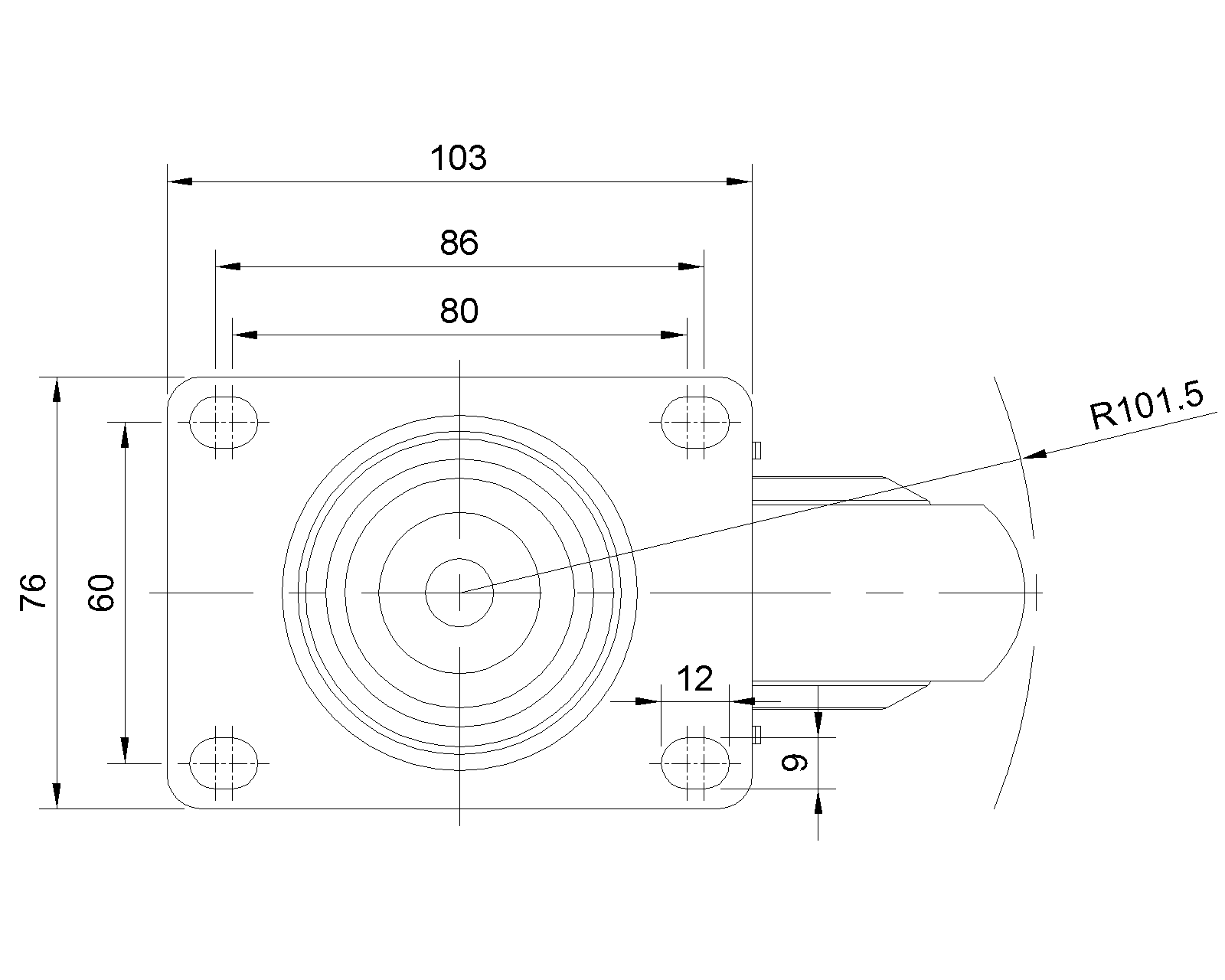

Wheel tread: Made of high-quality polyurethane Wheel Center: iron core/cast iron Drawings are for reference only and may differ from the product |
![]() |
|||||
![]() |
![]() |
|||||
![]() Metric Imperial
Wheel Diameter
125mm
Wheel Width
31mm
|
![]() |
![]() |
||||
Wheel Bearing
Wheels With Ball Bearings
Plate Size
103 x 76mm
Bolt Hole Spacing
80 x 60mm
Plate Hole
12 x 9mm
Offset
37mm
Swivel Interference
203mm
Overall Height
150mm
Swivel Radius
101.5mm
Hardness Of Tread
77±5° Shore A
Load Capacity (Dynamic)
200kgs
|
Rolling Resistance ● ● ● ● ● Operating Noise ● ● ● ● ● Floor Surface Preservation ● ● ● ● ● |
|||||
Load Capacity (Static)
300kgs
Temperature
-20°C to +70°C
Fork Type
Swivel Caster
|
![]() |
|||||
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
3.69kgs
Standard
ISO22883
|
![]() |
![]() |
||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
