Product Data Sheet
1165-4 1165 Series — AMR/AGV-4 Single Precision Ball Bearing Caster (Medium Duty)Series
  Resolute Wheel Diameter x Wheel Width 125 x 36mm
  EAN
      KS-11650504452123

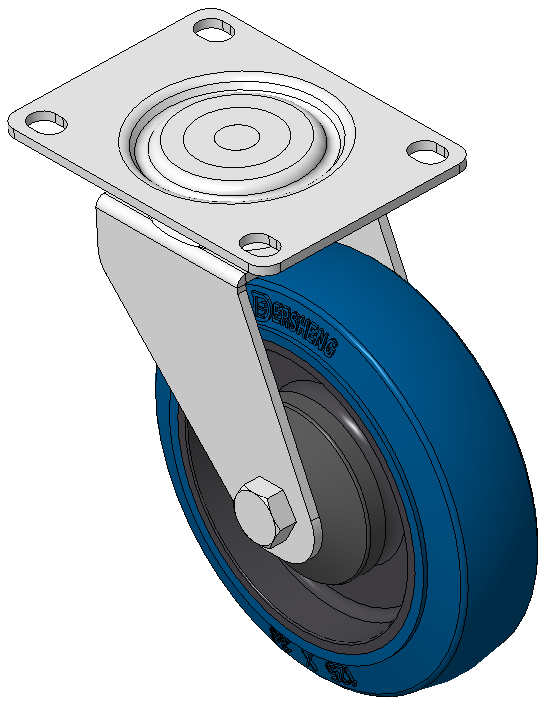

Swivel Caster, Welded Caster Fork, electroplated finish
Mounting Type - Top Plate, 80x60 Bolt Hole Spacing
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Cast Iron dark gray, Bearing—Ball Bearings
  Wheel surface: Thermoplastic elastomer (TPR) wheel surface
  Wheel Center: Polypropylene wheel core

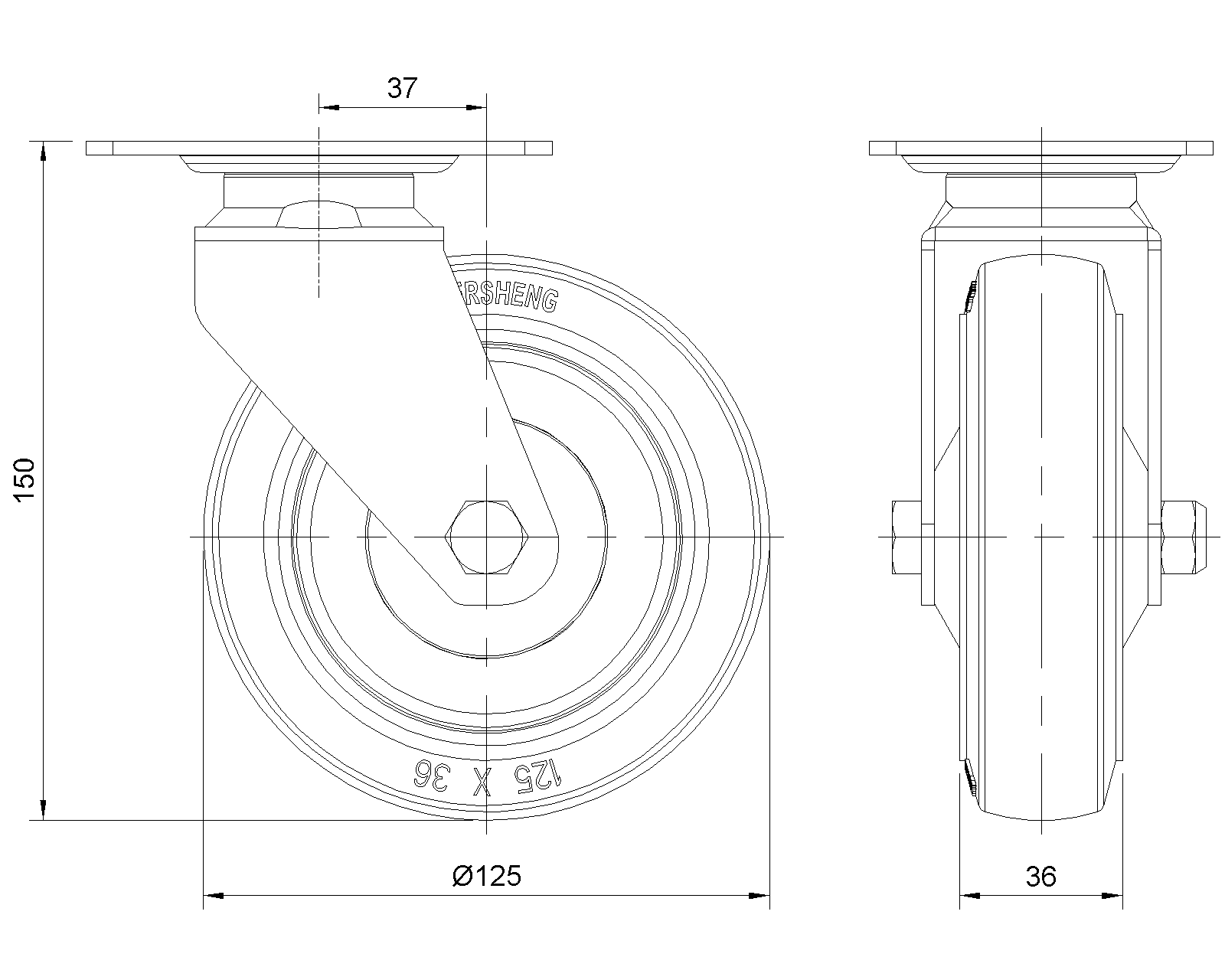

    Drawings are for reference only and may differ from the product




      Metric Imperial
  Wheel Diameter 125mm

  Wheel Width 36mm
  Wheel Bearing Wheels With Ball Bearings

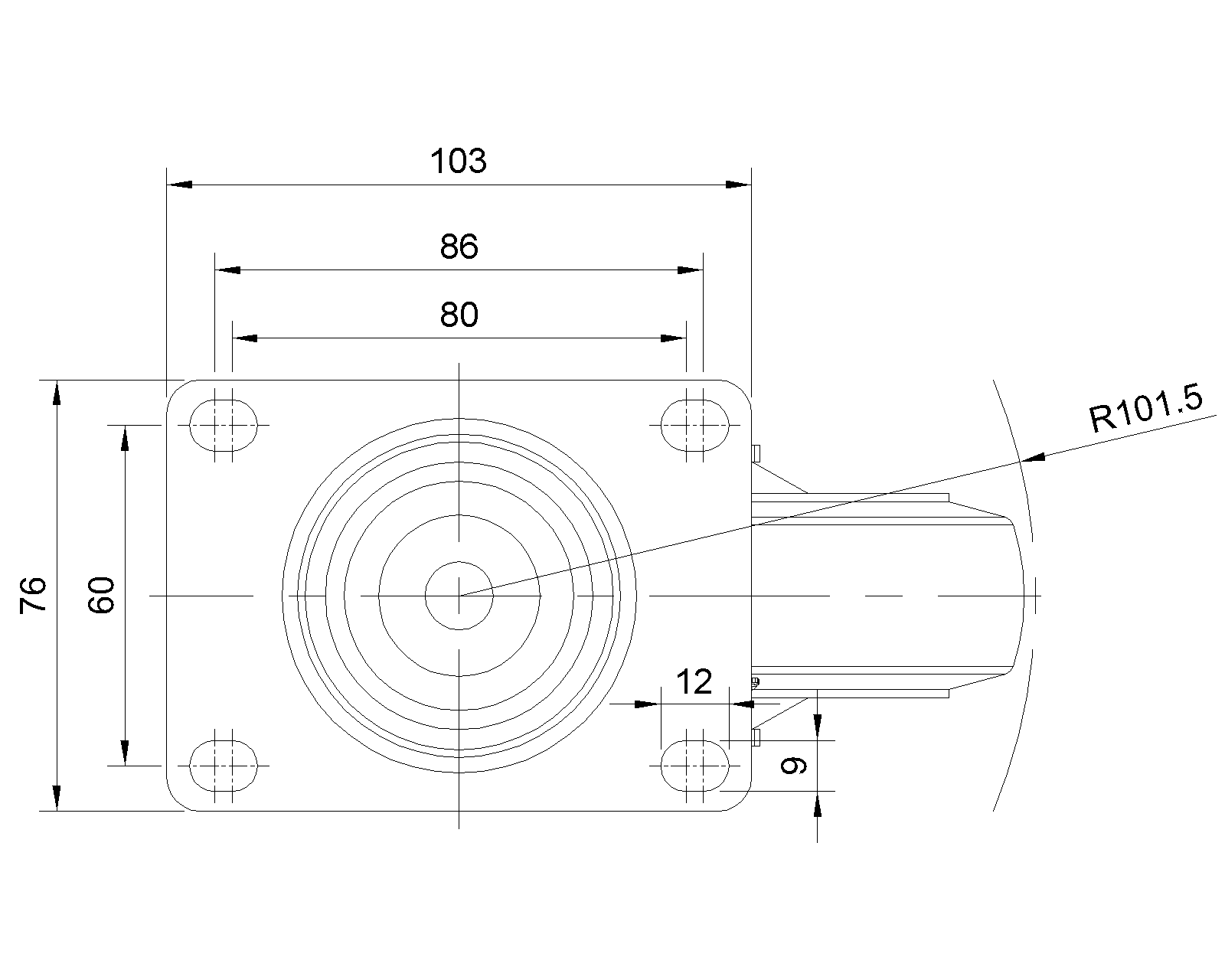

  Plate Size 103 x 76mm
  Bolt Hole Spacing 80 x 60mm
  Plate Hole 12 x 9mm
  Offset 37mm
  Swivel Interference 203mm
  Overall Height 150mm
  Swivel Radius 101.5mm
  Hardness Of Tread 72±5° Shore A
  Load Capacity (Dynamic) 130kgs


  Rolling Resistance
        ● ● ● ● ●

  Operating Noise        ● ● ● ● ●

  Floor Surface Preservation  ● ● ● ● ●

  Load Capacity (Static) 195kgs
  Temperature -20°C to +60°C
  Fork Type Swivel Caster
  Stainless N/A
  Electrical Conductivity N/A
  Anti-Static N/A
  Weight 3.09kgs
  Standard ISO22883
