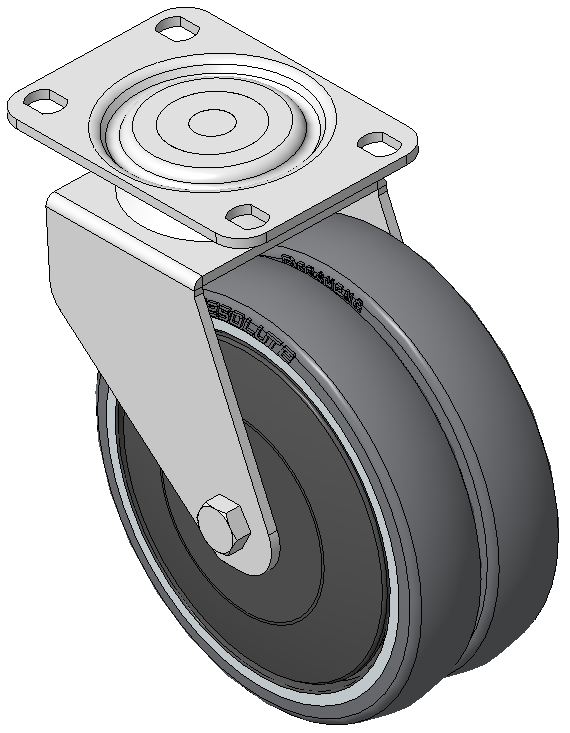

Swivel Caster, Welded Caster Fork, electroplated finish
Mounting Type - Top Plate, 75x45 Bolt Hole Spacing
High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Cast Iron light gray, Bearing—Ball Bearings
Wheel Center: Polypropylene wheel core

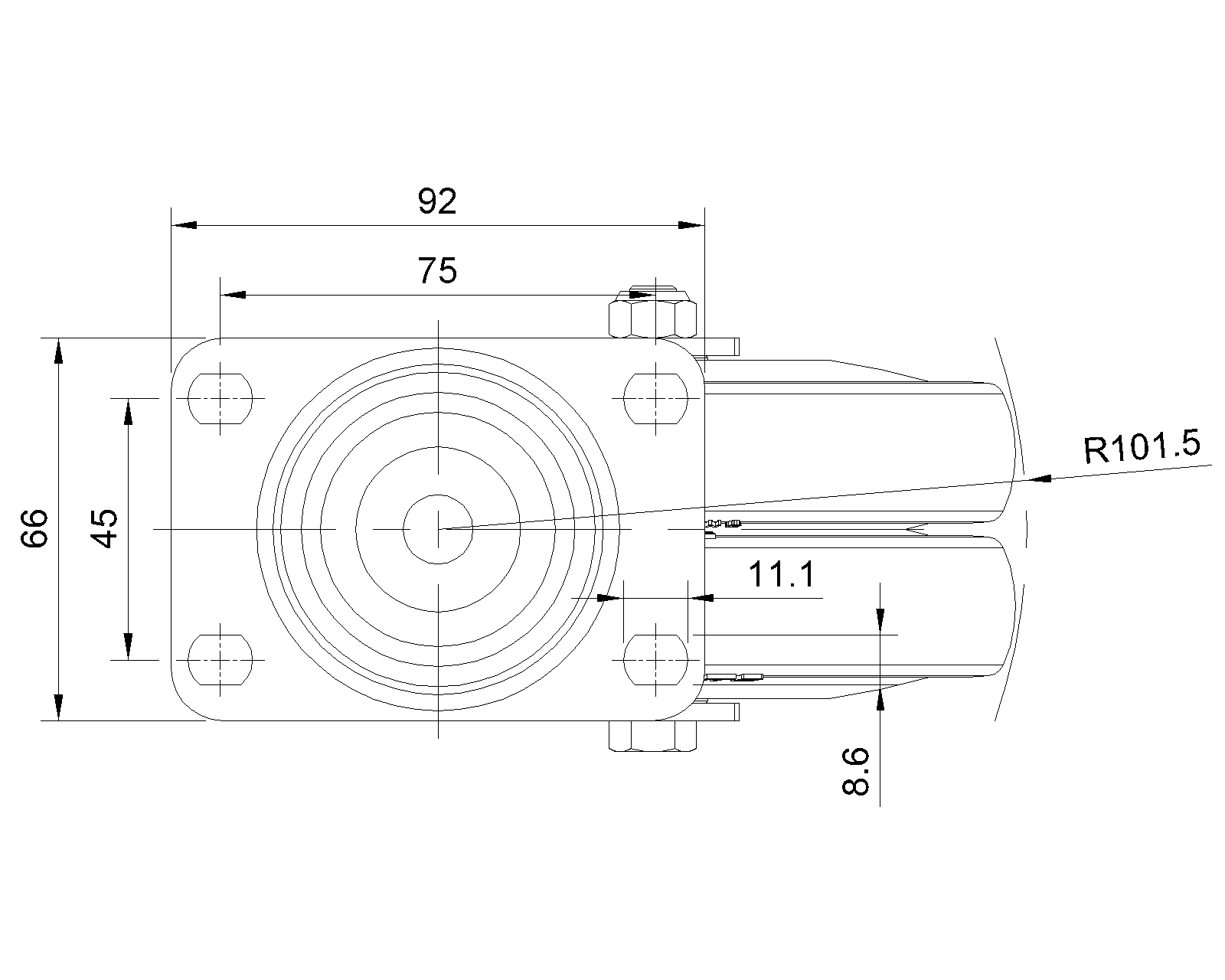

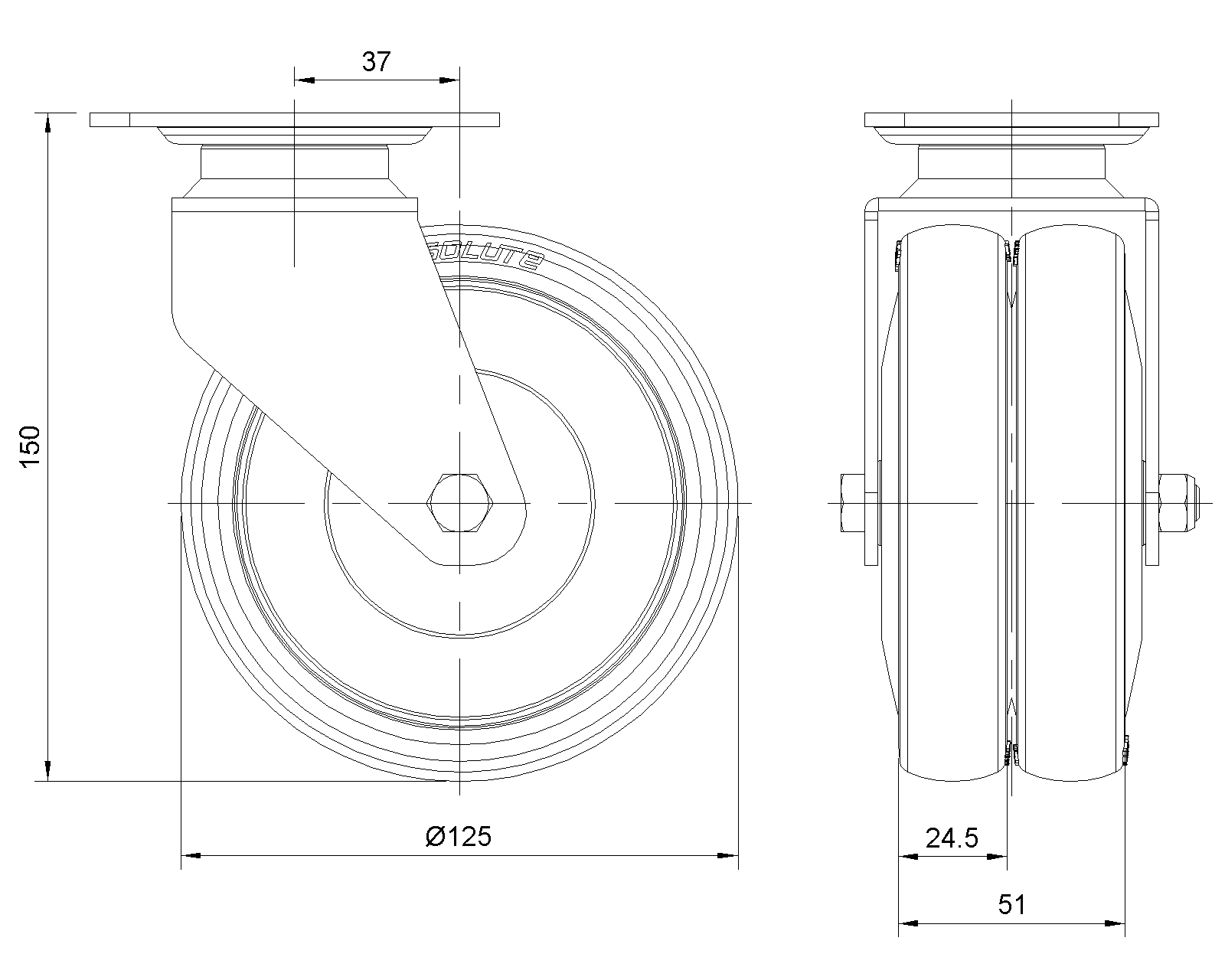

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
24.5mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
92 x 66mm
Bolt Hole Spacing
75 x 45mm
Plate Hole
11.1 x 8.6mm
Offset
37mm
Swivel Interference
203mm
Overall Height
150mm
Swivel Radius
101.5mm
Hardness Of Tread
87±5° Shore A
Load Capacity (Dynamic)
85kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
127.5kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
Y 10^3/～10^4/Ω
Anti-Static
N/A
Weight
2.24kgs
Standard
ISO22883
