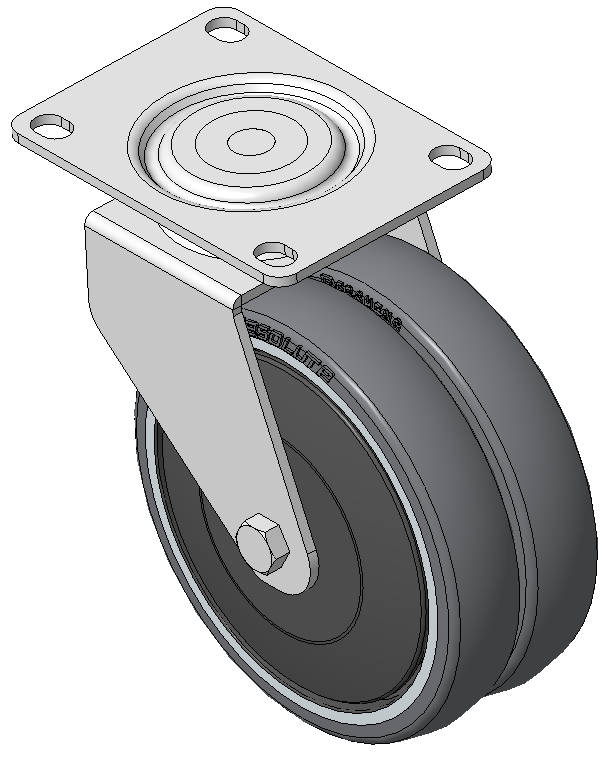

Picture may differ from original product
1165-4 1165 Series — AMR/AGV-4 Single Precision Ball Bearing Caster (Medium Duty)Series
PPR Conductive Wheel (Black Light Gray) Wheel Diameter × Wheel Width 125 × 24.5mm
KS-11650504172323
Wheel Diameter125mm
Load Capacity (Dynamic)85kgs
Overall Height150mm
Wheel BearingWheels With Ball Bearings
Product descriptions are for reference only. The actual product shall prevail.

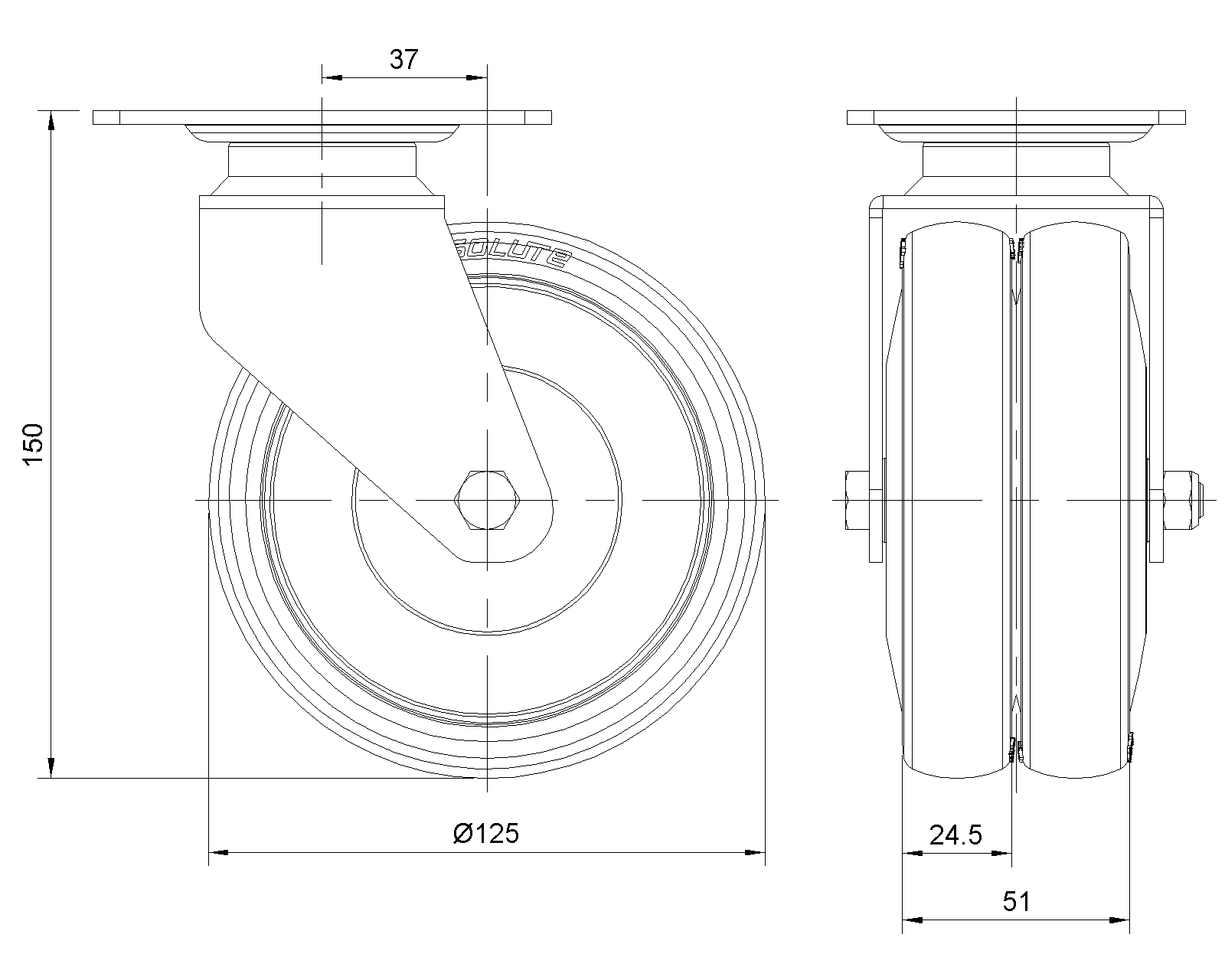

3D drawings are for members only. Please log in to download.
Product Data Sheet
- Wheel Diameter
- 125mm
- Wheel Width
- 24.5mm
- Wheel Bearing
- Wheels With Ball Bearings

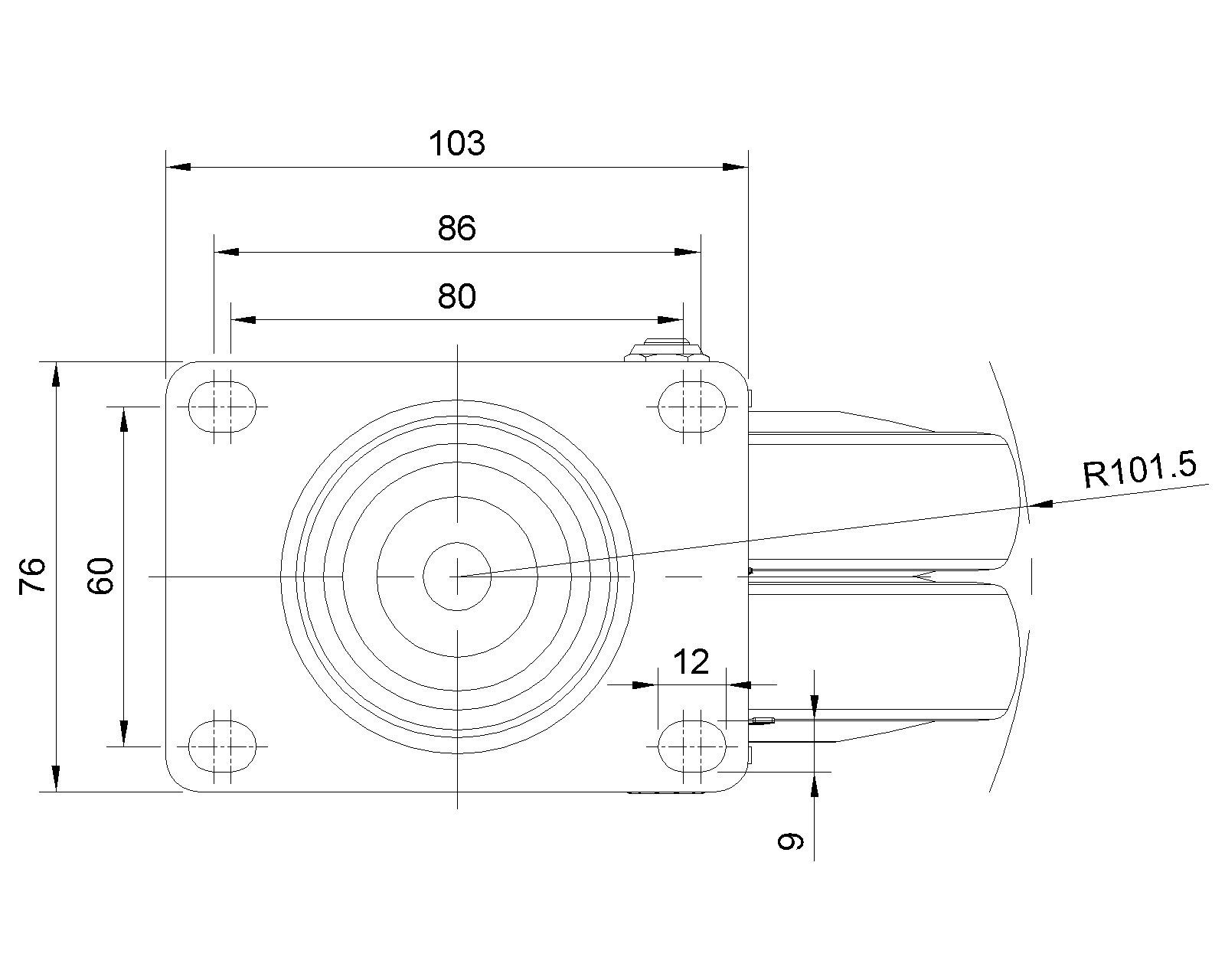

- Plate Size
- 103 x 76mm
- Bolt Hole Spacing
- 80 x 60mm
- Plate Hole
- 12 x 9mm
- Offset
- 37mm
- Swivel Interference
- 203mm
- Overall Height
- 150mm
- Swivel Radius
- 101.5mm
- Hardness Of Tread
- 87±5° Shore A
- Load Capacity (Dynamic)
- 85kgs
- Load Capacity (Static)
- 127.5kgs
- Temperature
- -20°C to +60°C
- Fork Type
- Swivel Caster
- Stainless
- N/A
- Electrical Conductivity
- Y 10^3/～10^4/Ω
- Anti-Static
- N/A
- Weight
- 2.28kgs
- Standard
- ISO22883
* For any deviation between metric and imperial spec, please refer to the metric spec.
